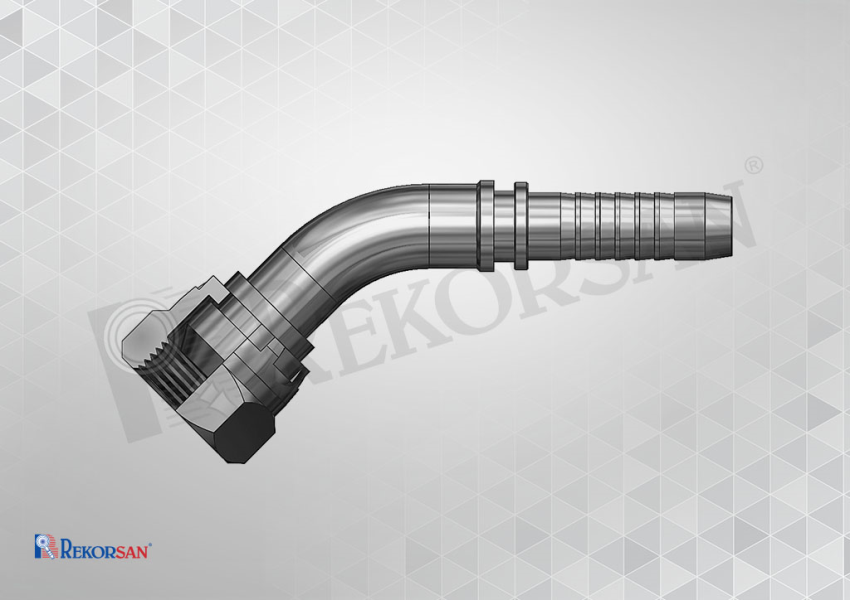

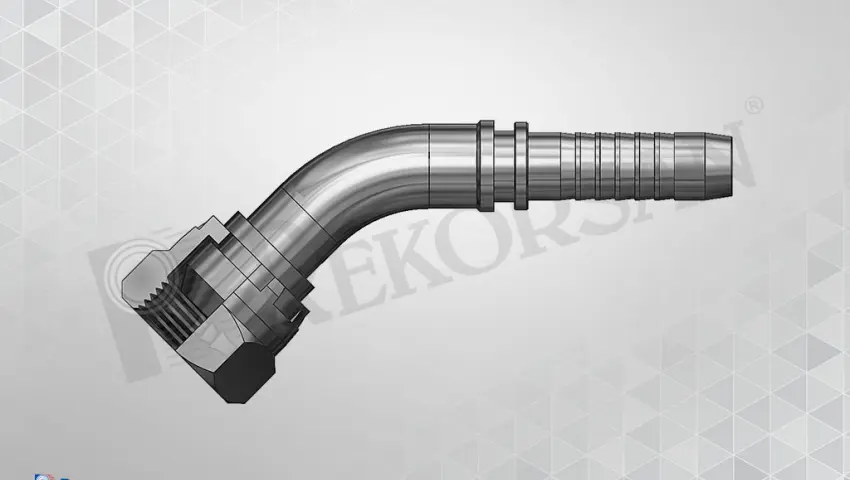

BSP SOMUNLU 45º HORTUM RAKORU
BSP SOMUNLU 45º HORTUM RAKORU
| BSP SOMUNLU 45° HORTUM RAKORLARI BSP FEMALE 45° ELBOW SWIVEL HOSE FITTINGS | ||||||||

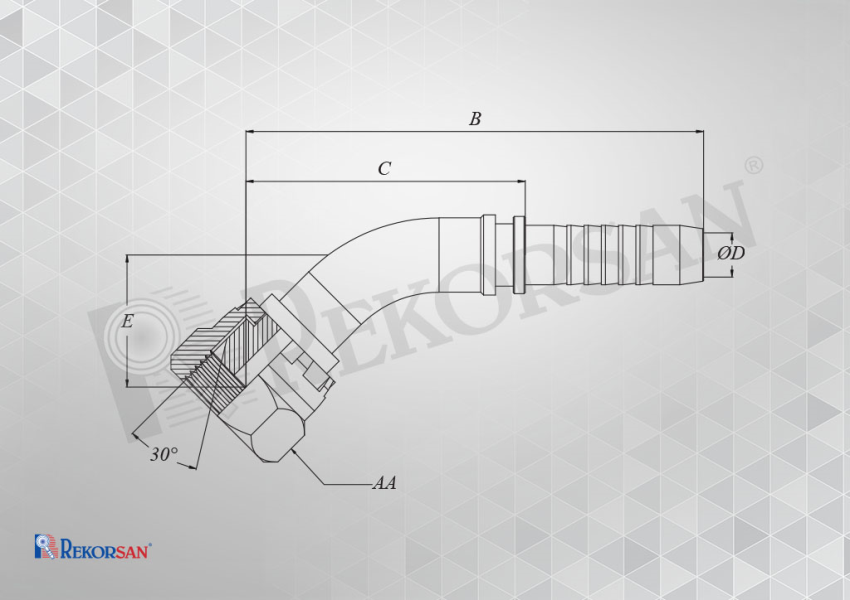

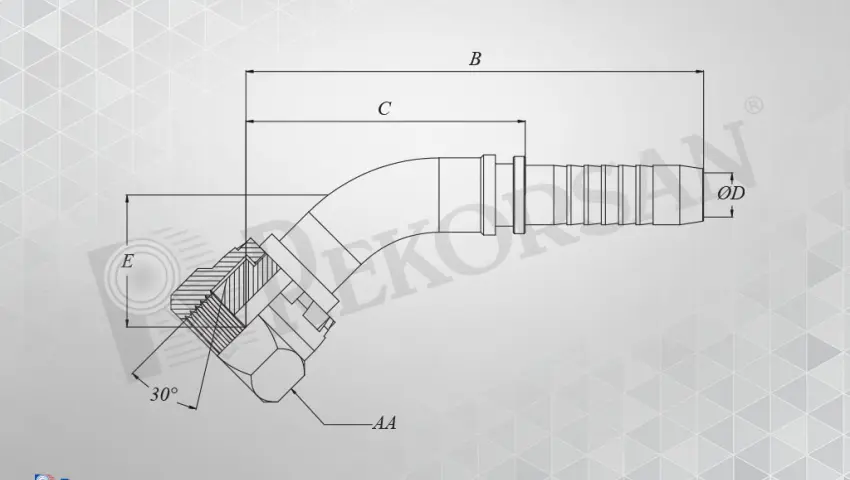

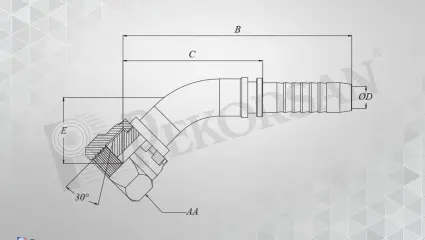

| MALZEME KODU MATERIAL CODE | HORTUM ÖLÇÜSÜ HOSE SIZE | SOMUN ÖLÇÜSÜ NUT SIZE | B | C | E | ØD | AA | |
| mm | inch | |||||||
| RK-0510-RS45 | 05 | 3/16 | R1/8-28 | 53 | 32 | 13 | 3.2 | 14 |
| RK-0513-RS45 | 05 | 3/16 | R1/4-19 | 59 | 39 | 16 | 3.2 | 17 |
| RK-0610-RS45 | 06 | 1/4 | R1/8-28 | 60 | 35 | 14 | 4 | 14 |
| RK-0613-RS45 | 06 | 1/4 | R1/4-19 | 61 | 36 | 15 | 4 | 17 |
| RK-0617-RS45 | 06 | 1/4 | R3/8-19 | 62 | 37 | 17 | 4 | 22 |
| RK-0621-RS45 | 06 | 1/4 | R1/2-14 | 68 | 43 | 21 | 4 | 27 |
| RK-0813-RS45 | 08 | 5/16 | R1/4-19 | 67 | 40 | 18 | 5.5 | 17 |
| RK-0817-RS45 | 08 | 5/16 | R3/8-19 | 67 | 40 | 18 | 5.5 | 22 |
| RK-0821-RS45 | 08 | 5/16 | R1/2-14 | 69 | 42 | 22 | 5.5 | 27 |
| RK-1017-RS45 | 10 | 3/8 | R3/8-19 | 75 | 45 | 20 | 7 | 22 |
| RK-1021-RS45 | 10 | 3/8 | R1/2-14 | 79 | 49 | 24 | 7 | 27 |
| RK-1317-RS45 | 12 | 1/2 | R3/8-19 | 85 | 52 | 24 | 9 | 22 |
| RK-1321-RS45 | 12 | 1/2 | R1/2-14 | 83 | 59 | 25 | 9 | 27 |
| RK-1623-RS45 | 16 | 5/8 | R5/8-14 | 98 | 58 | 28 | 12 | 30 |
| RK-1626-RS45 | 16 | 5/8 | R3/4-14 | 103 | 63 | 30 | 12 | 32 |
| RK-1926-RS45 | 19 | 3/4 | R3/4-14 | 108 | 64 | 32 | 14 | 32 |
| RK-2533-RS45 | 25 | 1" | R1"-11 | 140 | 85 | 33 | 19 | 41 |
| RK-3242-RS45 | 32 | 1"1/4 | R1"1/4-11 | 165 | 105 | 44 | 25 | 50 |
| RK-3848-RS45 | 38 | 1"1/2 | R1"1/2-11 | 185 | 115 | 47 | 29 | 55 |
| RK-5060-RS45 | 50 | 2" | R2" | 150 | 90 | 35 | 41 | 70 |
| RK-6475-RS45 | 64 | 2"1/2 | R2"1/2 | 190 | 120 | 50 | 54 | 90 |
| RK-7688-RS45 | 76 | 3" | R3" | 210 | 140 | 50 | 68 | 96 |
