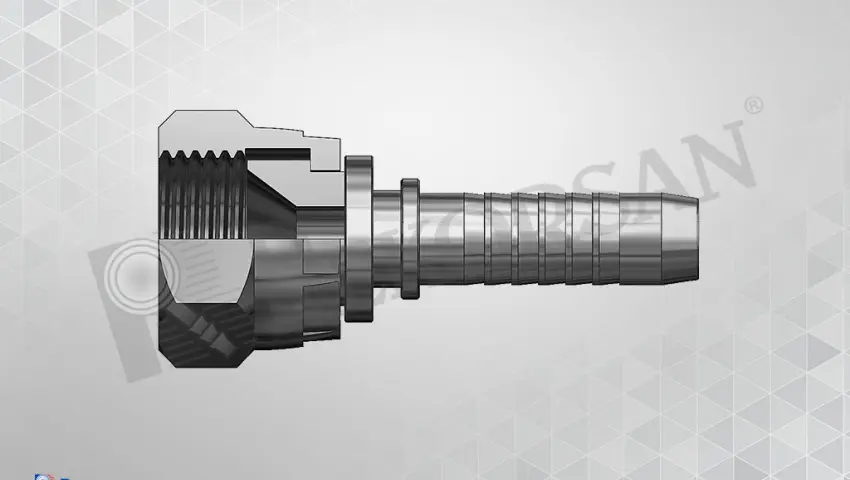

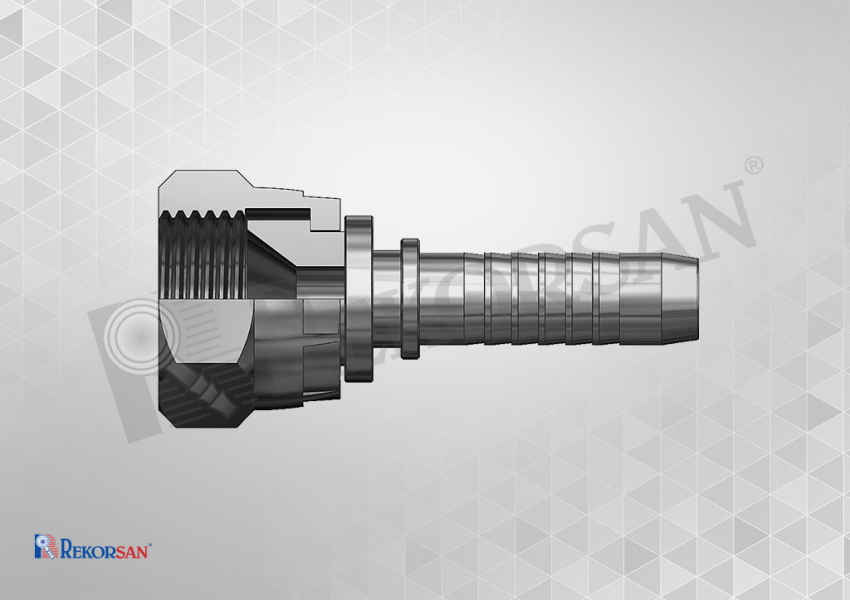

BSP İÇE HAVŞA SOMUNLU DÜZ HORTUM RAKORU
BSP İÇE HAVŞA SOMUNLU DÜZ HORTUM RAKORU

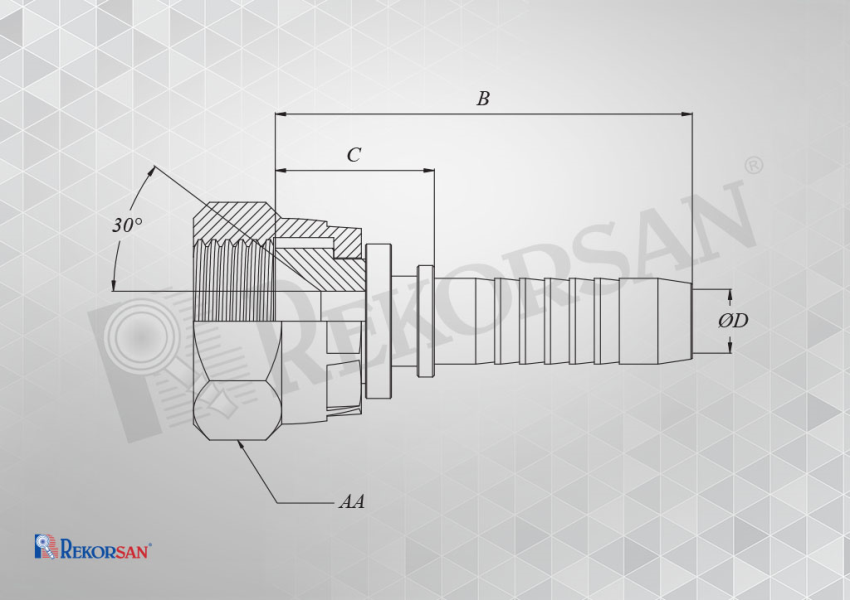

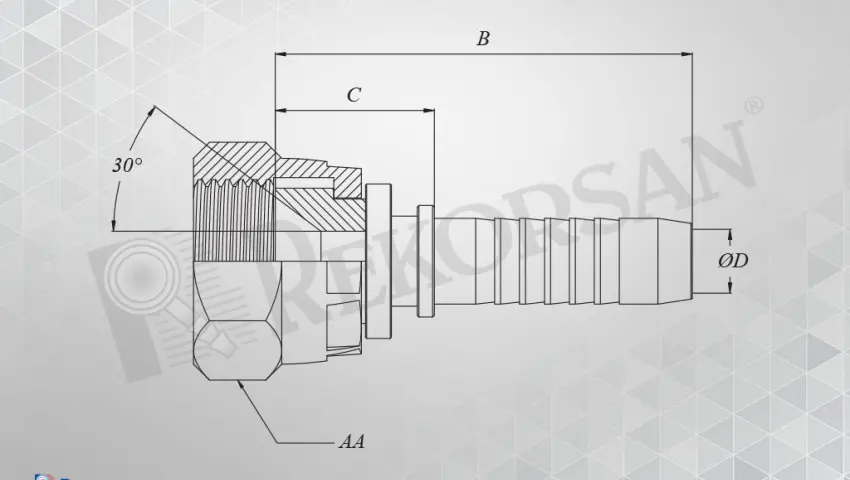

| BSP İÇE HAVŞA SOMUNLU DÜZ HORTUM RAKORLARI BSP FEMALE 30° FLARE STRAIGHT SWIVEL HOSE FITTINGS | |||||||
| MALZEME KODU MATERIAL CODE | HORTUM ÖLÇÜSÜ HOSE SIZE | SOMUN ÖLÇÜSÜ NUT SIZE | B | C | ØD | AA | |
| mm | inch | ||||||
| RK-0613-RİSD | 06 | 1/4 | R1/4-19 | 40.5 | 15.5 | 4 | 17 |
| RK-0617-RİSD | 06 | 1/4 | R3/8-19 | 42.5 | 17.5 | 4 | 22 |
| RK-0621-RİSD | 06 | 1/4 | R1/2-14 | 43.5 | 18.5 | 4 | 27 |
| RK-0817-RİSD | 08 | 5/16 | R3/8-19 | 44 | 17 | 5.5 | 22 |
| RK-0821-RİSD | 08 | 5/16 | R1/2-14 | 46 | 19 | 5.5 | 27 |
| RK-1017-RİSD | 10 | 3/8 | R3/8-19 | 47 | 17 | 7 | 22 |
| RK-1021-RİSD | 10 | 3/8 | R1/2-14 | 48 | 18 | 7 | 27 |
| RK-1321-RİSD | 12 | 1/2 | R1/2-14 | 52 | 19 | 9 | 27 |
| RK-1626-RİSD | 16 | 5/8 | R3/4-14 | 62.5 | 22.5 | 12 | 32 |
| RK-1926-RİSD | 19 | 3/4 | R3/4-14 | 67 | 23 | 14 | 32 |
| RK-2533-RİSD | 25 | 1" | R1"-11 | 81 | 27 | 19 | 41 |
| RK-3242-RİSD | 32 | 1"1/4 | R1"1/4-11 | 88 | 28.5 | 25 | 50 |
| RK-3848-RİSD | 38 | 1"1/2 | R1"1/2-11 | 105.5 | 33.5 | 29 | 55 |
