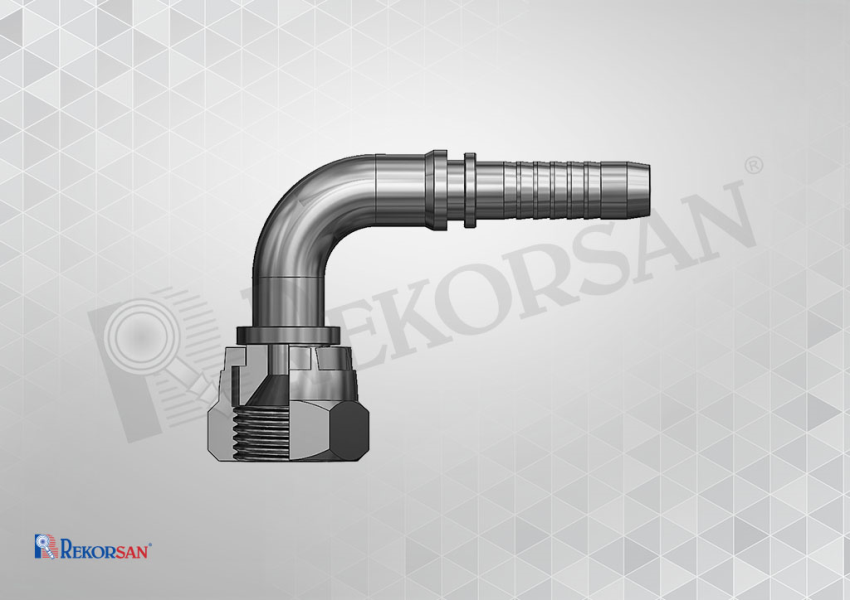

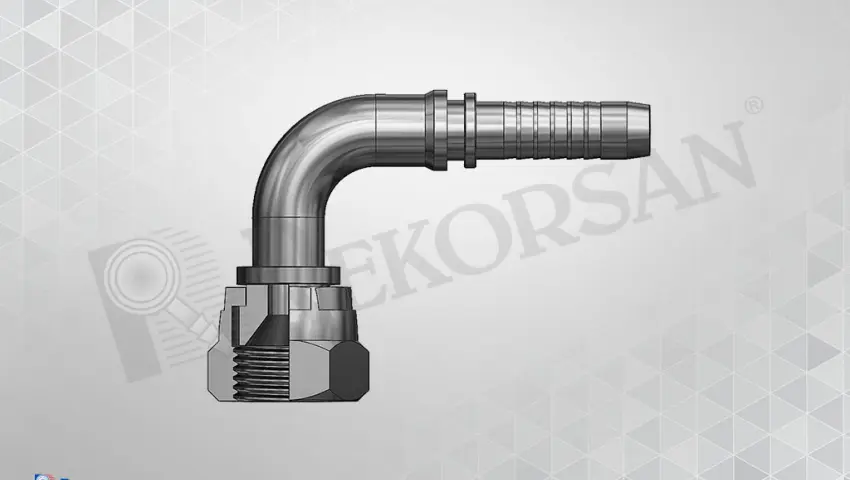

BSP İÇE HAVŞA SOMUNLU 90º HORTUM RAKORU
BSP İÇE HAVŞA SOMUNLU 90º HORTUM RAKORU
| BSP İÇE HAVŞA SOMUNLU 90° HORTUM RAKORLARI BSP FEMALE 30° FLARE 90° ELBOW SWIVEL HOSE FITTINGS | ||||||||

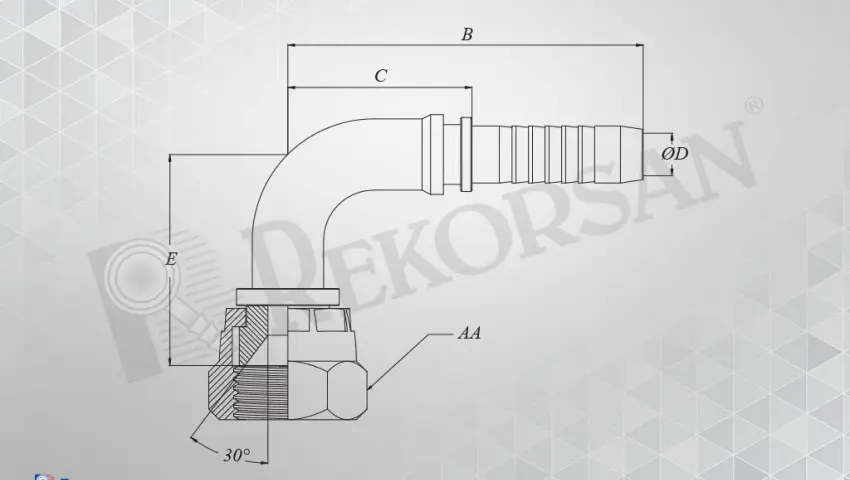

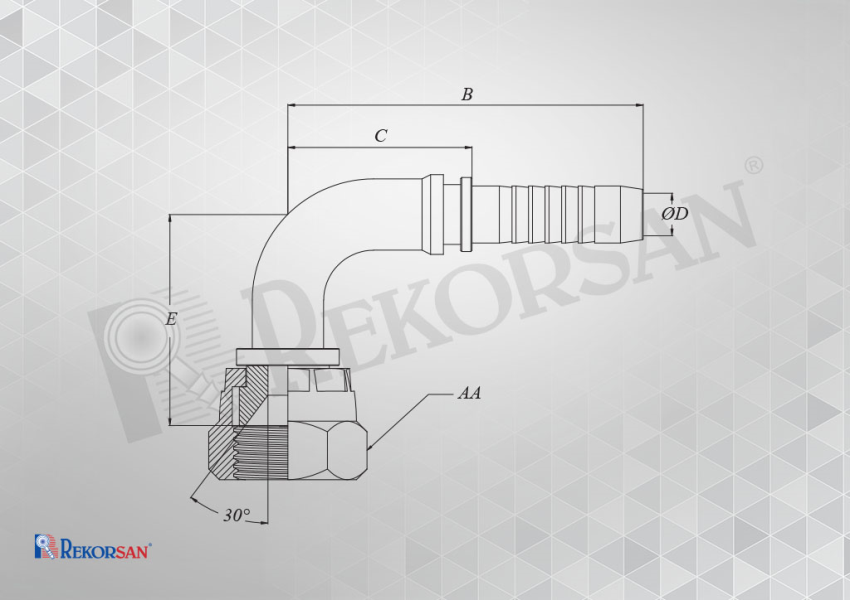

| MALZEME KODU MATERIAL CODE | HORTUM ÖLÇÜSÜ HOSE SIZE | SOMUN ÖLÇÜSÜ NUT SIZE | B | C | E | ØD | AA | |
| mm | inch | |||||||
| RK-0613-RİS90 | 06 | 1/4 | R1/4-19 | 50 | 25 | 27 | 4 | 17 |
| RK-0617-RİS90 | 06 | 1/4 | R3/8-19 | 50 | 25 | 29 | 4 | 22 |
| RK-0621-RİS90 | 06 | 1/4 | R1/2-14 | 50 | 25 | 31 | 4 | 27 |
| RK-0817-RİS90 | 08 | 5/16 | R3/8-19 | 55 | 28 | 30 | 5.5 | 22 |
| RK-0821-RİS90 | 08 | 5/16 | R1/2-14 | 55 | 28 | 32 | 5.5 | 27 |
| RK-1017-RİS90 | 10 | 3/8 | R3/8-19 | 61.5 | 32.5 | 33 | 7 | 22 |
| RK-1021-RİS90 | 10 | 3/8 | R1/2-14 | 61.5 | 32.5 | 37 | 7 | 27 |
| RK-1321-RİS90 | 12 | 1/2 | R1/2-14 | 69.5 | 37.5 | 37 | 9 | 27 |
| RK-1626-RİS90 | 16 | 5/8 | R3/4-14 | 84 | 45 | 54 | 12 | 32 |
| RK-1926-RİS90 | 19 | 3/4 | R3/4-14 | 100 | 57 | 51 | 14 | 32 |
| RK-2533-RİS90 | 25 | 1" | R1"-11 | 122 | 69 | 66 | 19 | 41 |
| RK-3242-RİS90 | 32 | 1"1/4 | R1"1/4-11 | 140 | 80 | 87 | 25 | 50 |
| RK-3848-RİS90 | 38 | 1"1/2 | R1"1/2-11 | 175 | 105 | 100 | 29 | 55 |
