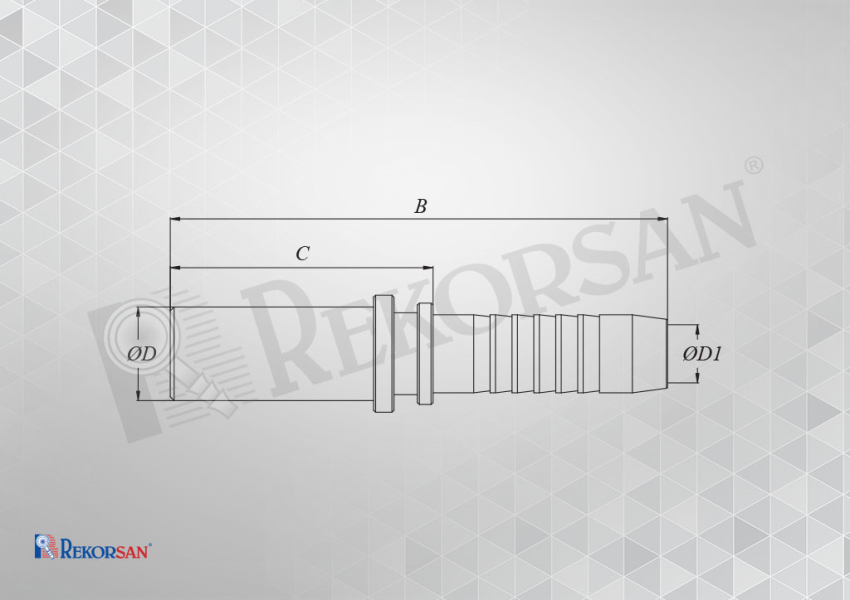

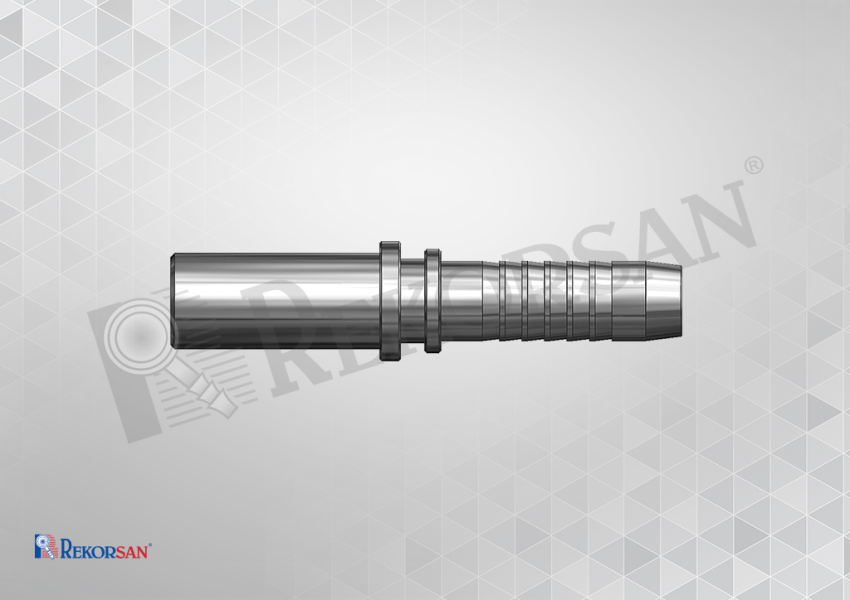

| BORU UÇLU DÜZ HORTUM RAKORU RIGID STANDPIPE HOSE FITTING |
||||||
| MALZEME KODU MATERIAL CODE |
HORTUM ÖLÇÜSÜ HOSE SIZE |
BORU ÇAPI TUBE OD ØD |
B | C | ØD1 | |
| mm | inch | |||||
| RK-0506-BUD | 05 | 3/16 | 6 | 49 | 28.5 | 3.2 |
| RK-0606-BUD | 06 | 1/4 | 6 | 55 | 30 | 4 |
| RK-0608-BUD | 06 | 1/4 | 8 | 55.5 | 30.5 | 4 |
| RK-0610-BUD | 06 | 1/4 | 10 | 55 | 30 | 4 |
| RK-0808-BUD | 08 | 5/16 | 8 | 57 | 30 | 5.5 |
| RK-0810-BUD | 08 | 5/16 | 10 | 57.5 | 30.5 | 5.5 |
| RK-0812-BUD | 08 | 5/16 | 12 | 60.5 | 33.5 | 5.5 |
| RK-1008-BUD | 10 | 3/8 | 8 | 61 | 31 | 7 |
| RK-1010-BUD | 10 | 3/8 | 10 | 61.5 | 31.5 | 7 |
| RK-1012-BUD | 10 | 3/8 | 12 | 63.5 | 33.5 | 7 |
| RK-1312-BUD | 12 | 1/2 | 12 | 68 | 35.5 | 9 |
| RK-1316-BUD | 12 | 1/2 | 16 | 71 | 38.5 | 9 |
