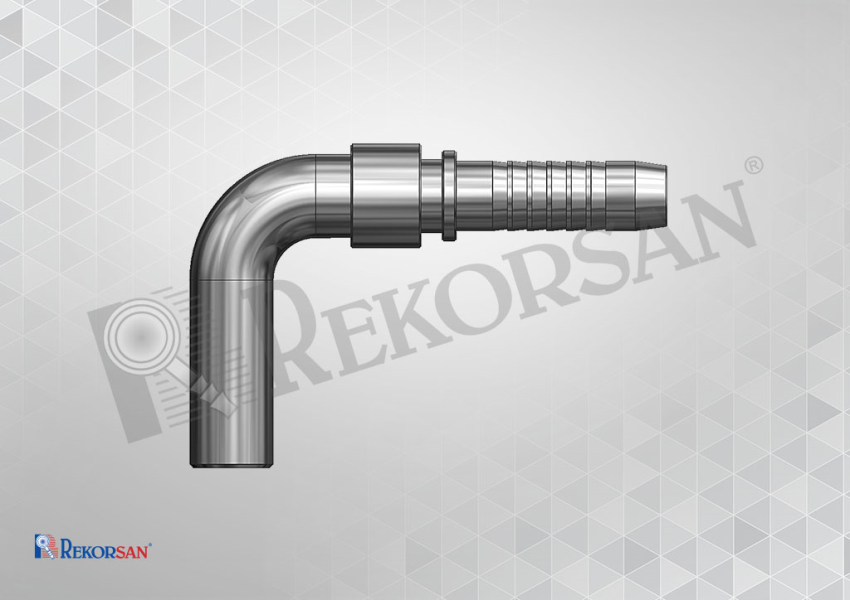

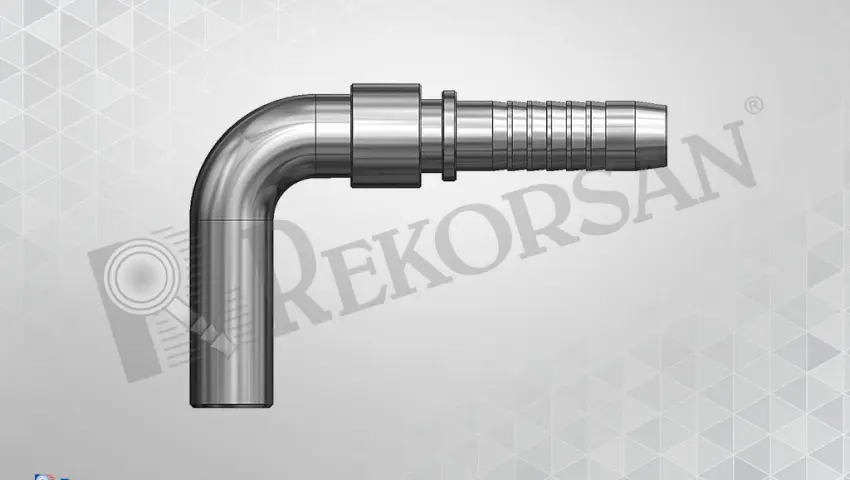

BORU UÇLU 90° HORTUM RAKORU
BORU UÇLU 90° HORTUM RAKORU

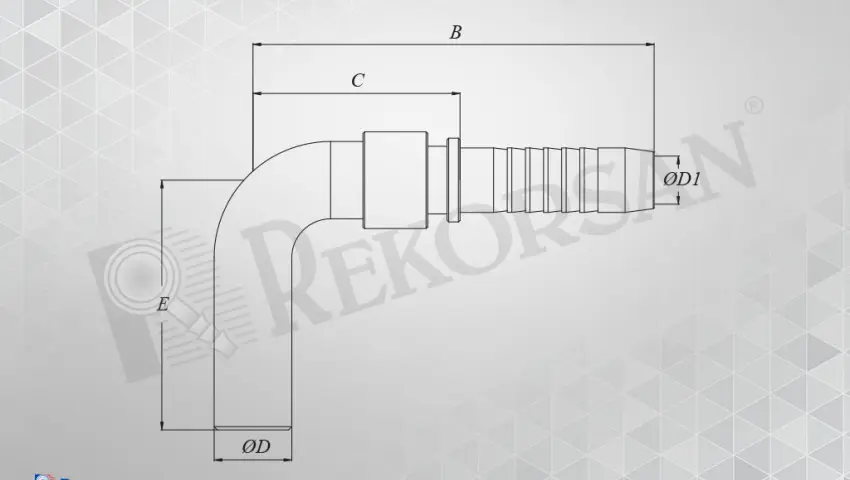

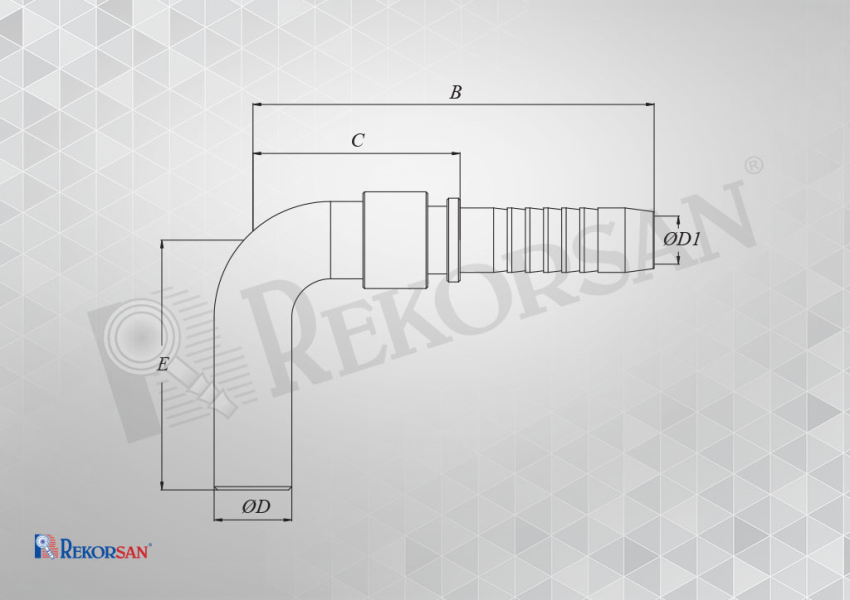

| BORU UÇLU 90° HORTUM RAKORU STANDPIPE 90° ELBOW HOSE FITTING | |||||||
| MALZEME KODU MATERIAL CODE | HORTUM ÖLÇÜSÜ HOSE SIZE | BORU ÇAPI TUBE OD ØD | B | C | E | ØD1 | |
| mm | inch | ||||||
| RK-0506-BU90 | 05 | 3/16 | 6 | 46 | 25 | 31 | 3.2 |
| RK-0606-BU90 | 06 | 1/4 | 6 | 52 | 27 | 31 | 4 |
| RK-0608-BU90 | 06 | 1/4 | 8 | 52 | 27 | 34 | 4 |
| RK-0610-BU90 | 06 | 1/4 | 10 | 53 | 28 | 36 | 4 |
| RK-0808-BU90 | 08 | 5/16 | 8 | 53 | 26 | 34 | 5.5 |
| RK-0810-BU90 | 08 | 5/16 | 10 | 52 | 25 | 35 | 5.5 |
| RK-0812-BU90 | 08 | 5/16 | 12 | 58 | 31 | 43 | 5.5 |
| RK-1008-BU90 | 10 | 3/8 | 8 | 57 | 27 | 34 | 7 |
| RK-1010-BU90 | 10 | 3/8 | 10 | 59 | 28 | 35 | 7 |
| RK-1012-BU90 | 10 | 3/8 | 12 | 63 | 33 | 41 | 7 |
| RK-1312-BU90 | 12 | 1/2 | 12 | 66 | 33 | 42 | 9 |
| RK-1316-BU90 | 12 | 1/2 | 16 | 73 | 40 | 48 | 9 |
