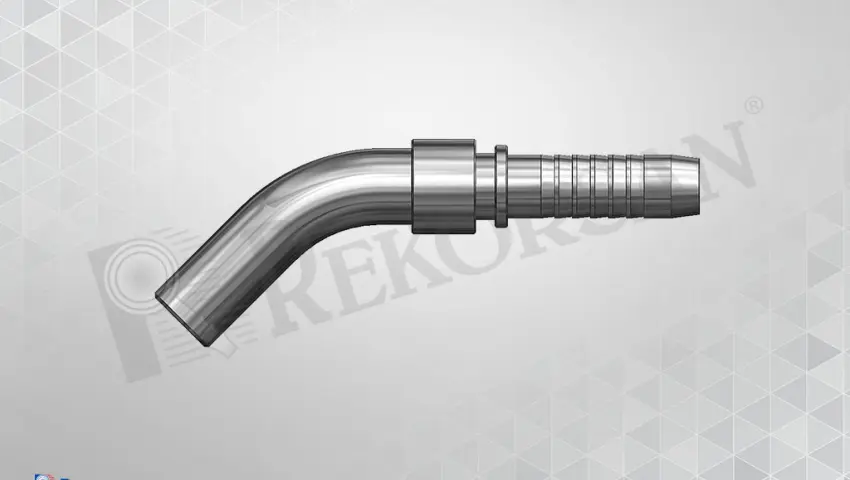

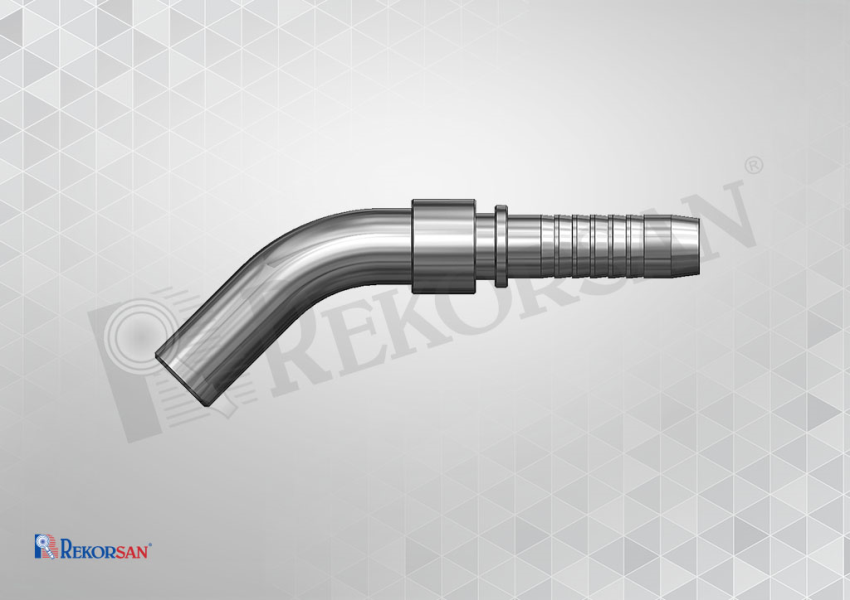

BORU UÇLU 45° HORTUM RAKORU
BORU UÇLU 45° HORTUM RAKORU
| BORU UÇLU 45° HORTUM RAKORU STANDPIPE 45° ELBOW HOSE FITTING | |||||||

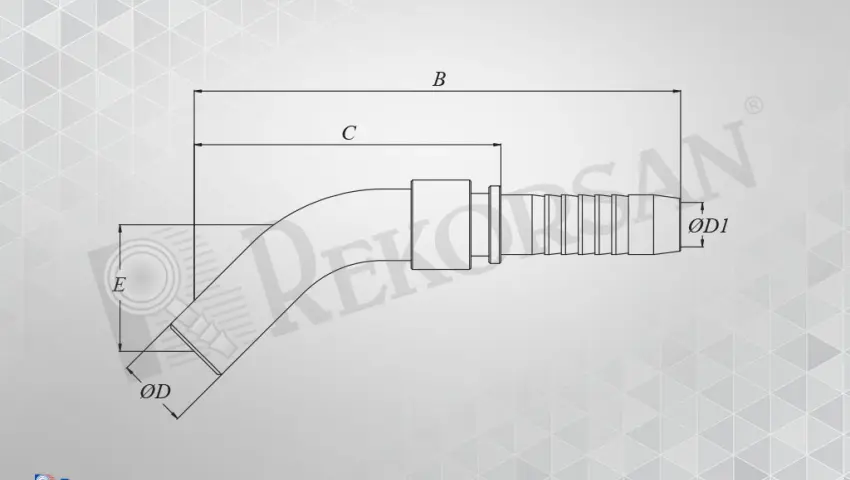

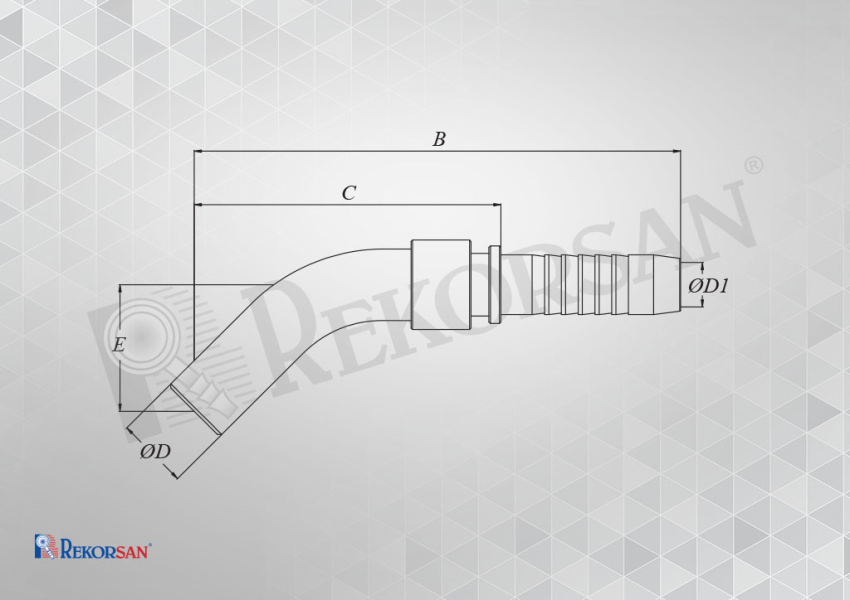

| MALZEME KODU MATERIAL CODE | HORTUM ÖLÇÜSÜ HOSE SIZE | BORU ÇAPI TUBE OD ØD | B | C | E | ØD1 | |
| mm | inch | ||||||
| RK-0506-BU45 | 05 | 3/16 | 6 | 62.5 | 42 | 20 | 3.2 |
| RK-0606-BU45 | 06 | 1/4 | 6 | 69.5 | 44.5 | 20 | 4 |
| RK-0608-BU45 | 06 | 1/4 | 8 | 71 | 45.5 | 21 | 4 |
| RK-0610-BU45 | 06 | 1/4 | 10 | 72 | 47 | 21 | 4 |
| RK-0808-BU45 | 08 | 5/16 | 8 | 73 | 45.5 | 21 | 5.5 |
| RK-0810-BU45 | 08 | 5/16 | 10 | 74 | 47 | 21 | 5.5 |
| RK-0812-BU45 | 08 | 5/16 | 12 | 77 | 50.5 | 22 | 5.5 |
| RK-1008-BU45 | 10 | 3/8 | 8 | 76 | 45.5 | 21 | 7 |
| RK-1010-BU45 | 10 | 3/8 | 10 | 77 | 47 | 21 | 7 |
| RK-1012-BU45 | 10 | 3/8 | 12 | 80 | 50.5 | 22 | 7 |
| RK-1312-BU45 | 12 | 1/2 | 12 | 83.5 | 50.5 | 22 | 9 |
| RK-1316-BU45 | 12 | 1/2 | 16 | 91.5 | 59 | 27 | 9 |
