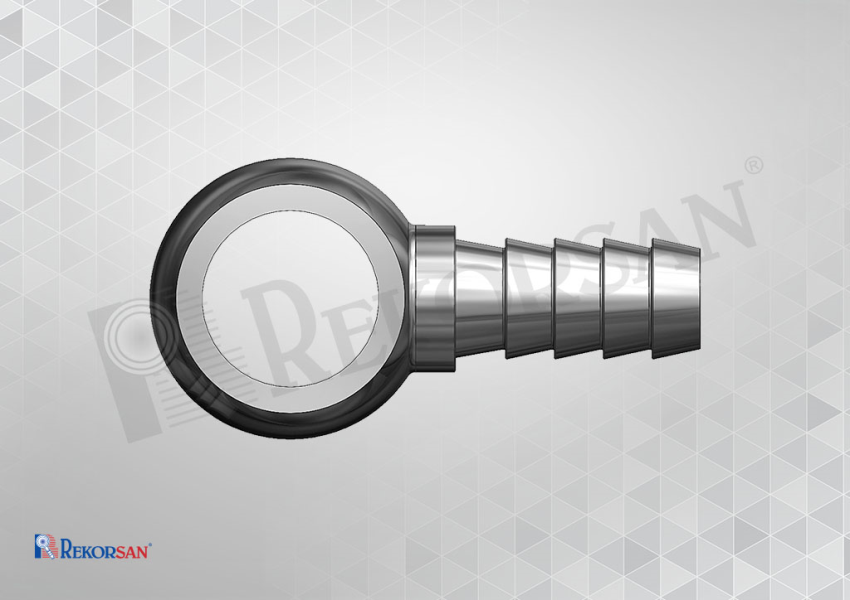

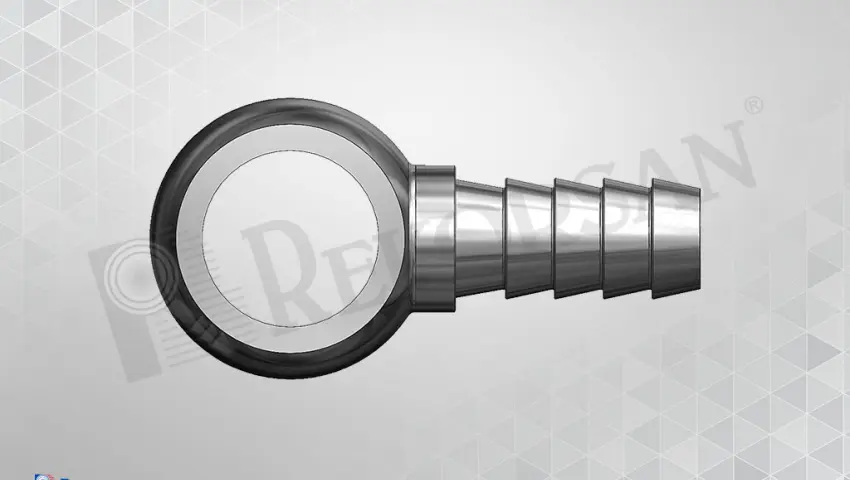

SAÇ SOKET SIKMALI HALKA RAKORU
SAÇ SOKET SIKMALI HALKA RAKORU
| SAÇ SOKET SIKMALI HALKA BANJO FITTING | |||||||

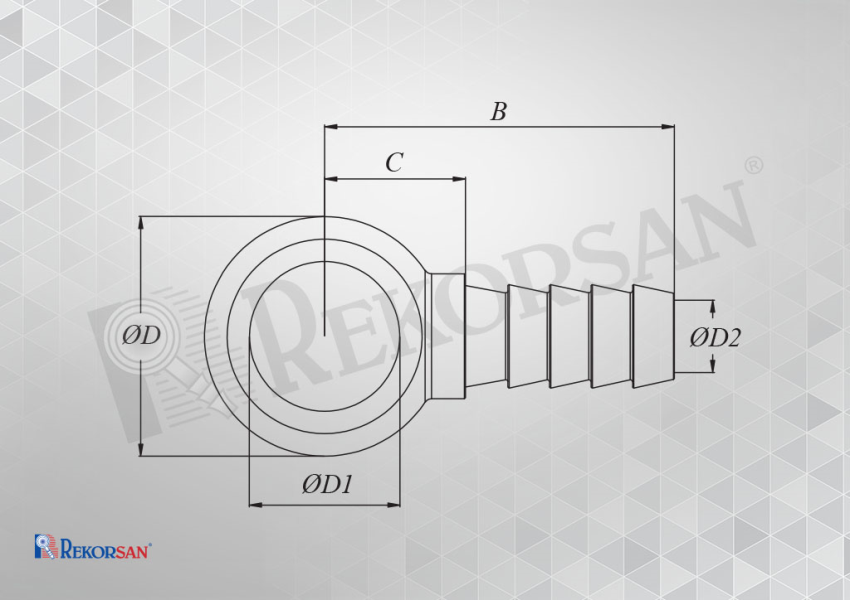

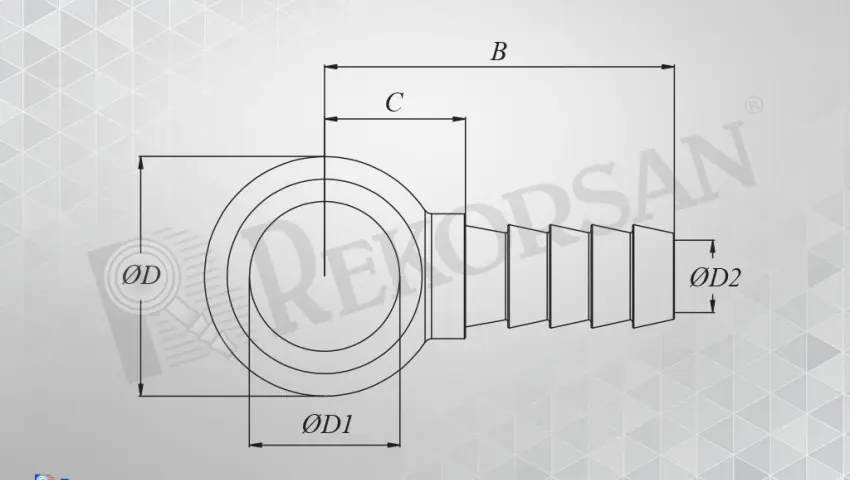

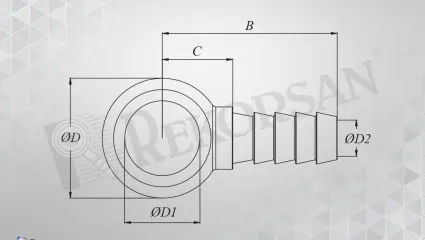

| MALZEME KODU MATERIAL CODE | HORTUM ÖLÇÜSÜ HOSE SIZE | ØD1 | B | C | ØD | ØD2 | |
| mm | inch | ||||||
| RK-0508-HB | 05 | 3/16 | 8 | 26.5 | 9 | 14 | 3.2 |
| RK-0510-HB | 05 | 3/16 | 10 | 28.5 | 11 | 18 | 3.2 |
| RK-0610-HB | 06 | 1/4 | 10 | 30.5 | 11 | 18 | 4 |
| RK-0612-HB | 06 | 1/4 | 12 | 31.5 | 13 | 20 | 4 |
| RK-0812-HB | 08 | 5/16 | 12 | 33 | 13 | 20 | 5.5 |
| RK-0813-HB | 08 | 5/16 | 13 | 33 | 13 | 22 | 5.5 |
| RK-0814-HB | 08 | 5/16 | 14 | 37 | 14 | 24 | 5.5 |
| RK-1014-HB | 10 | 3/8 | 14 | 37 | 14 | 24 | 7 |
| RK-1016-HB | 10 | 3/8 | 16 | 39 | 16 | 28 | 7 |
| RK-1018-HB | 10 | 3/8 | 18 | 40 | 20 | 32 | 7 |
| RK-1318-HB | 12 | 1/2 | 18 | 51 | 25.5 | 32 | 9 |
