POLYEMİD HALKA RAKORU
POLYEMİD HALKA RAKORU
| POLYEMİD HALKA BANJO FITTING | ||||||

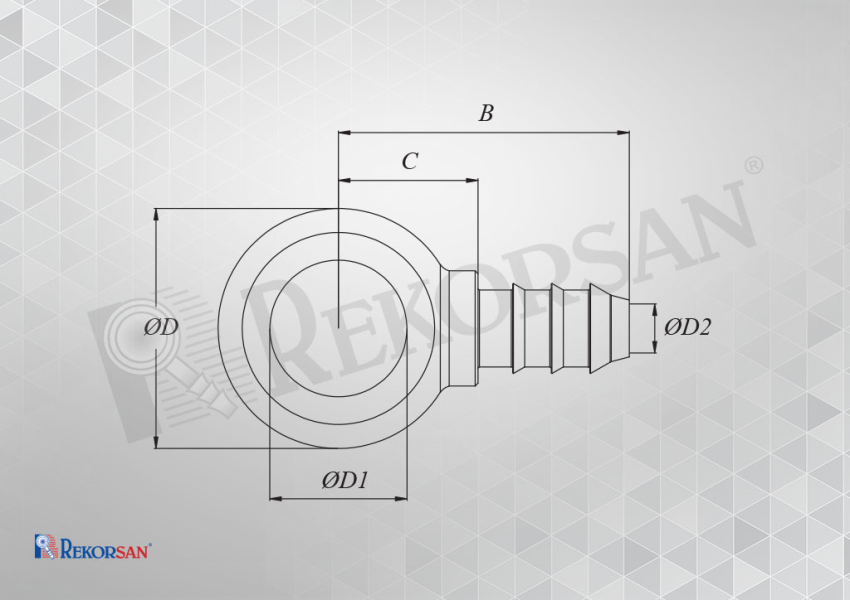

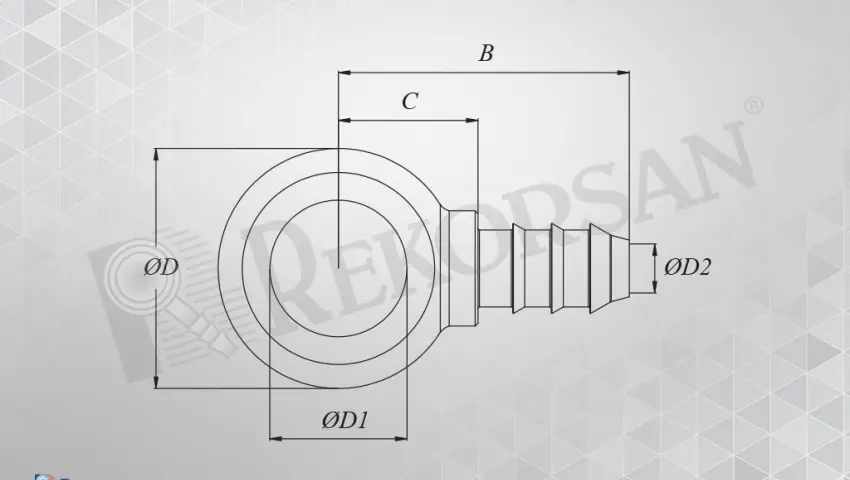

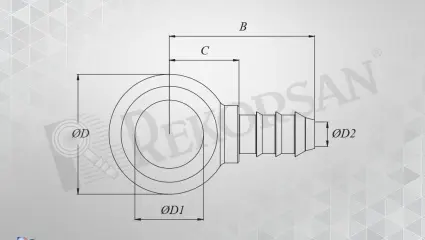

| MALZEME KODU MATERIAL CODE | HORTUM ÖLÇÜSÜ HOSE SIZE | ØD1 | B | C | ØD | ØD2 |
| RK-0408-HP | 4x6 | 8 | 24 | 9 | 14 | 3 |
| RK-0410-HP | 4x6 | 10 | 25 | 9 | 18 | 3 |
| RK-0608-HP | 6x8 | 8 | 25 | 9 | 14 | 4 |
| RK-0610-HP | 6x8 | 10 | 29 | 10 | 18 | 4 |
| RK-0612-HP | 6x8 | 12 | 29 | 10 | 20 | 4 |
| RK-0614-HP | 6x8 | 14 | 31 | 12 | 24 | 4 |
| RK-0812-HP | 8x10 | 12 | 31 | 10 | 20 | 6 |
| RK-0814-HP | 8x10 | 14 | 33 | 11 | 24 | 6 |
| RK-0914-HP | 9x12 | 14 | 36 | 12 | 24 | 7 |
