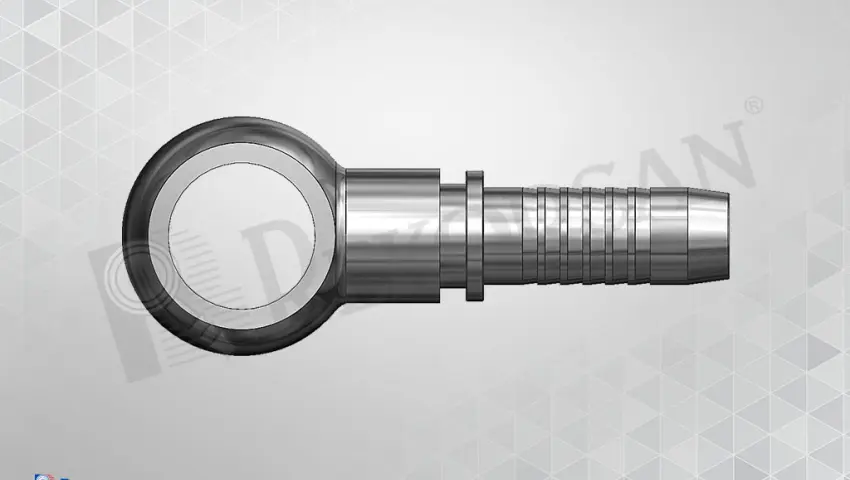

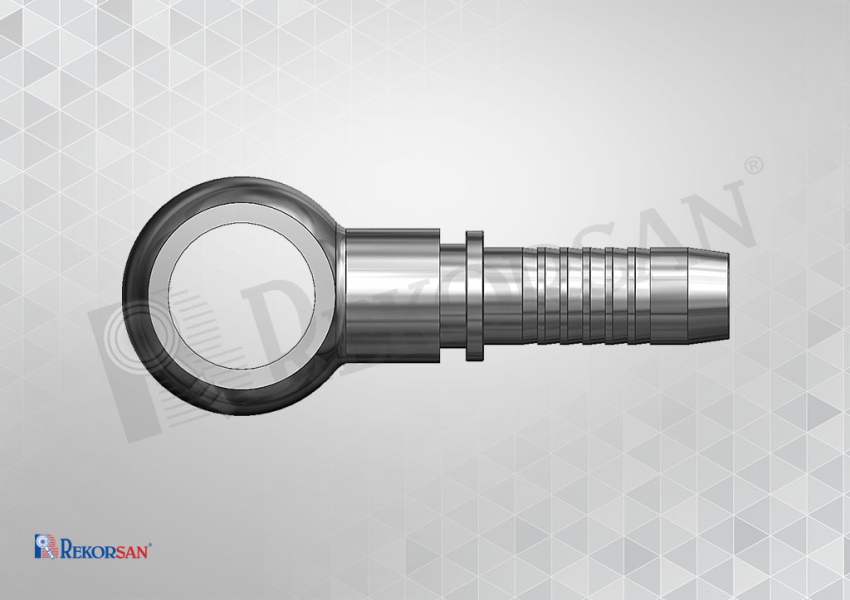

HİDROLİK PRESLİ HALKA RAKORU
HİDROLİK PRESLİ HALKA RAKORU
| PRESLİ HALKA BANJO FITTING | |||||||

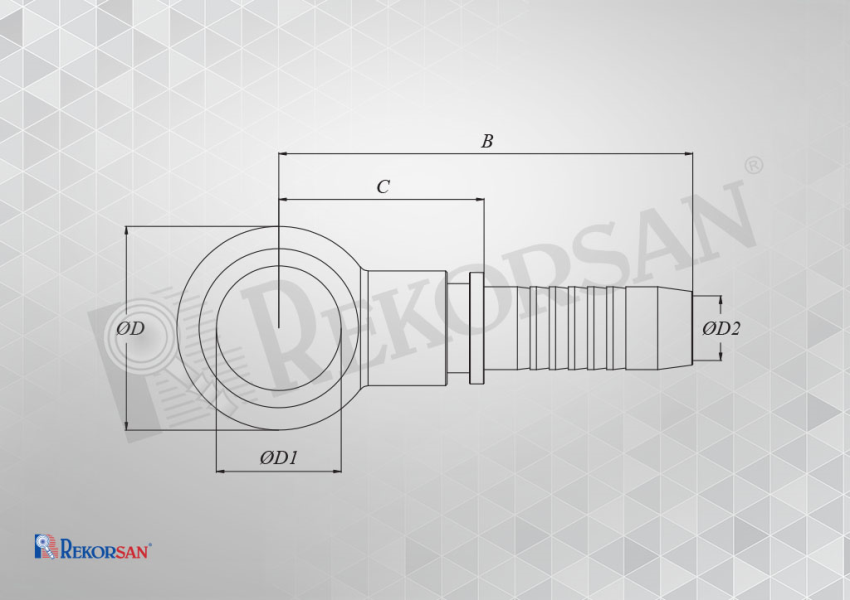

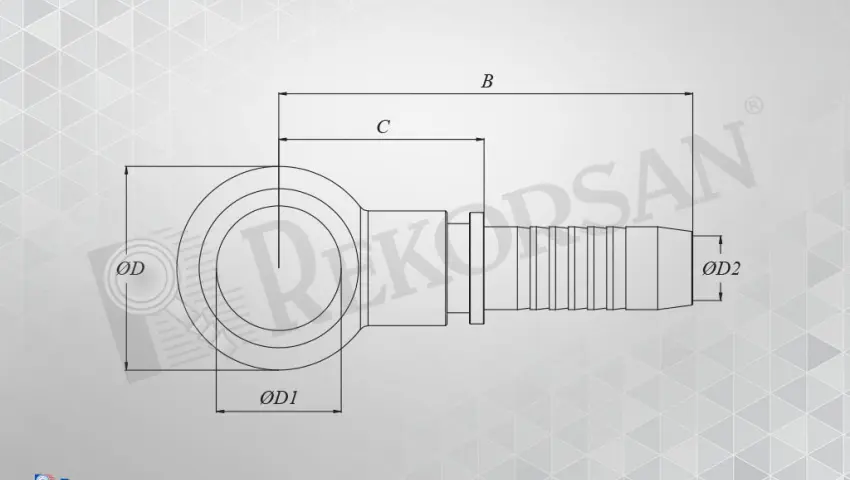

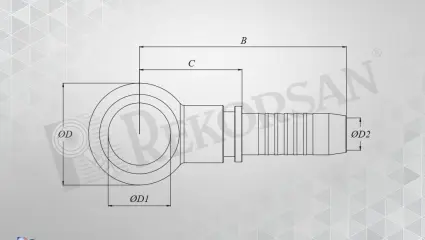

| MALZEME KODU MATERIAL CODE | HORTUM ÖLÇÜSÜ HOSE SIZE | ØD1 | B | C | ØD | ØD2 | |
| mm | inch | ||||||
| RK-0510-HT | 05 | 3/16 | 10 | 39.5 | 19.5 | 18 | 3.2 |
| RK-0610-HT | 06 | 1/4 | 10 | 44.5 | 19.5 | 18 | 4 |
| RK-0612-HT | 06 | 1/4 | 12 | 46 | 21 | 20 | 4 |
| RK-0613-HT | 06 | 1/4 | 13 | 48.5 | 23.5 | 24 | 4 |
| RK-0614-HT | 06 | 1/4 | 14 | 48.5 | 23.5 | 24 | 4 |
| RK-0617-HT | 06 | 1/4 | 17 | 51.5 | 26.5 | 28 | 4 |
| RK-0812-HT | 08 | 5/16 | 12 | 48.5 | 21.5 | 20 | 5.5 |
| RK-0813-HT | 08 | 5/16 | 13 | 50.5 | 23.5 | 24 | 5.5 |
| RK-0814-HT | 08 | 5/16 | 14 | 51 | 24 | 24 | 5.5 |
| RK-0816-HT | 08 | 5/16 | 16 | 54 | 27 | 28 | 5.5 |
| RK-0817-HT | 08 | 5/16 | 17 | 54 | 27 | 28 | 5.5 |
| RK-1014-HT | 10 | 3/8 | 14 | 54 | 24 | 24 | 7 |
| RK-1016-HT | 10 | 3/8 | 16 | 59 | 29 | 28 | 7 |
| RK-1017-HT | 10 | 3/8 | 17 | 59 | 29 | 29 | 7 |
| RK-1018-HT | 10 | 3/8 | 18 | 62 | 32 | 32 | 7 |
| RK-1021-HT | 10 | 3/8 | 21 | 63.5 | 33.5 | 35 | 7 |
| RK-1316-HT | 12 | 1/2 | 16 | 64 | 31 | 30 | 9 |
| RK-1318-HT | 12 | 1/2 | 18 | 65.5 | 32.5 | 32 | 9 |
| RK-1320-HT | 12 | 1/2 | 20 | 67 | 34 | 33 | 9 |
| RK-1321-HT | 12 | 1/2 | 21 | 67 | 34 | 35 | 9 |
| RK-1322-HT | 12 | 1/2 | 22 | 67 | 34 | 35 | 9 |
