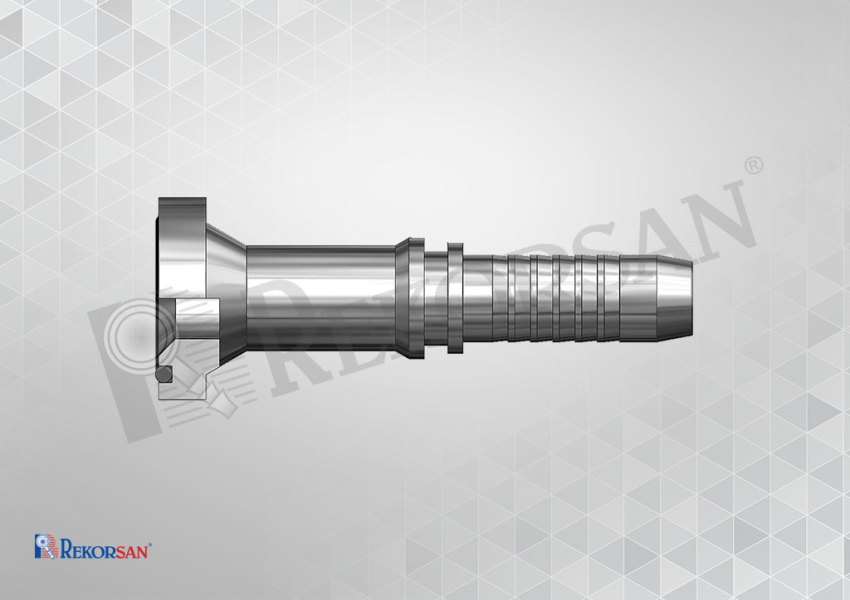

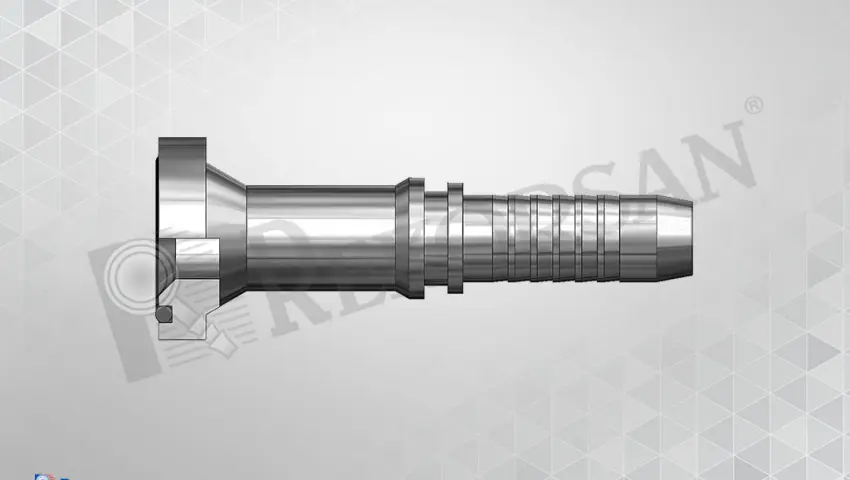

FLANŞLI DÜZ HORTUM RAKORU 6000 SERİSİ
FLANŞLI DÜZ HORTUM RAKORU 6000 SERİSİ
| FLANŞLI DÜZ HORTUM RAKORU 6000 SERİSİ STRAIGHT FLANGE HOSE FITTING 6000 SERIES | |||||||

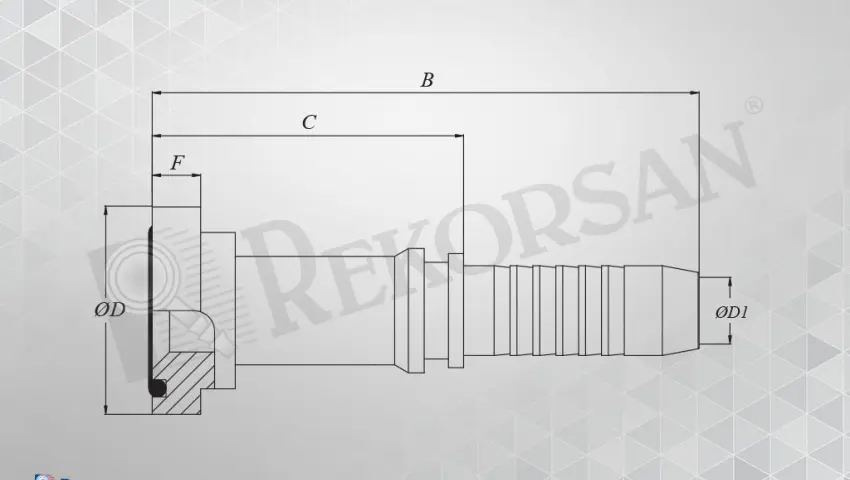

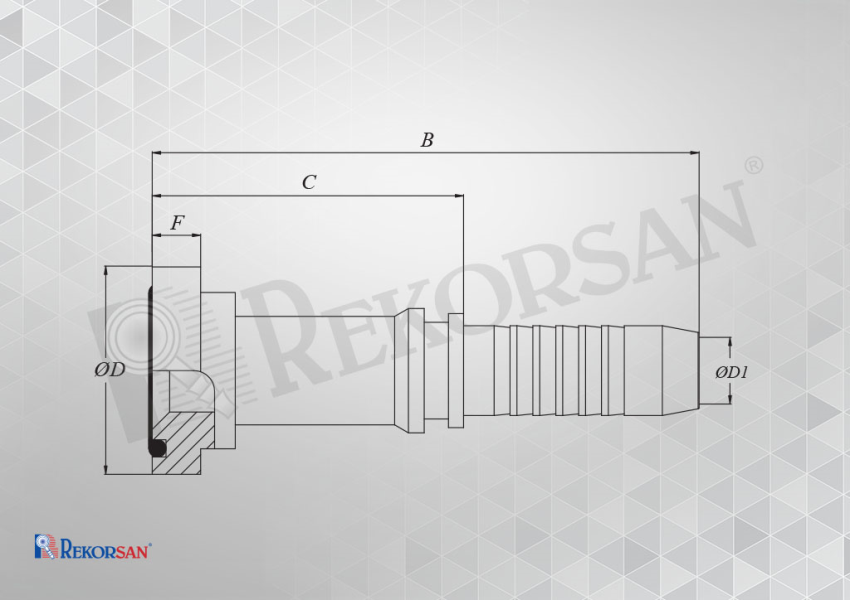

| MALZEME KODU MATERIAL CODE | HORTUM ÖLÇÜSÜ HOSE SIZE | FLANŞ ÖLÇÜSÜ FLANGE SIZE ØD | B | C | F | ØD1 | |
| mm | inch | ||||||
| RK-133208-FLD | 12 | 1/2 | 32 | 83 | 50 | 8 | 9 |
| RK-133408-FLD | 12 | 1/2 | 34,1 | 84 | 51 | 8 | 9 |
| RK-163208-FLD | 16 | 5/8 | 32 | 95 | 55 | 8 | 12 |
| RK-163408-FLD | 16 | 5/8 | 34,1 | 95 | 55 | 8 | 12 |
| RK-164110-FLD | 16 | 5/8 | 41,3 | 101 | 61 | 9 | 12 |
| RK-194110-FLD | 19 | 3/4 | 41,3 | 106 | 62 | 9 | 14 |
| RK-194810-FLD | 19 | 3/4 | 47,6 | 106 | 62 | 10 | 14 |
| RK-254810-FLD | 25 | 1" | 47,6 | 120 | 66 | 10 | 19 |
| RK-255410-FLD | 25 | 1" | 54 | 120 | 66 | 10.5 | 19 |
| RK-324810-FLD | 32 | 1"1/4 | 47,6 | 131 | 71.5 | 10 | 25 |
| RK-325410-FLD | 32 | 1"1/4 | 54 | 131 | 71.5 | 10.5 | 25 |
| RK-326314-FLD | 32 | 1"1/4 | 63,5 | 133.5 | 74 | 12.7 | 25 |
| RK-386314-FLD | 38 | 1"1/2 | 63,5 | 148.5 | 76.5 | 12.7 | 29 |
