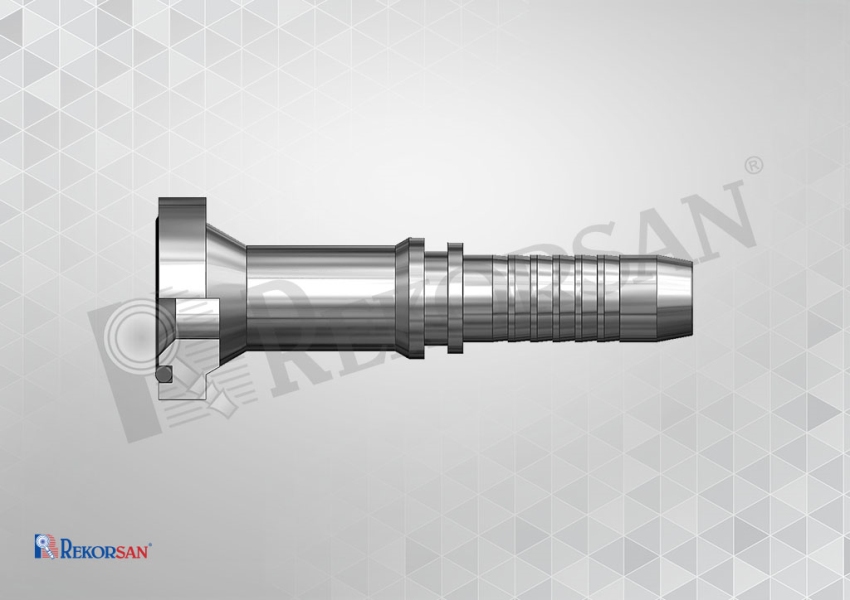

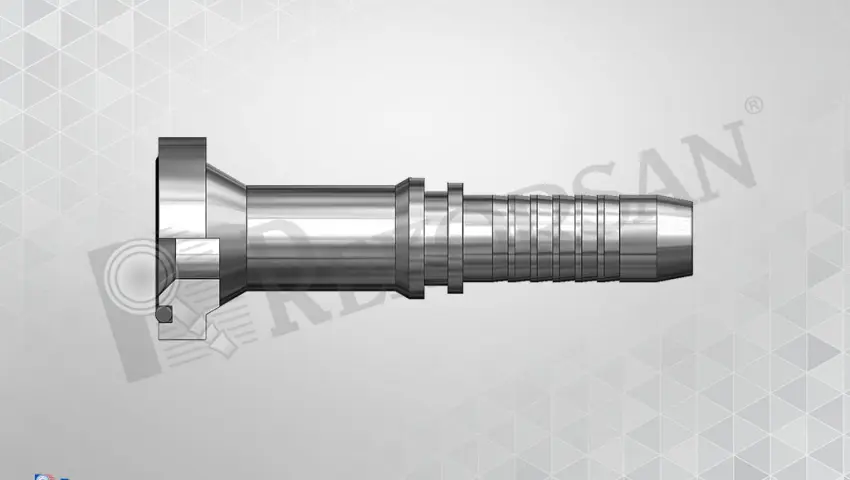

FLANŞLI DÜZ HORTUM RAKORU 3000 SERİSİ
FLANŞLI DÜZ HORTUM RAKORU 3000 SERİSİ

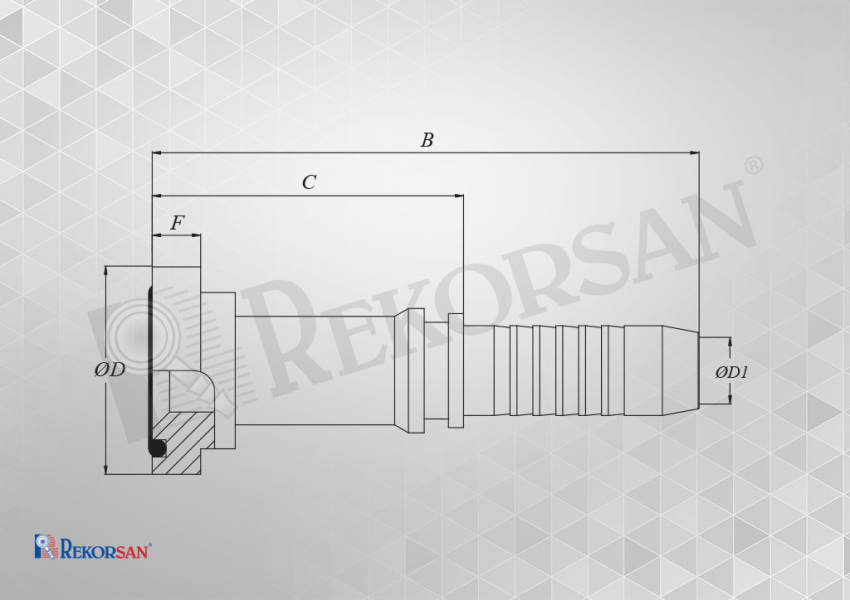

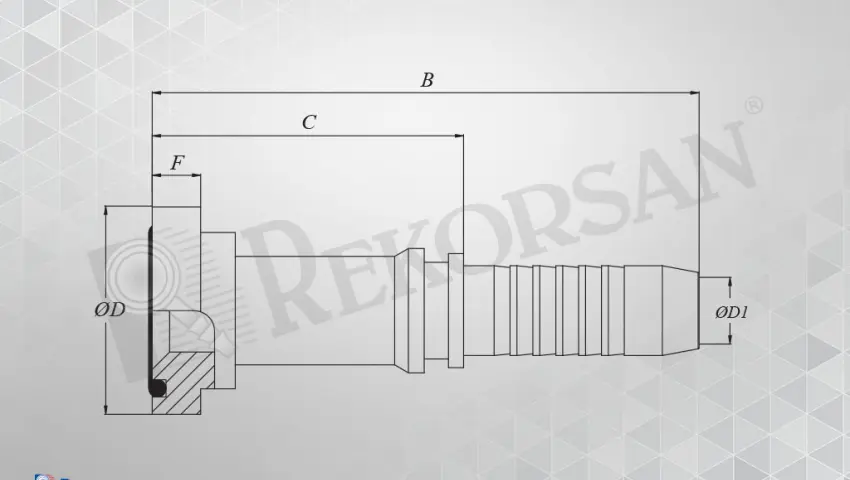

| FLANŞLI DÜZ HORTUM RAKORU 3000 SERİSİ STRAIGHT FLANGE HOSE FITTING 3000 SERIES | |||||||
| MALZEME KODU MATERIAL CODE | HORTUM ÖLÇÜSÜ HOSE SIZE | FLANŞ ÖLÇÜSÜ FLANGE SIZE ØD | B | C | F | ØD1 | |
| mm | inch | ||||||
| RK-133007-FLD | 12 | 1/2 | 30,2 | 83 | 50 | 7.5 | 9 |
| RK-133807-FLD | 12 | 1/2 | 38,1 | 84 | 51 | 7.5 | 9 |
| RK-163807-FLD | 16 | 5/8 | 38,1 | 101 | 61 | 7.5 | 12 |
| RK-193807-FLD | 19 | 3/4 | 38,1 | 105 | 61 | 7.5 | 14 |
| RK-194408-FLD | 19 | 3/4 | 44,4 | 105 | 62 | 8 | 14 |
| RK-253807-FLD | 25 | 1" | 38,1 | 116 | 62 | 7.5 | 19 |
| RK-254408-FLD | 25 | 1" | 44,4 | 117 | 63 | 8 | 19 |
| RK-255108-FLD | 25 | 1" | 50,8 | 120 | 66 | 8 | 19 |
| RK-324408-FLD | 32 | 1"1/4 | 44,4 | 132 | 72.5 | 8 | 25 |
| RK-325108-FLD | 32 | 1"1/4 | 50,8 | 131 | 71.5 | 8 | 25 |
| RK-326008-FLD | 32 | 1"1/4 | 60,3 | 128 | 68.5 | 8 | 25 |
| RK-386008-FLD | 38 | 1"1/2 | 60,3 | 147 | 75 | 8 | 29 |
| RK-507110-FLD | 50 | 2" | 71,4 | 145,5 | 85 | 10 | 41 |
| RK-648410-FLD | 64 | 2"1/2 | 84,1 | 147 | 76 | 10 | 55 |
| RK-7610110-FLD | 76 | 3" | 101,6 | 147 | 75 | 10 | 67 |
| RK-10211410-FLD | 102 | 4" | 114,3 | 170 | 95 | 11 | 92 |
| RK-10212710-FLD | 102 | 4" | 127 | 170 | 95 | 11 | 92 |
