FLANŞLI 90° HORTUM RAKORU 6000 SERİSİ
FLANŞLI 90° HORTUM RAKORU 6000 SERİSİ

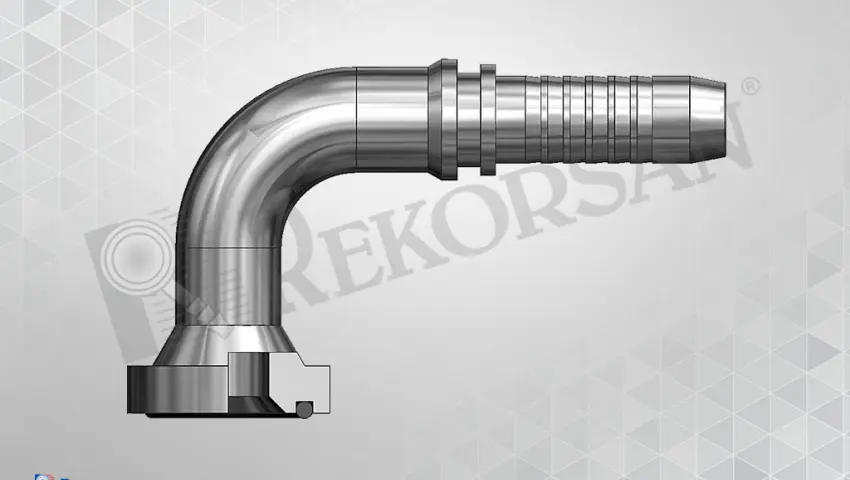

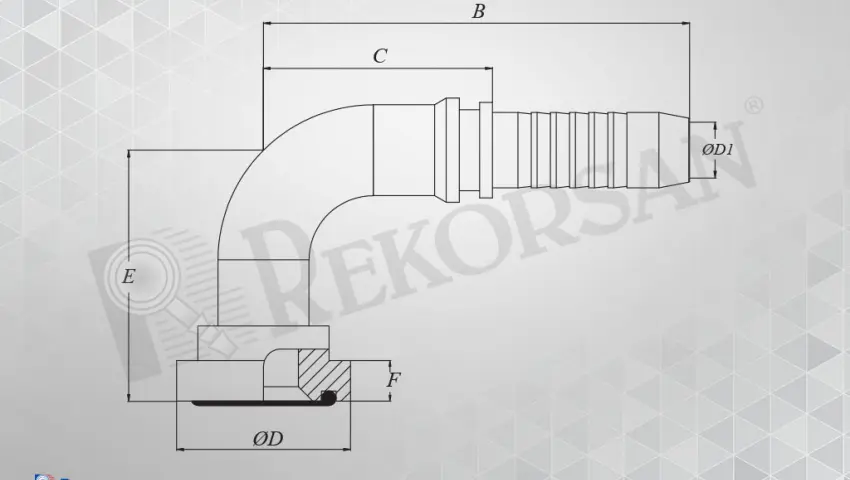

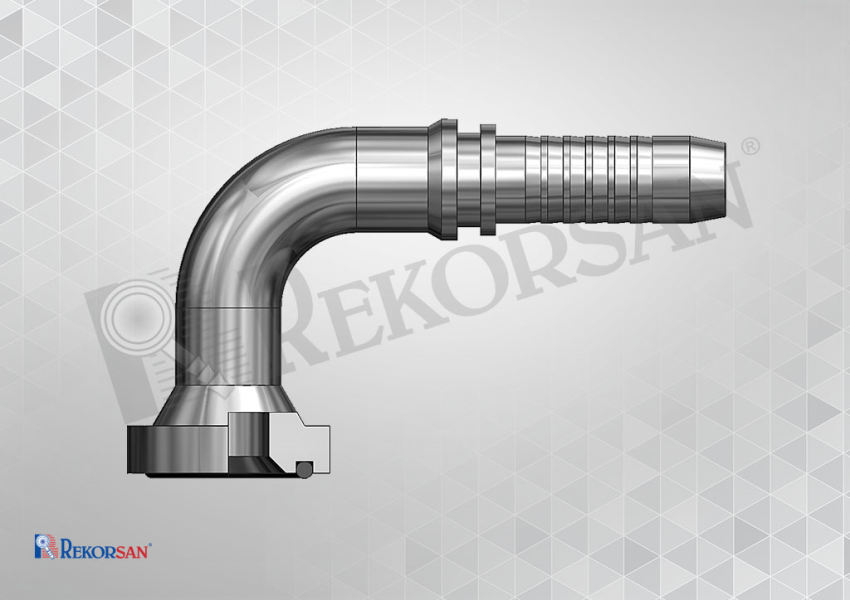

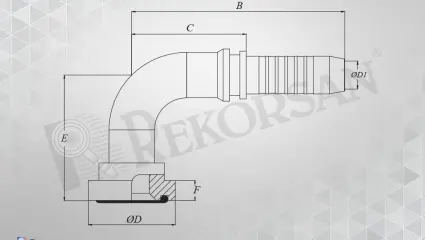

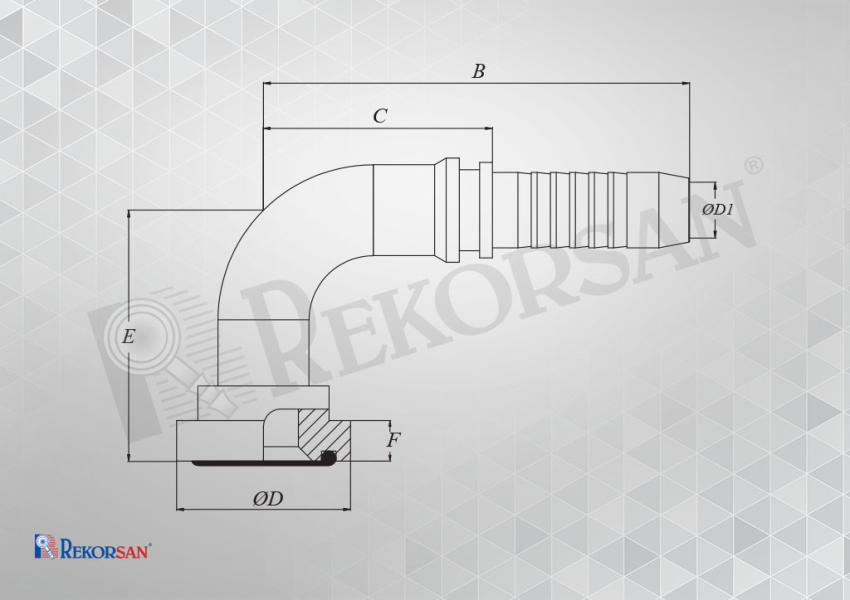

| FLANŞLI 90° HORTUM RAKORU 6000 SERİSİ 90° ELBOW FLANGE HOSE FITTING 6000 SERIES | ||||||||
| MALZEME KODU MATERIAL CODE | HORTUM ÖLÇÜSÜ HOSE SIZE | FLANŞ ÖLÇÜSÜ FLANGE SIZE ØD | B | C | E | F | ØD1 | |
| mm | inch | |||||||
| RK-133208-FL90 | 12 | 1/2 | 32 | 69 | 36 | 38 | 8 | 9 |
| RK-133408-FL90 | 12 | 1/2 | 34,1 | 69 | 36 | 38 | 8 | 9 |
| RK-163208-FL90 | 16 | 5/8 | 32 | 90 | 50 | 50 | 8 | 12 |
| RK-163408-FL90 | 16 | 5/8 | 34,1 | 90 | 50 | 50 | 8 | 12 |
| RK-164110-FL90 | 16 | 5/8 | 41,3 | 90 | 50 | 50 | 9 | 12 |
| RK-194110-FL90 | 19 | 3/4 | 41,3 | 100 | 56 | 60 | 9 | 14 |
| RK-194810-FL90 | 19 | 3/4 | 47,6 | 100 | 56 | 63 | 10 | 14 |
| RK-254810-FL90 | 25 | 1" | 47,6 | 135 | 81 | 70 | 10 | 19 |
| RK-255410-FL90 | 25 | 1" | 54 | 135 | 81 | 70 | 10.5 | 19 |
| RK-324810-FL90 | 32 | 1"1/4 | 47,6 | 140 | 80 | 78 | 10 | 25 |
| RK-325410-FL90 | 32 | 1"1/4 | 54 | 140 | 80 | 80 | 10.5 | 25 |
| RK-326314-FL90 | 32 | 1"1/4 | 63,5 | 140 | 80 | 80 | 12.7 | 25 |
| RK-386314-FL90 | 38 | 1"1/2 | 63,5 | 170 | 100 | 85 | 12.7 | 29 |
