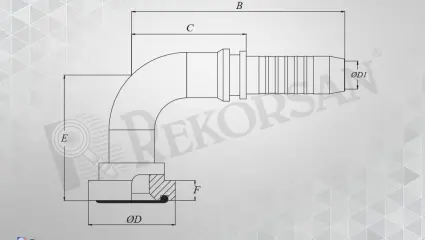

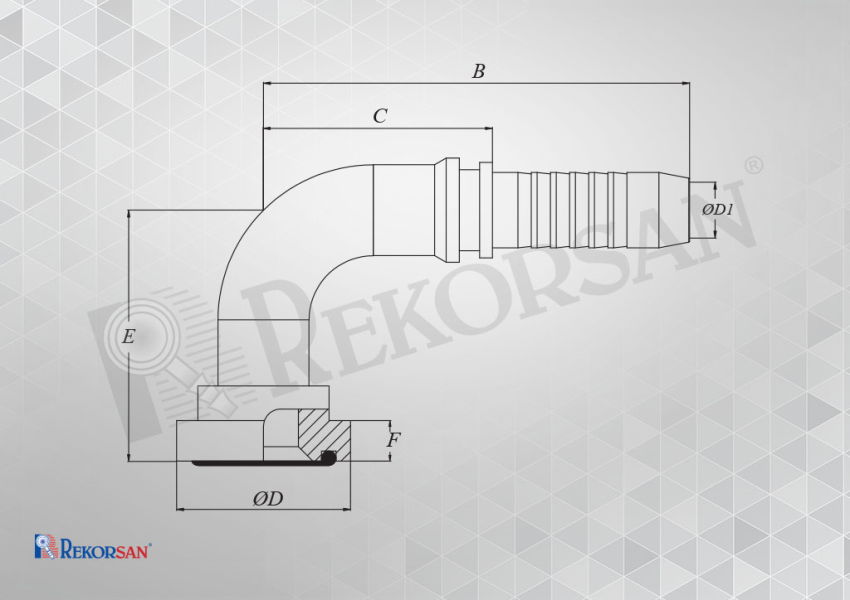

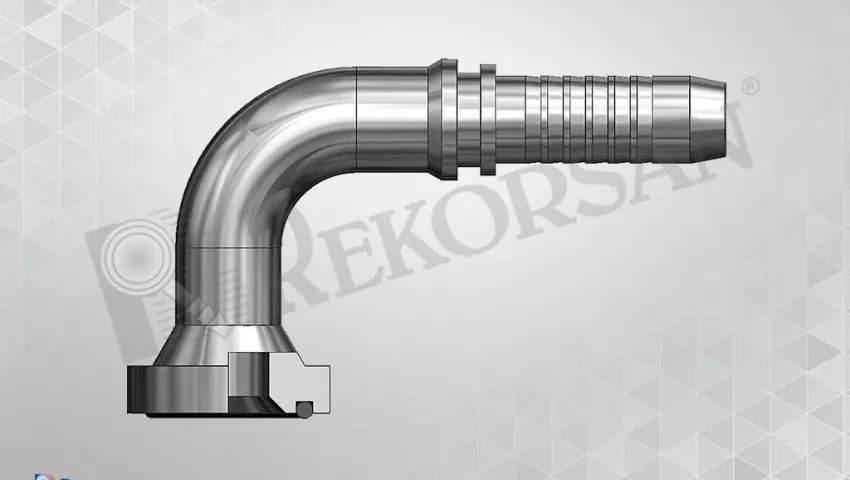

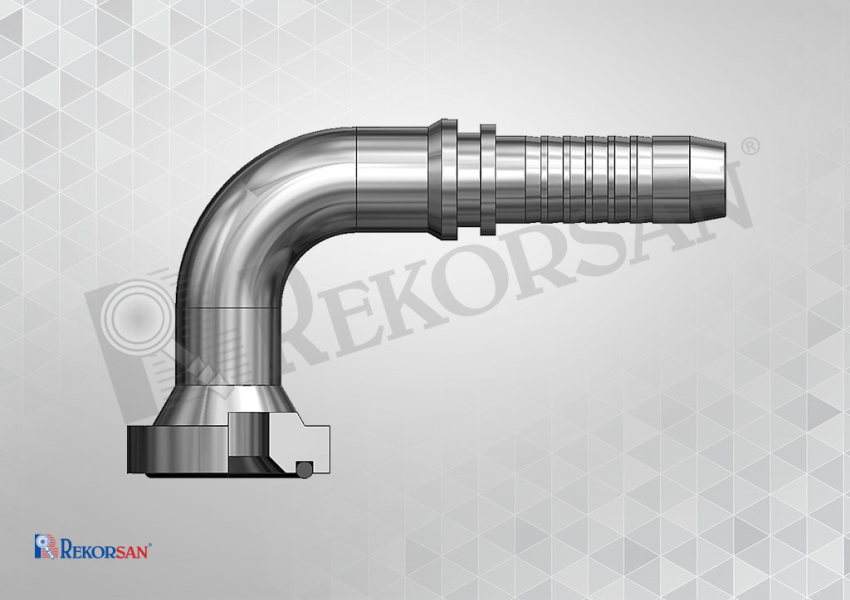

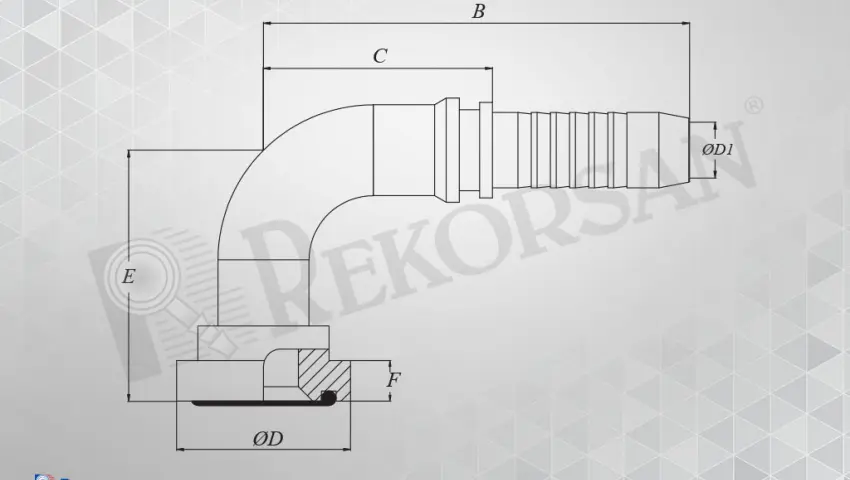

| FLANŞLI 90° HORTUM RAKORU 3000 SERİSİ 90° ELBOW FLANGE HOSE FITTING 3000 SERIES | ||||||||
| MALZEME KODU MATERIAL CODE | HORTUM ÖLÇÜSÜ HOSE SIZE | FLANŞ ÖLÇÜSÜ FLANGE SIZE ØD | B | C | E | F | ØD1 | |
| mm | inch | |||||||
| RK-133007-FL90 | 12 | 1/2 | 30,2 | 69 | 36 | 38 | 7.5 | 9 |
| RK-133807-FL90 | 12 | 1/2 | 38,1 | 69 | 36 | 38 | 7.5 | 9 |
| RK-163807-FL90 | 16 | 5/8 | 38,1 | 90 | 50 | 48 | 7.5 | 12 |
| RK-193807-FL90 | 19 | 3/4 | 38,1 | 100 | 56 | 58 | 7.5 | 14 |
| RK-194408-FL90 | 19 | 3/4 | 44,4 | 100 | 56 | 60 | 8 | 14 |
| RK-253807-FL90 | 25 | 1" | 38,1 | 135 | 81 | 65 | 7.5 | 19 |
| RK-254408-FL90 | 25 | 1" | 44,4 | 135 | 81 | 67 | 8 | 19 |
| RK-255108-FL90 | 25 | 1" | 50,8 | 135 | 81 | 68 | 8 | 19 |
| RK-324408-FL90 | 32 | 1"1/4 | 44,4 | 140 | 80 | 78 | 8 | 25 |
| RK-325108-FL90 | 32 | 1"1/4 | 50,8 | 140 | 80 | 80 | 8 | 25 |
| RK-326008-FL90 | 32 | 1"1/4 | 60,3 | 140 | 80 | 80 | 8 | 25 |
| RK-386008-FL90 | 38 | 1"1/2 | 60,3 | 170 | 100 | 85 | 8 | 29 |
| RK-507110-FL90 | 50 | 2" | 71,4 | 150 | 90 | 90 | 10 | 42 |
| RK-648410-FL90 | 64 | 2"1/2 | 84,1 | 175 | 105 | 110 | 10 | 55 |
| RK-7610110-FL90 | 76 | 3" | 101,6 | 200 | 130 | 125 | 10 | 67 |
| RK-10211410-FL90 | 102 | 4" | 114,3 | 245 | 170 | 175 | 11 | 92 |
| RK-10212710-FL90 | 102 | 4" | 127 | 245 | 170 | 175 | 11 | 92 |
