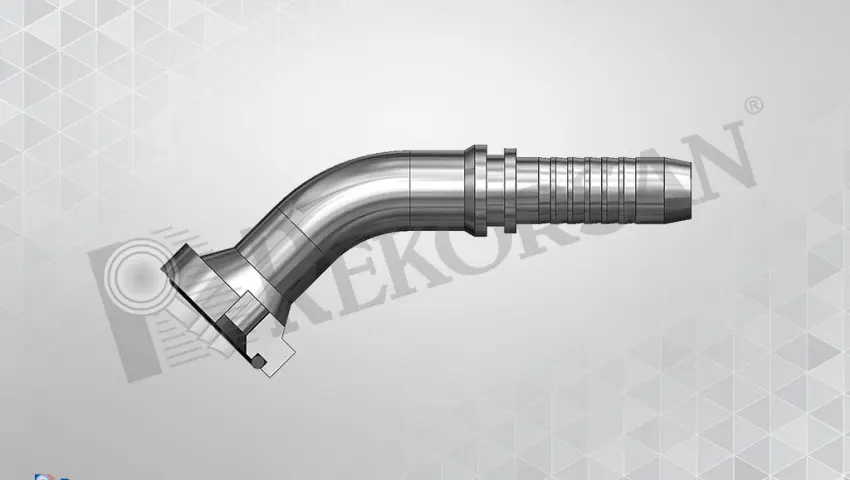

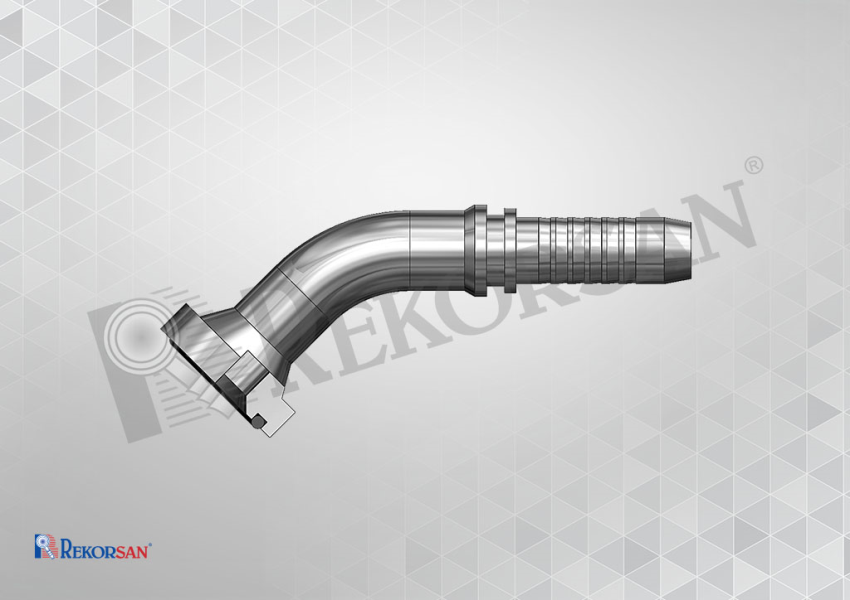

FLANŞLI 45° HORTUM RAKORU 6000 SERİSİ
FLANŞLI 45° HORTUM RAKORU 6000 SERİSİ

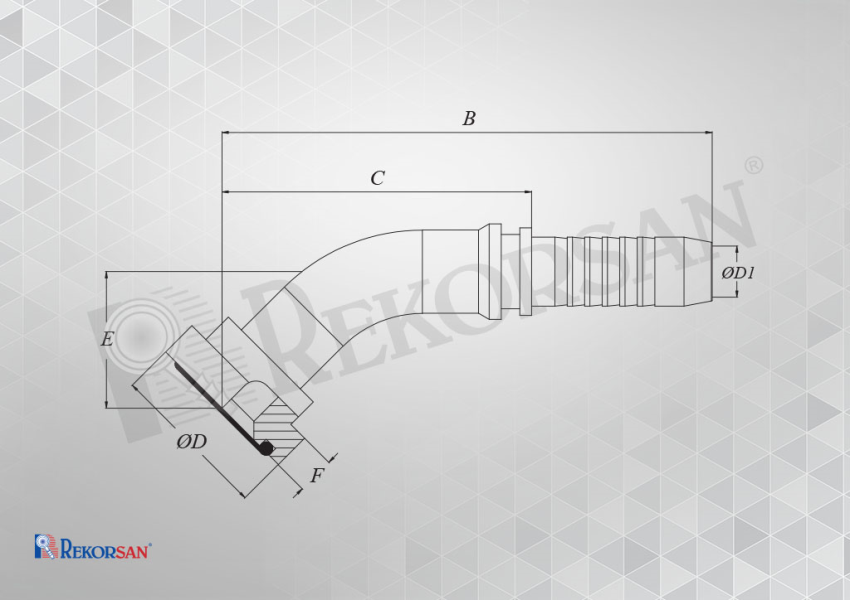

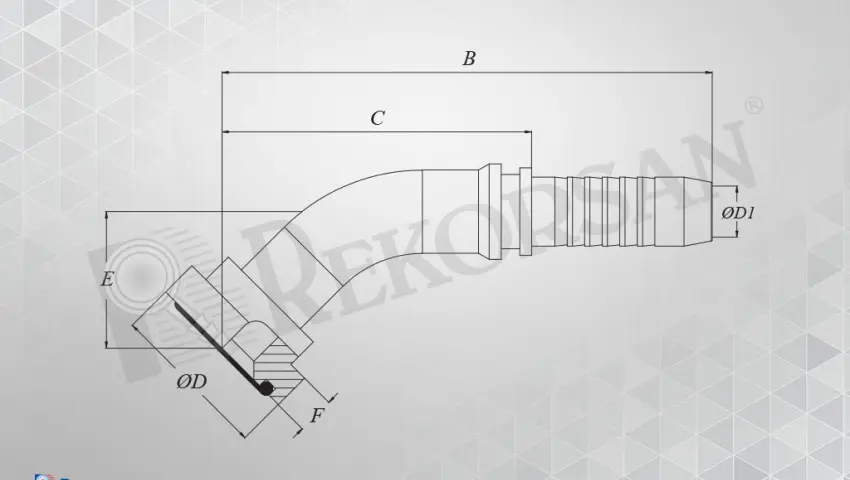

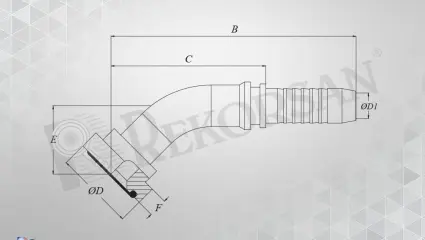

| FLANŞLI 45° HORTUM RAKORU 6000 SERİSİ 45° ELBOW FLANGE HOSE FITTING 6000 SERIES | ||||||||
| MALZEME KODU MATERIAL CODE | HORTUM ÖLÇÜSÜ HOSE SIZE | FLANŞ ÖLÇÜSÜ FLANGE SIZE ØD | B | C | E | F | ØD1 | |
| mm | inch | |||||||
| RK-133208-FL45 | 12 | 1/2 | 32 | 85 | 52 | 25 | 8 | 9 |
| RK-133408-FL45 | 12 | 1/2 | 34,1 | 85 | 52 | 25 | 8 | 9 |
| RK-163208-FL45 | 16 | 5/8 | 32 | 105 | 65 | 28 | 8 | 12 |
| RK-163408-FL45 | 16 | 5/8 | 34,1 | 105 | 65 | 28 | 8 | 12 |
| RK-164110-FL45 | 16 | 5/8 | 41,3 | 105 | 65 | 28 | 9 | 12 |
| RK-194110-FL45 | 19 | 3/4 | 41,3 | 120 | 76 | 30 | 9 | 14 |
| RK-194810-FL45 | 19 | 3/4 | 47,6 | 120 | 76 | 30 | 10 | 14 |
| RK-254810-FL45 | 25 | 1" | 47,6 | 145 | 91 | 35 | 10 | 19 |
| RK-255410-FL45 | 25 | 1" | 54 | 145 | 91 | 35 | 10.5 | 19 |
| RK-324810-FL45 | 32 | 1"1/4 | 47,6 | 160 | 100 | 38 | 10 | 25 |
| RK-325410-FL45 | 32 | 1"1/4 | 54 | 160 | 100 | 38 | 10.5 | 25 |
| RK-326314-FL45 | 32 | 1"1/4 | 63,5 | 160 | 100 | 38 | 12.7 | 25 |
| RK-386314-FL45 | 38 | 1"1/2 | 63,5 | 170 | 100 | 45 | 12.7 | 29 |
