FLANŞLI 45° HORTUM RAKORU 3000 SERİSİ
FLANŞLI 45° HORTUM RAKORU 3000 SERİSİ

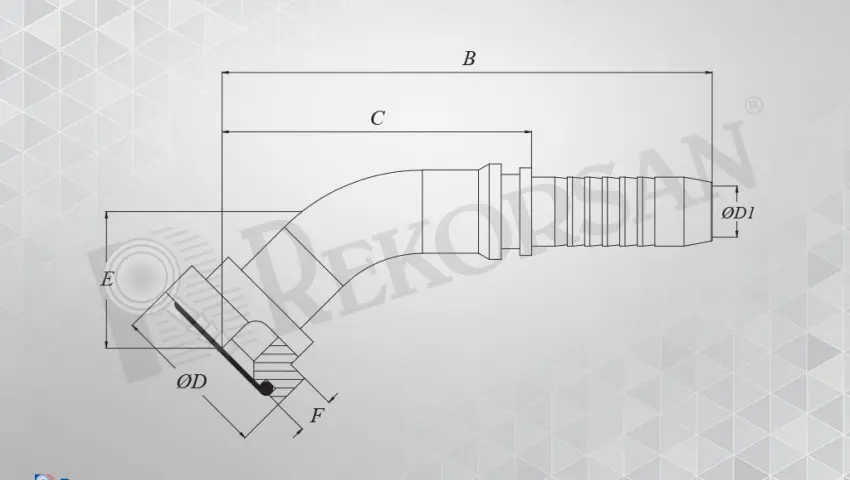

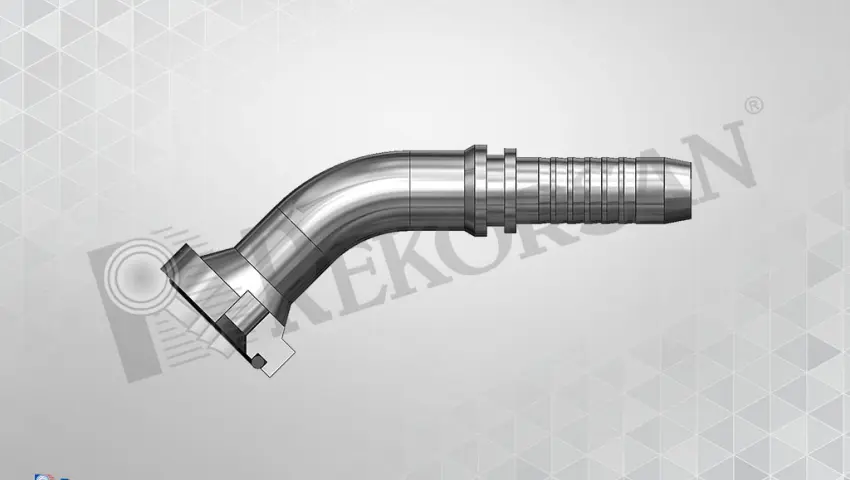

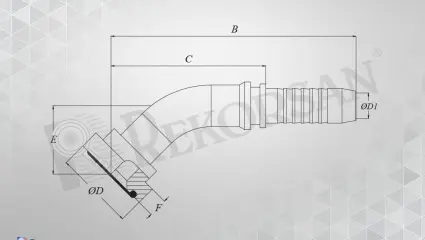

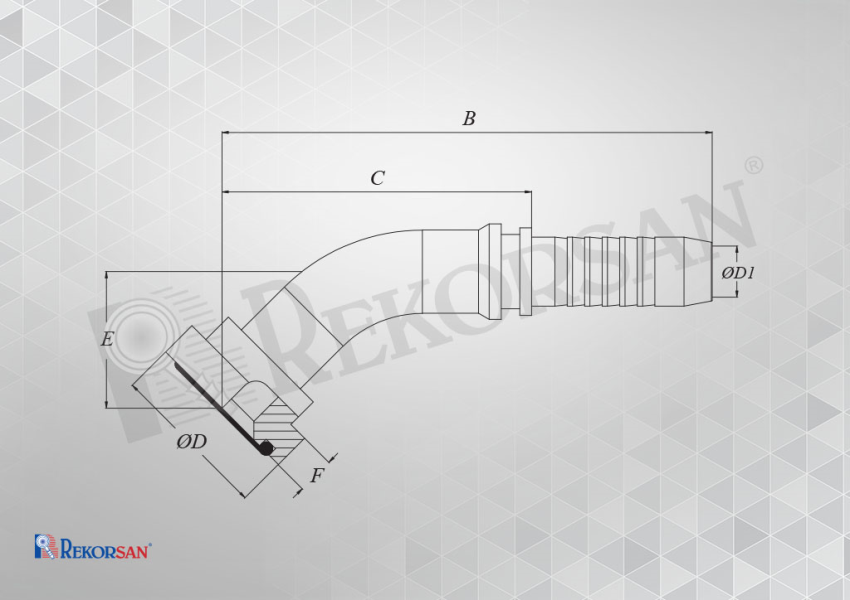

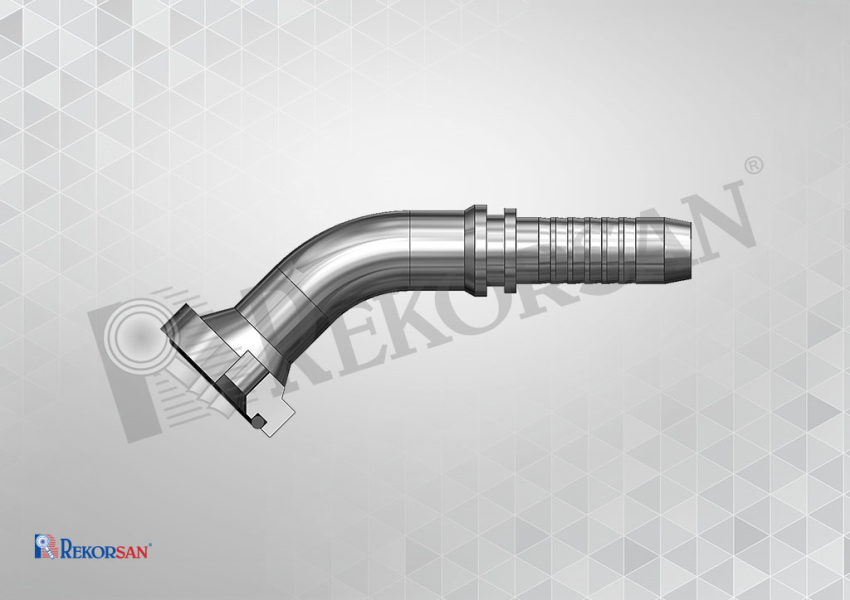

| FLANŞLI 45° HORTUM RAKORU 3000 SERİSİ 45° ELBOW FLANGE HOSE FITTING 3000 SERIES | ||||||||
| MALZEME KODU MATERIAL CODE | HORTUM ÖLÇÜSÜ HOSE SIZE | FLANŞ ÖLÇÜSÜ FLANGE SIZE ØD | B | C | E | F | ØD1 | |
| mm | inch | |||||||
| RK-133007-FL45 | 12 | 1/2 | 30,2 | 85 | 52 | 25 | 7.5 | 9 |
| RK-133807-FL45 | 12 | 1/2 | 38,1 | 85 | 52 | 25 | 7.5 | 9 |
| RK-163807-FL45 | 16 | 5/8 | 38,1 | 105 | 65 | 28 | 7.5 | 12 |
| RK-193807-FL45 | 19 | 3/4 | 38,1 | 120 | 76 | 30 | 7.5 | 14 |
| RK-194408-FL45 | 19 | 3/4 | 44,4 | 120 | 76 | 30 | 8 | 14 |
| RK-253807-FL45 | 25 | 1" | 38,1 | 145 | 91 | 35 | 7.5 | 19 |
| RK-254408-FL45 | 25 | 1" | 44,4 | 145 | 91 | 35 | 8 | 19 |
| RK-255108-FL45 | 25 | 1" | 50,8 | 145 | 91 | 35 | 8 | 19 |
| RK-324408-FL45 | 32 | 1"1/4 | 44,4 | 160 | 100 | 38 | 8 | 25 |
| RK-325108-FL45 | 32 | 1"1/4 | 50,8 | 160 | 100 | 38 | 8 | 25 |
| RK-326008-FL45 | 32 | 1"1/4 | 60,3 | 160 | 100 | 38 | 8 | 25 |
| RK-386008-FL45 | 38 | 1"1/2 | 60,3 | 170 | 100 | 45 | 8 | 29 |
| RK-507110-FL45 | 50 | 2" | 71,4 | 140 | 80 | 30 | 10 | 42 |
| RK-648410-FL45 | 64 | 2"1/2 | 84,1 | 175 | 105 | 55 | 10 | 55 |
| RK-7610110-FL45 | 76 | 3" | 101,6 | 195 | 125 | 65 | 10 | 67 |
| RK-10211410-FL45 | 102 | 4" | 114,3 | 235 | 160 | 75 | 11 | 92 |
| RK-10212710-FL45 | 102 | 4" | 127 | 220 | 145 | 75 | 11 | 92 |
