ORFS ERKEK HORTUM RAKORU
ORFS ERKEK HORTUM RAKORU

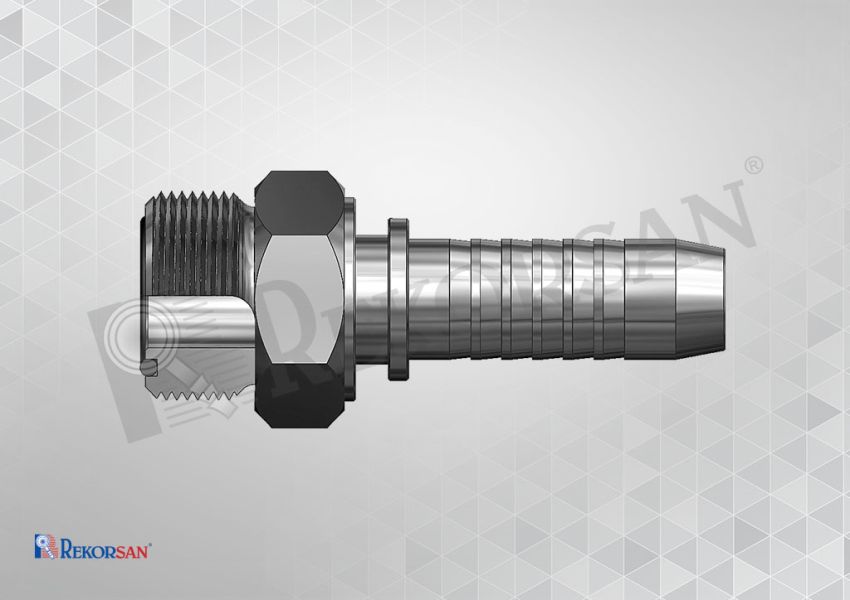

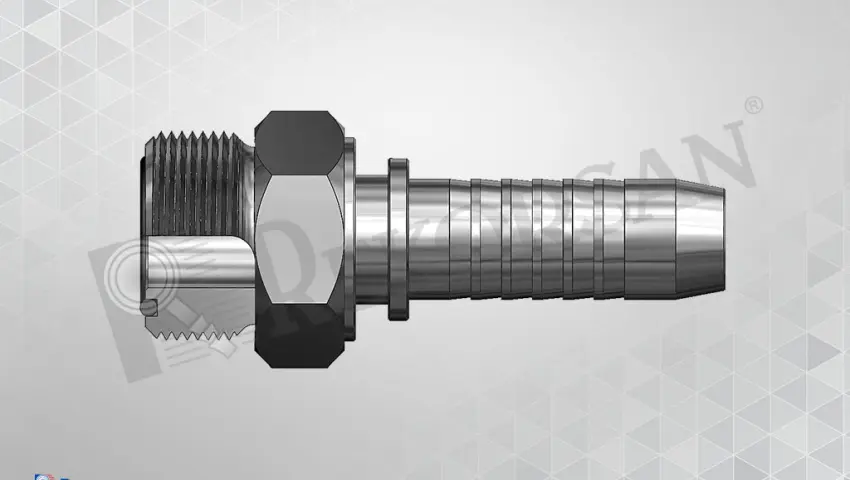

| ORFS ERKEK HORTUM RAKORU ORFS MALE STRAIGHT HOSE FITTING | |||||||

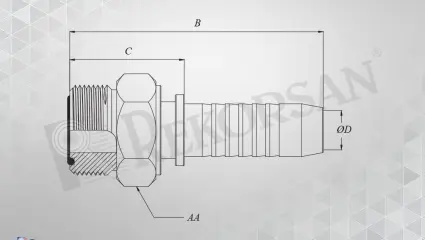

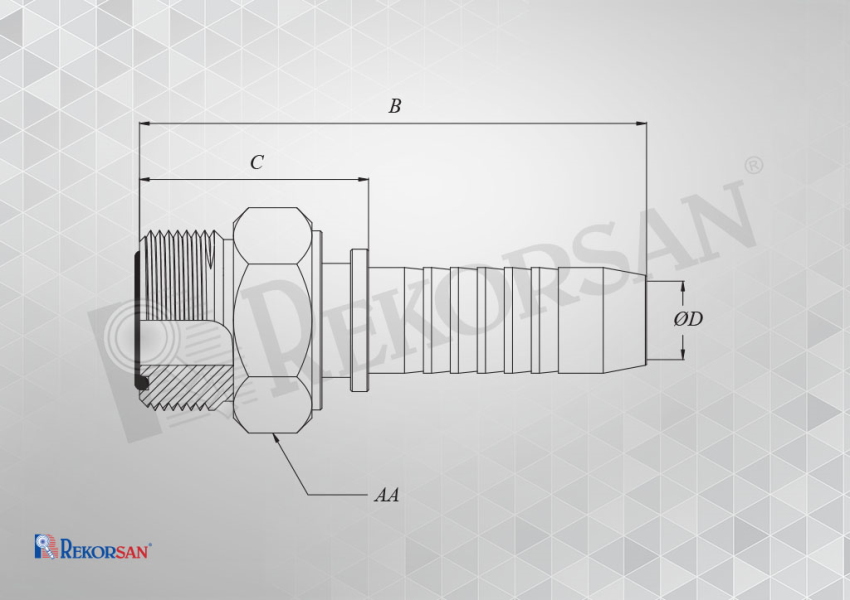

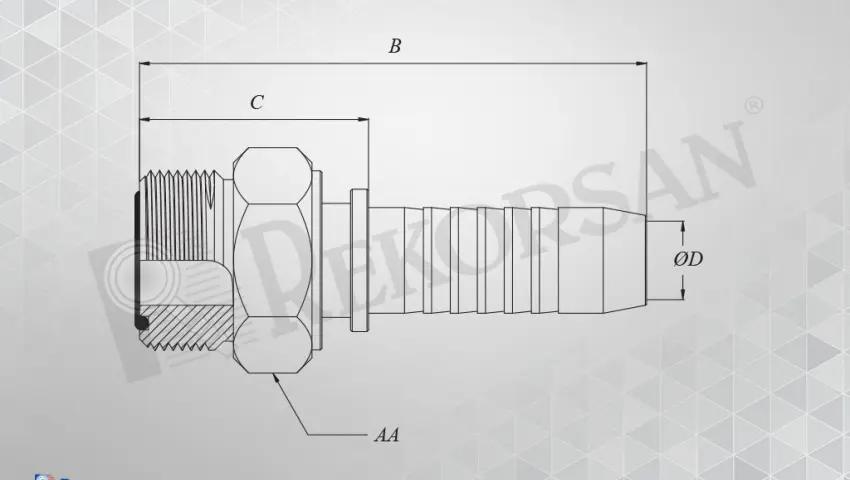

| MALZEME KODU MATERIAL CODE | HORTUM ÖLÇÜSÜ HOSE SIZE | DİŞ ÖLÇÜSÜ THREAD SIZE | B | C | ØD | AA | |
| mm | inch | ||||||
| RK-0614-OE | 06 | 1/4 | 9/16-18 | 48 | 23 | 4 | 17 |
| RK-0617-OE | 06 | 1/4 | 11/16-16 | 50 | 25 | 4 | 19 |
| RK-0814-OE | 08 | 5/16 | 9/16-18 | 50 | 23 | 5.5 | 17 |
| RK-0817-OE | 08 | 5/16 | 11/16-16 | 52 | 25 | 5.5 | 19 |
| RK-1017-OE | 10 | 3/8 | 11/16-16 | 55 | 25 | 7 | 19 |
| RK-1021-OE | 10 | 3/8 | 13/16-16 | 58 | 28 | 7 | 22 |
| RK-1321-OE | 12 | 1/2 | 13/16-16 | 61.5 | 28.5 | 9 | 22 |
| RK-1325-OE | 12 | 1/2 | 1"-14 | 65.5 | 32.5 | 9 | 27 |
| RK-1625-OE | 16 | 5/8 | 1"-14 | 73.5 | 33.5 | 12 | 27 |
| RK-1630-OE | 16 | 5/8 | 1"3/16-12 | 76 | 36 | 12 | 32 |
| RK-1930-OE | 19 | 3/4 | 1"3/16-12 | 80.5 | 36.5 | 14 | 32 |
| RK-1937-OE | 19 | 3/4 | 1"7/16-12 | 82.5 | 38.5 | 14 | 41 |
| RK-2537-OE | 25 | 1" | 1"7/16-12 | 93.5 | 39.5 | 19 | 41 |
| RK-2543-OE | 25 | 1" | 1"11/16-12 | 94.5 | 40.5 | 19 | 46 |
| RK-3243-OE | 32 | 1"1/4 | 1"11/16-12 | 101.5 | 42 | 25 | 46 |
