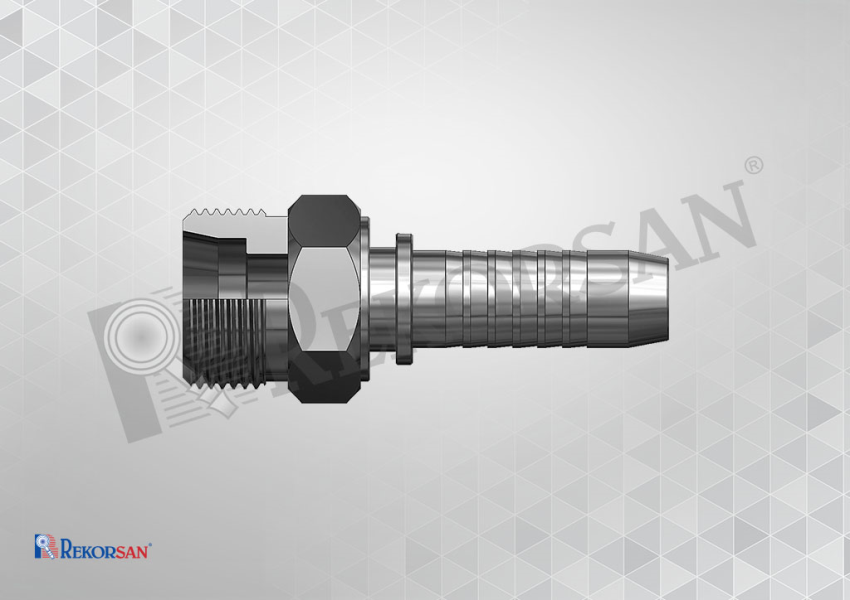

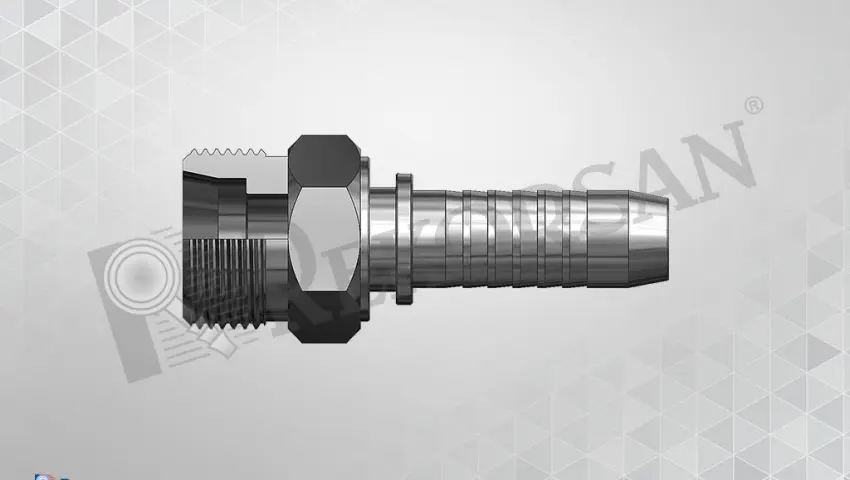

METRİK ERKEK HORTUM RAKORU
METRİK ERKEK HORTUM RAKORU
| METRİK ERKEK HORTUM RAKORLARI METRIC MALE STRAIGHT HOSE FITTINGS | ||||||||

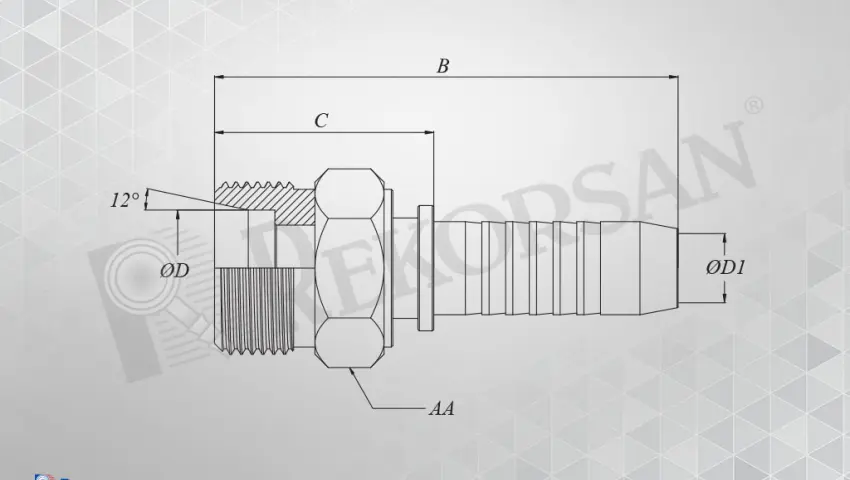

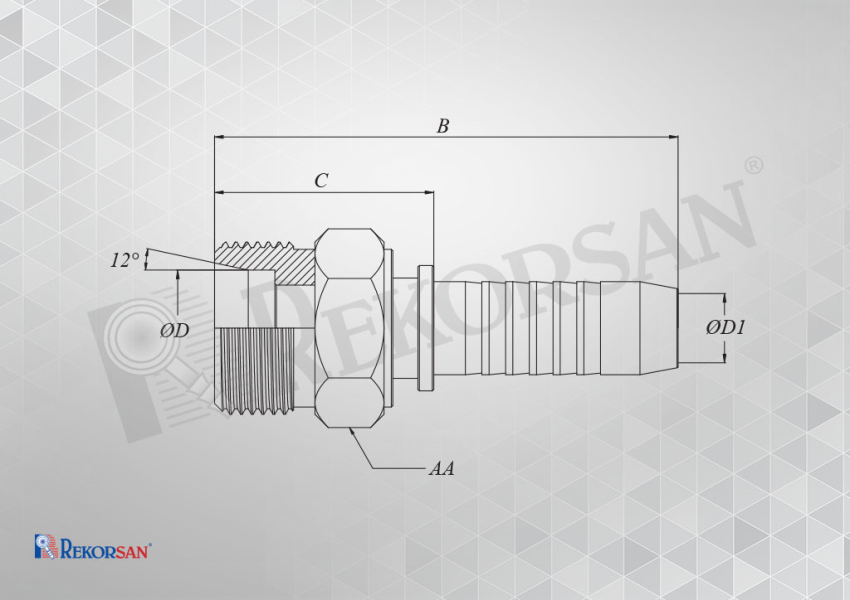

| MALZEME KODU MATERIAL CODE | HORTUM ÖLÇÜSÜ HOSE SIZE | DİŞ ÖLÇÜSÜ THREAD SIZE | B | C | ØD | ØD1 | AA | |
| mm | inch | |||||||
| L TİPİ / L TYPE | ||||||||
| RK-0506-ME-L | 05 | 3/16 | M12x1,5 6L | 41.5 | 20.5 | 6 | 3.2 | 12 |
| RK-0508-ME-L | 05 | 3/16 | M14x1,5 8L | 42 | 21 | 8 | 3.2 | 14 |
| RK-0606-ME-L | 06 | 1/4 | M12x1,5 6L | 46 | 21 | 6 | 4 | 12 |
| RK-0608-ME-L | 06 | 1/4 | M14x1,5 8L | 46,5 | 21.5 | 8 | 4 | 14 |
| RK-0610-ME-L | 06 | 1/4 | M16x1,5 10L | 48 | 23 | 10 | 4 | 17 |
| RK-0612-ME-L | 06 | 1/4 | M18x1,5 12L | 50 | 25 | 12 | 4 | 19 |
| RK-0808-ME-L | 08 | 5/16 | M14x1,5 8L | 48.5 | 21.5 | 8 | 5.5 | 14 |
| RK-0810-ME-L | 08 | 5/16 | M16x1,5 10L | 50 | 23 | 10 | 5.5 | 17 |
| RK-0812-ME-L | 08 | 5/16 | M18x1,5 12L | 51 | 24 | 12 | 5.5 | 19 |
| RK-1010-ME-L | 10 | 3/8 | M16x1,5 10L | 53 | 23 | 10 | 7 | 17 |
| RK-1012-ME-L | 10 | 3/8 | M18x1,5 12L | 54 | 24 | 12 | 7 | 19 |
| RK-1015-ME-L | 10 | 3/8 | M22x1,5 15L | 57 | 27 | 15 | 7 | 22 |
| RK-1312-ME-L | 12 | 1/2 | M18x1,5 12L | 57.5 | 24.5 | 12 | 9 | 19 |
| RK-1315-ME-L | 12 | 1/2 | M22x1,5 15L | 60.5 | 27.5 | 15 | 9 | 22 |
| RK-1618-ME-L | 16 | 5/8 | M26x1,5 18L | 69 | 29 | 18 | 12 | 27 |
| RK-1622-ME-L | 16 | 5/8 | M30x2 22L | 72 | 32 | 22 | 12 | 32 |
| RK-1922-ME-L | 19 | 3/4 | M30x2 22L | 76.5 | 32 | 22 | 14 | 32 |
| RK-2528-ME-L | 25 | 1" | M36x2 28L | 88 | 34 | 28 | 19 | 36 |
| RK-2535-ME-L | 25 | 1" | M45x2 35L | 94 | 40 | 35 | 19 | 46 |
| RK-3235-ME-L | 32 | 1"1/4 | M45x2 35L | 101 | 42 | 35 | 25 | 46 |
| RK-3842-ME-L | 38 | 1"1/2 | M52x2 42L | 112 | 40 | 42 | 29 | 55 |
| S TİPİ / S TYPE | ||||||||
| RK-0812-ME-S | 08 | 5/16 | M20x1,5 12S | 53.5 | 26.5 | 12 | 5.5 | 22 |
| RK-1012-ME-S | 10 | 3/8 | M20x1,5 12S | 56 | 26 | 12 | 7 | 22 |
| RK-1016-ME-S | 10 | 3/8 | M24x1,5 16S | 59.5 | 29.5 | 16 | 7 | 24 |
| RK-1316-ME-S | 12 | 1/2 | M24x1,5 16S | 63 | 30 | 16 | 9 | 24 |
| RK-1616-ME-S | 16 | 5/8 | M24x1,5 16S | 71 | 31 | 16 | 12 | 24 |
| RK-1620-ME-S | 16 | 5/8 | M30x2 20S | 74.5 | 34.5 | 20 | 12 | 32 |
| RK-1920-ME-S | 19 | 3/4 | M30x2 20S | 79 | 35 | 20 | 14 | 32 |
| RK-1925-ME-S | 19 | 3/4 | M36x2 25S | 81.5 | 37.5 | 25 | 14 | 36 |
| RK-2525-ME-S | 25 | 1" | M36x2 25S | 92.5 | 38.5 | 25 | 19 | 36 |
| RK-2530-ME-S | 25 | 1" | M42x2 30S | 97.5 | 43.5 | 30 | 19 | 46 |
| RK-3230-ME-S | 32 | 1"1/4 | M42x2 30S | 104.5 | 45 | 30 | 25 | 46 |
| RK-3238-ME-S | 32 | 1"1/4 | M52x2 38S | 108 | 49 | 38 | 25 | 55 |
| RK-3838-ME-S | 38 | 1"1/2 | M52x2 38S | 121 | 49 | 38 | 29 | 55 |
