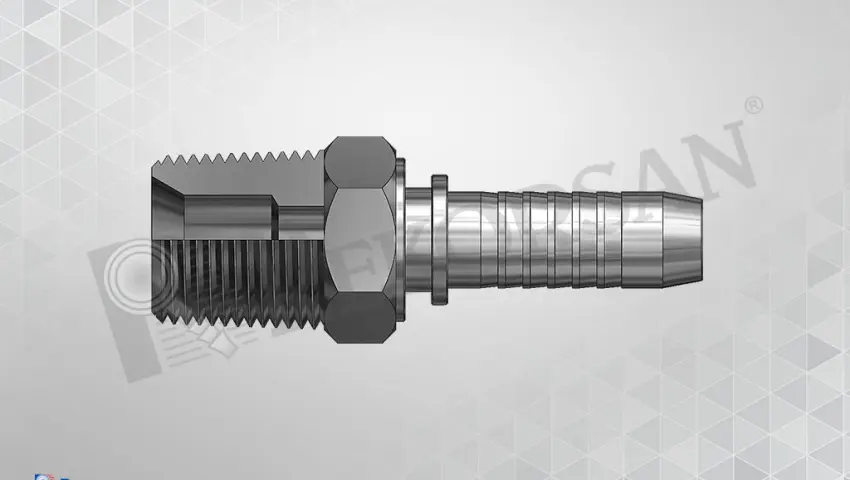

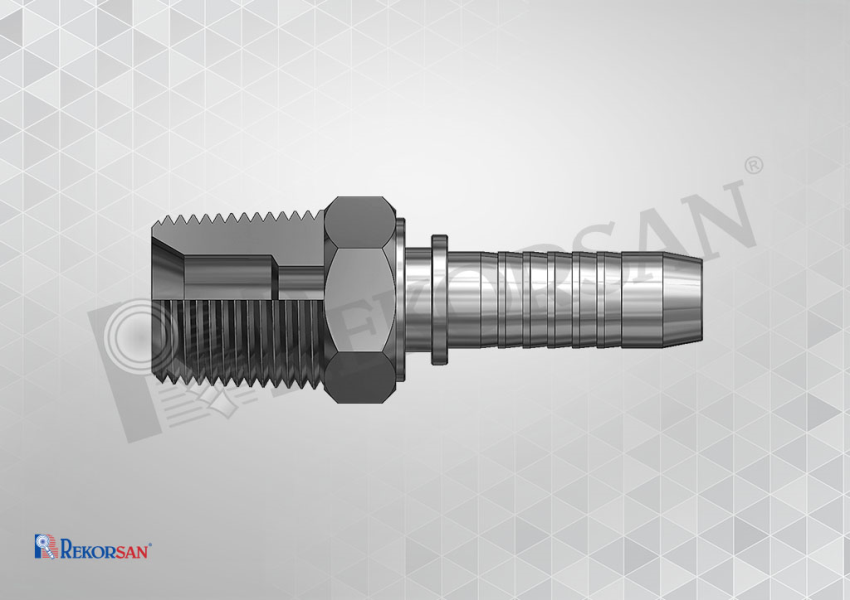

BSPT ERKEK HORTUM RAKORU
BSPT ERKEK HORTUM RAKORU
| BSPT ERKEK HORTUM RAKORLARI BSPT MALE STRAIGHT HOSE FITTINGS | |||||||

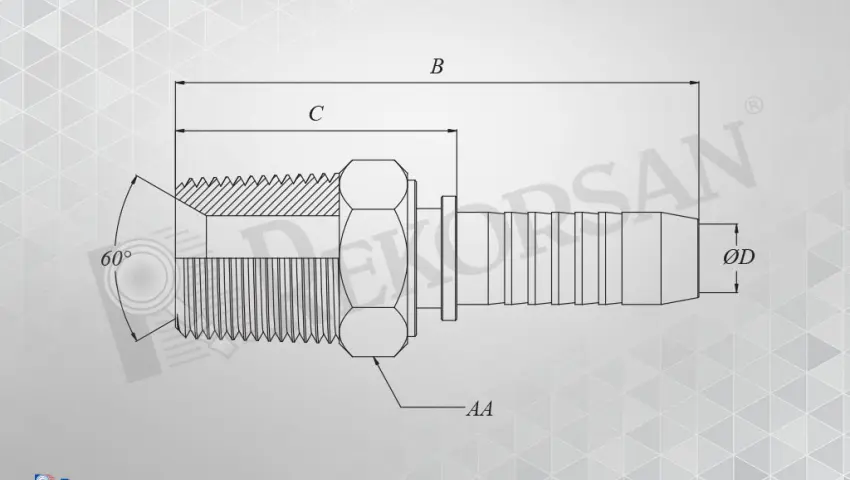

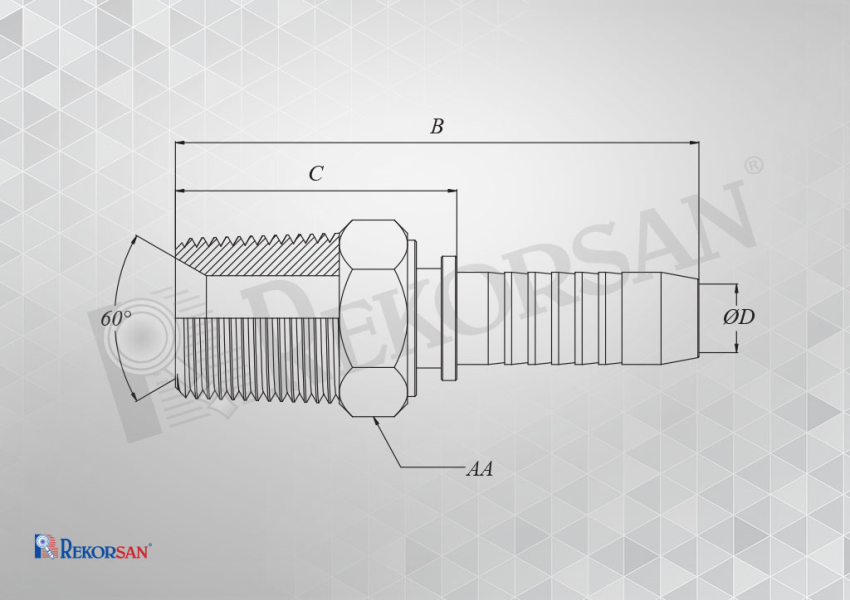

| MALZEME KODU MATERIAL CODE | HORTUM ÖLÇÜSÜ HOSE SIZE | DİŞ ÖLÇÜSÜ THREAD SIZE | B | C | ØD | AA | |
| mm | inch | ||||||
| RK-0510-NE | 05 | 3/16 | 1/8-28 BSPT | 42.5 | 21.5 | 3.2 | 12 |
| RK-0610-NE | 06 | 1/4 | 1/8-28 BSPT | 47 | 22 | 4 | 12 |
| RK-0613-NE | 06 | 1/4 | 1/4-19 BSPT | 52.5 | 27.5 | 4 | 14 |
| RK-0617-NE | 06 | 1/4 | 3/8-19 BSPT | 53.5 | 28.5 | 4 | 19 |
| RK-0621-NE | 06 | 1/4 | 1/2-14 BSPT | 58 | 33 | 4 | 22 |
| RK-0813-NE | 08 | 5/16 | 1/4-19 BSPT | 54.5 | 27.5 | 5.5 | 14 |
| RK-0817-NE | 08 | 5/16 | 3/8-19 BSPT | 55.5 | 28.5 | 5.5 | 19 |
| RK-0821-NE | 08 | 5/16 | 1/2-14 BSPT | 60 | 33 | 5.5 | 22 |
| RK-1013-NE | 10 | 3/8 | 1/4-19 BSPT | 57.5 | 27.5 | 7 | 14 |
| RK-1017-NE | 10 | 3/8 | 3/8-19 BSPT | 58.5 | 28.5 | 7 | 19 |
| RK-1021-NE | 10 | 3/8 | 1/2-14 BSPT | 63 | 33 | 7 | 22 |
| RK-1321-NE | 12 | 1/2 | 1/2-14 BSPT | 66.5 | 33.5 | 9 | 22 |
| RK-1327-NE | 12 | 1/2 | 3/4-14 BSPT | 70.5 | 37.5 | 9 | 27 |
| RK-1627-NE | 16 | 5/8 | 3/4-14 BSPT | 78.5 | 38.5 | 12 | 27 |
| RK-1927-NE | 19 | 3/4 | 3/4-14 BSPT | 83 | 39 | 14 | 27 |
| RK-2533-NE | 25 | 1" | 1"-11 BSPT | 99 | 45 | 19 | 36 |
| RK-3242-NE | 32 | 1"1/4 | 1"1/4-11 BSPT | 108.5 | 49.5 | 25 | 46 |
| RK-3848-NE | 38 | 1"1/2 | 1"1/2-11 BSPT | 123 | 51 | 29 | 50 |
| RK-5060-NE | 50 | 2" | 2"-11 BSPT | 114 | 54 | 41 | 65 |
