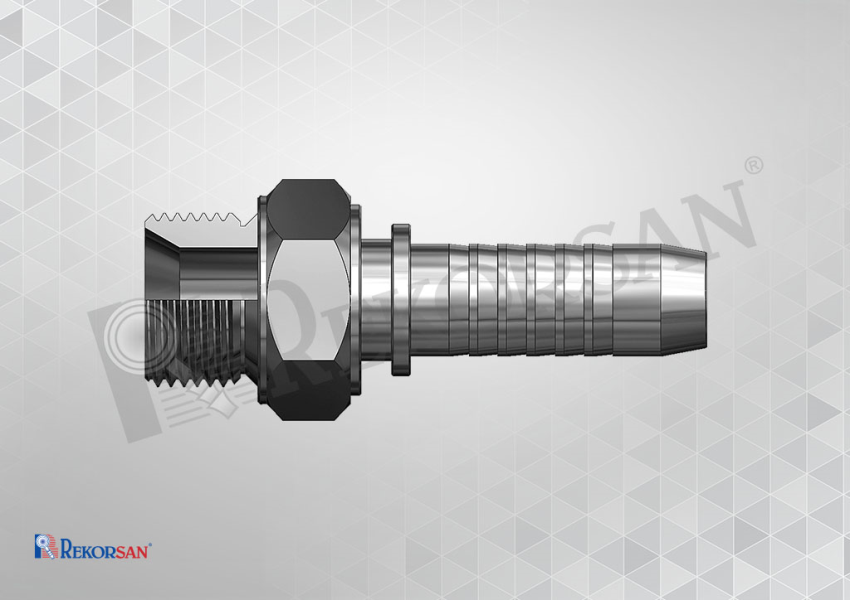

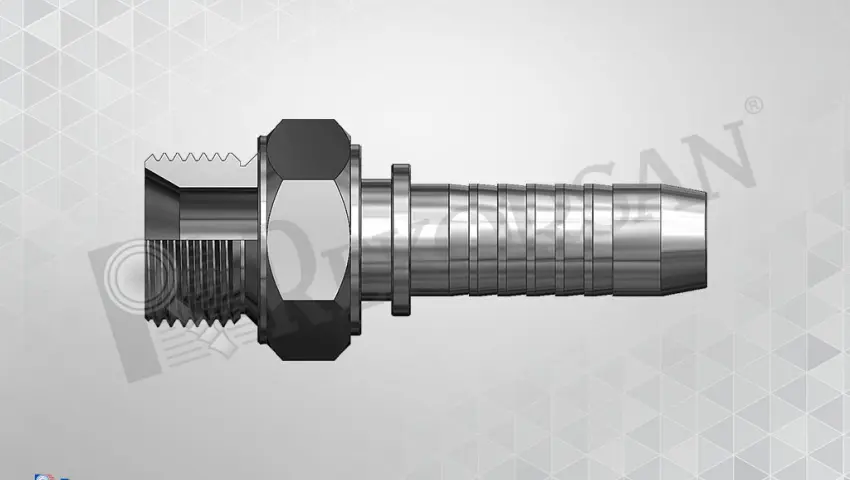

BSP PUL SIKMALI ERKEK HORTUM RAKORU
BSP PUL SIKMALI ERKEK HORTUM RAKORU

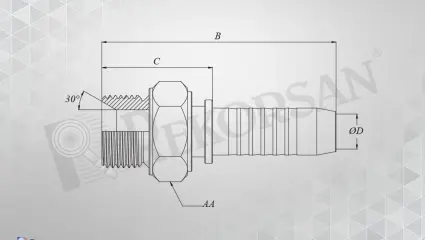

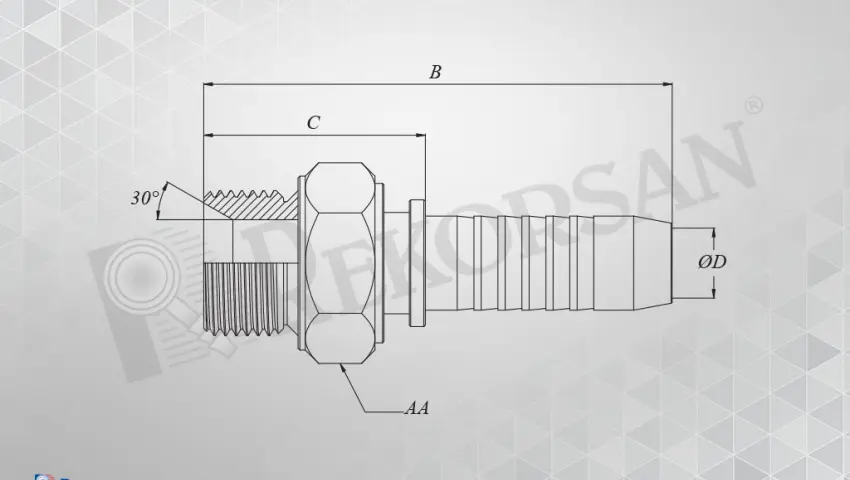

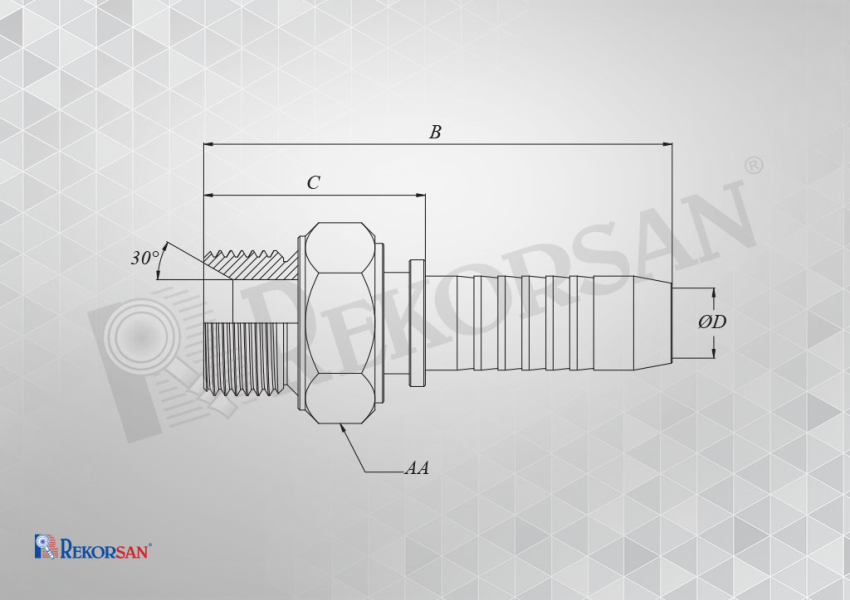

| BSP PUL SIKMALI ERKEK HORTUM RAKORLARI BSP MALE STRAIGHT HOSE FITTINGS - METAL SEALİNG EDGE | |||||||
| MALZEME KODU MATERIAL CODE | HORTUM ÖLÇÜSÜ HOSE SIZE | DİŞ ÖLÇÜSÜ THREAD SIZE | B | C | ØD | AA | |
| mm | inch | ||||||
| RK-0510-RE | 05 | 3/16 | R1/8-28 | 41.5 | 20.5 | 3.2 | 14 |
| RK-0610-RE | 06 | 1/4 | R1/8-28 | 46 | 20.5 | 4 | 14 |
| RK-0613-RE | 06 | 1/4 | R1/4-19 | 50 | 24 | 4 | 19 |
| RK-0617-RE | 06 | 1/4 | R3/8-19 | 51.5 | 26.5 | 4 | 22 |
| RK-0621-RE | 06 | 1/4 | R1/2-14 | 55 | 30 | 4 | 27 |
| RK-0821-RE | 08 | 5/16 | R1/2-14 | 57 | 30 | 5.5 | 27 |
| RK-1017-RE | 10 | 3/8 | R3/8-19 | 56.5 | 26.5 | 7 | 22 |
| RK-1021-RE | 10 | 3/8 | R1/2-14 | 60 | 30 | 7 | 27 |
| RK-1321-RE | 12 | 1/2 | R1/2-14 | 63.5 | 30.5 | 9 | 27 |
| RK-1626-RE | 16 | 5/8 | R3/4-14 | 74.5 | 34.5 | 12 | 32 |
| RK-1633-RE | 16 | 5/8 | R1"-11 | 78.5 | 38.5 | 12 | 41 |
| RK-1926-RE | 19 | 3/4 | R3/4-14 | 79 | 35 | 14 | 32 |
| RK-2533-RE | 25 | 1" | R1"-11 | 94 | 40 | 19 | 41 |
| RK-3242-RE | 32 | 1"1/4 | R1"1/4-11 | 106.5 | 47.5 | 25 | 50 |
| RK-3848-RE | 38 | 1"1/2 | R1"1/2-11 | 121 | 49 | 29 | 55 |
