BSPT - UNF DİRSEKLER
BSPT - UNF DİRSEKLER

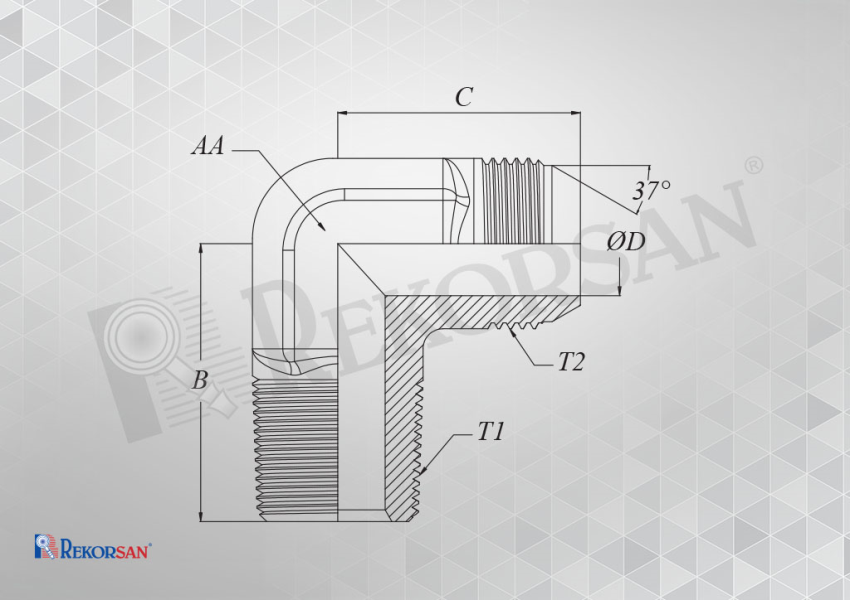

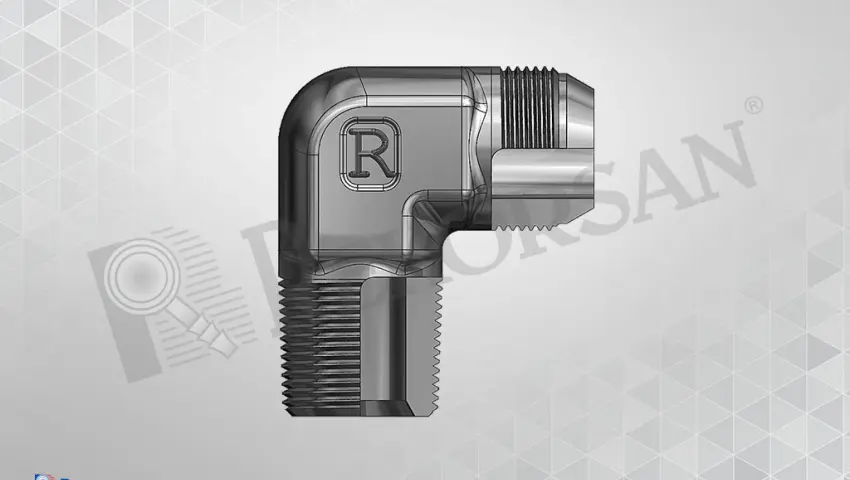

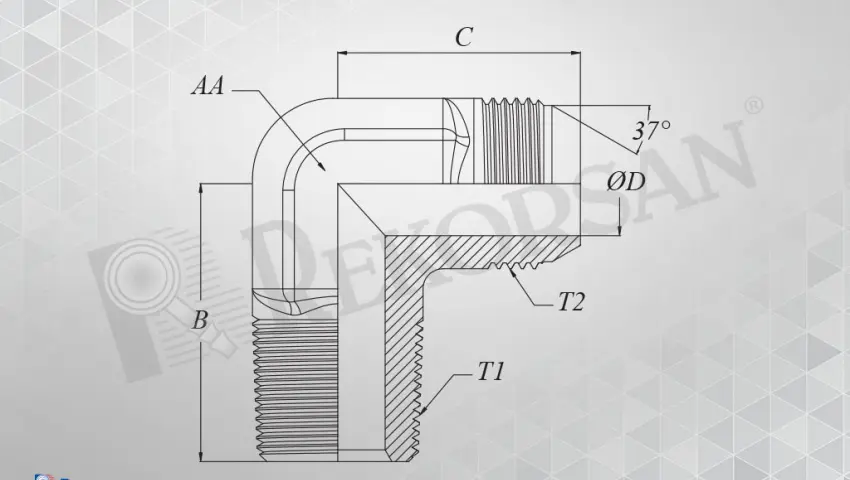

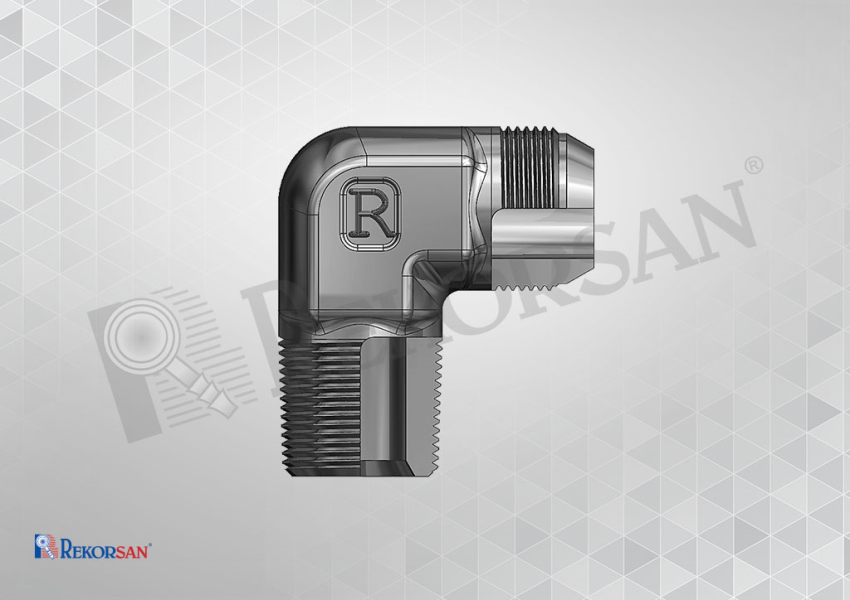

| BSPT - UNF DİRSEKLER UNF 37° FLARE END - MALE BSPT THREAD ELBOWS | ||||||
| MALZEME KODU MATERIAL CODE | DİŞ ÖLÇÜSÜ THREAD SIZE T1 | DİŞ ÖLÇÜSÜ THREAD SIZE T2 | B | C | ØD | AA |
| RK-1011-NWD | 1/8-28 BSPT | 7/16-20 UNF | 20 | 20 | 4.5 | 12 |
| RK-1311-NWD | 1/4-19 BSPT | 7/16-20 UNF | 28 | 23 | 4.5 | 14 |
| RK-1312-NWD | 1/4-19 BSPT | 1/2-20 UNF | 28 | 23 | 6 | 14 |
| RK-1314-NWD | 1/4-19 BSPT | 9/16-18 UNF | 29 | 25 | 7.5 | 17 |
| RK-1316-NWD | 1/4-19 BSPT | 5/8-18 UNF | 29 | 25 | 8 | 17 |
| RK-1319-NWD | 1/4-19 BSPT | 3/4-16 UNF | 30 | 30 | 10 | 17 |
| RK-1712-NWD | 3/8-19 BSPT | 1/2-20 UNF | 28.5 | 25 | 6 | 17 |
| RK-1714-NWD | 3/8-19 BSPT | 9/16-18 UNF | 28.5 | 25 | 7.5 | 17 |
| RK-1716-NWD | 3/8-19 BSPT | 5/8-18 UNF | 28.5 | 25 | 8 | 17 |
| RK-1719-NWD | 3/8-19 BSPT | 3/4-16 UNF | 30 | 30 | 10 | 17 |
| RK-2114-NWD | 1/2-14 BSPT | 9/16-18 UNF | 32.5 | 28.5 | 7.5 | 19 |
| RK-2116-NWD | 1/2-14 BSPT | 5/8-18 UNF | 32.5 | 28.5 | 8 | 19 |
| RK-2119-NWD | 1/2-14 BSPT | 3/4-16 UNF | 32.5 | 28.5 | 10 | 19 |
| RK-2122-NWD | 1/2-14 BSPT | 7/8-14 UNF | 34.5 | 33.5 | 12.5 | 24 |
| RK-2127-NWD | 1/2-14 BSPT | 1"1/16-12 UNF | 40 | 37.5 | 15.5 | 27 |
| RK-2619-NWD | 3/4-14 BSPT | 3/4-16 UNF | 42 | 37.5 | 10 | 27 |
| RK-2622-NWD | 3/4-14 BSPT | 7/8-14 UNF | 42 | 37.5 | 12.5 | 27 |
| RK-2627-NWD | 3/4-14 BSPT | 1"1/16-12 UNF | 42 | 37.5 | 15.5 | 27 |
| RK-3327-NWD | 1"-11 BSPT | 1"1/16-12 UNF | 45.5 | 43 | 15.5 | 36 |
| RK-3333-NWD | 1"-11 BSPT | 1"5/16-12 UNF | 45.5 | 42.5 | 21.5 | 36 |
