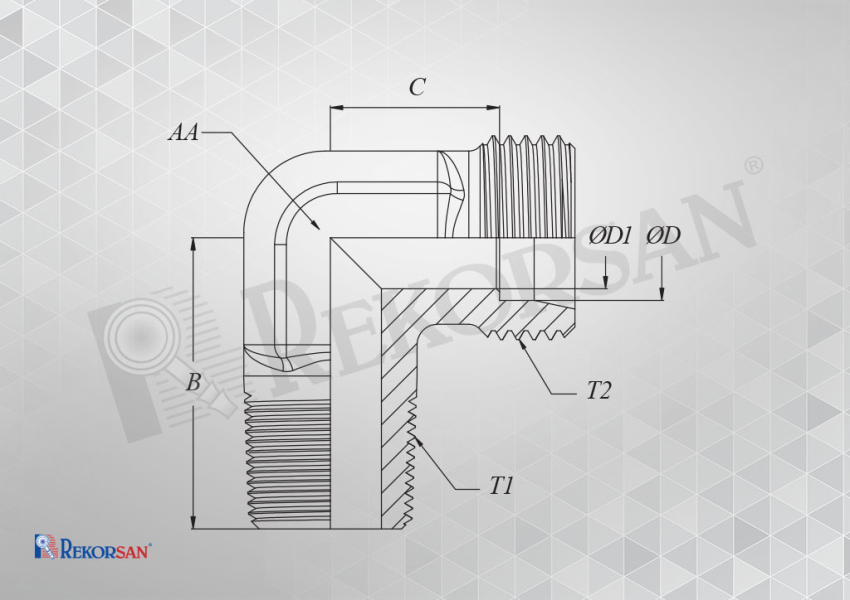

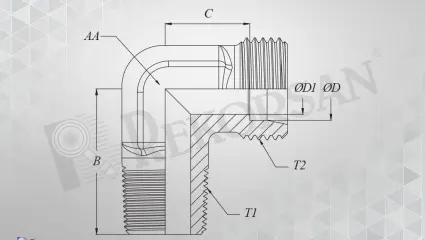

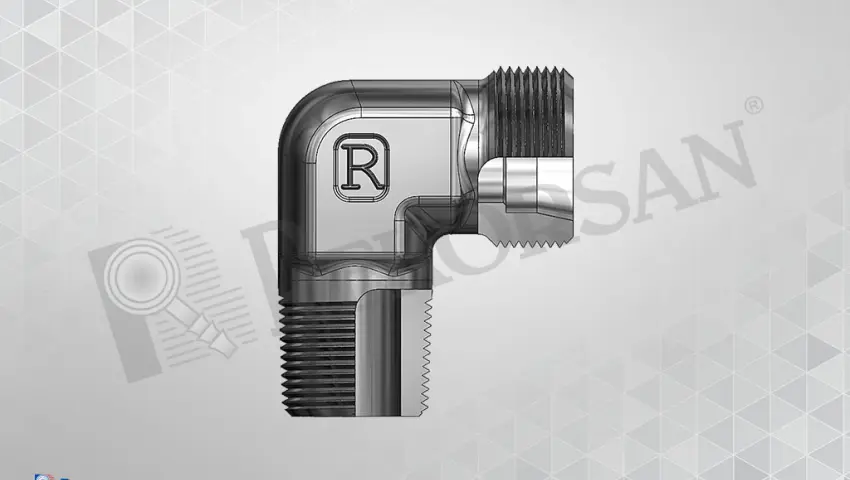

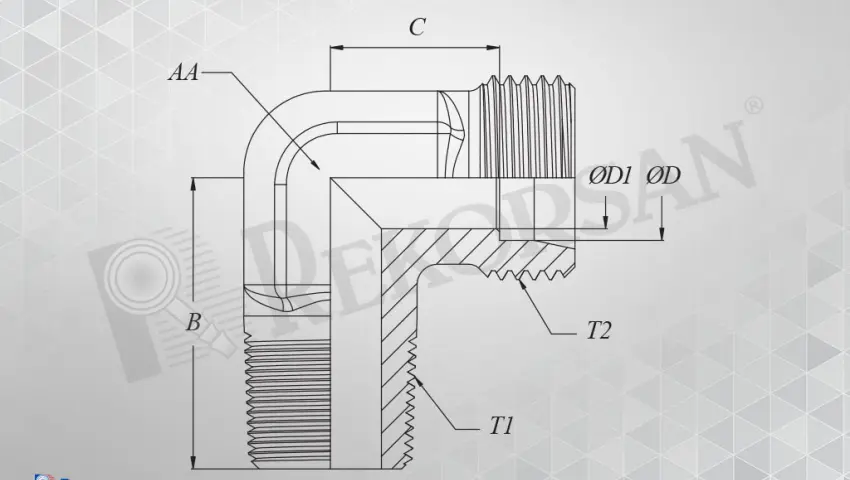

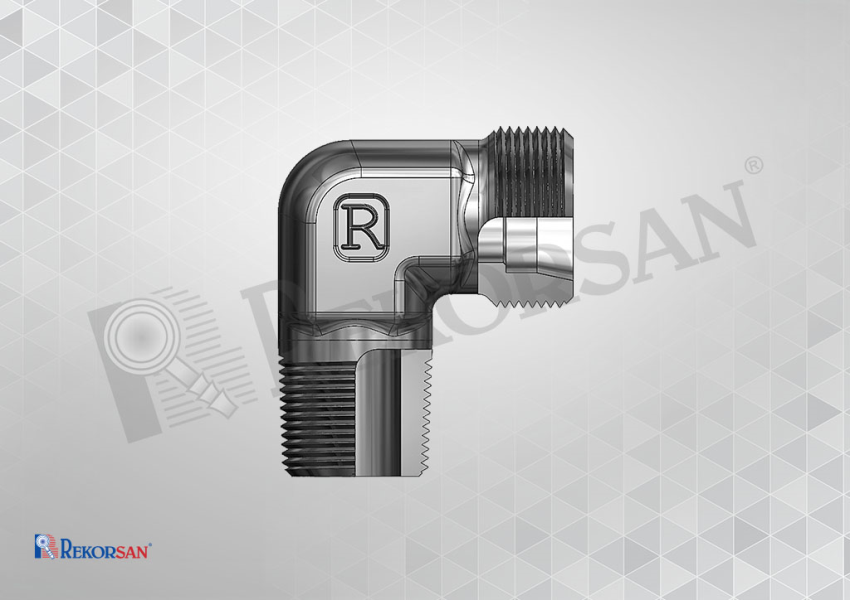

| BSPT - METRİK DİRSEKLER METRIC 24° CONE END - MALE BSPT THREAD ELBOWS | |||||||
| MALZEME KODU MATERIAL CODE | DİŞ ÖLÇÜSÜ THREAD SIZE T1 | DİŞ ÖLÇÜSÜ THREAD SIZE T2 | B | C | ØD | ØD1 | AA |
| L TİPİ / L TYPE | |||||||
| RK-1006-NMD-LL | 1/8-28 BSPT | M10x1 6LL | 19 | 12.5 | 6 | 4.5 | 12 |
| RK-1006-NMD-L | 1/8-28 BSPT | M12x1,5 6L | 20 | 13 | 6 | 4 | 12 |
| RK-1008-NMD-L | 1/8-28 BSPT | M14x1,5 8L | 22 | 14 | 8 | 6 | 12 |
| RK-1306-NMD-L | 1/4-19 BSPT | M12x1,5 6L | 28 | 14 | 6 | 4 | 14 |
| RK-1308-NMD-L | 1/4-19 BSPT | M14x1,5 8L | 28 | 14 | 8 | 6 | 14 |
| RK-1310-NMD-L | 1/4-19 BSPT | M16x1,5 10L | 28 | 15 | 10 | 8 | 14 |
| RK-1312-NMD-L | 1/4-19 BSPT | M18x1,5 12L | 28.5 | 17 | 12 | 10 | 17 |
| RK-1708-NMD-L | 3/8-19 BSPT | M14x1,5 8L | 28.5 | 14.5 | 8 | 6 | 17 |
| RK-1710-NMD-L | 3/8-19 BSPT | M16x1,5 10L | 28.5 | 17 | 10 | 8 | 17 |
| RK-1712-NMD-L | 3/8-19 BSPT | M18x1,5 12L | 28.5 | 17 | 12 | 10 | 17 |
| RK-2110-NMD-L | 1/2-14 BSPT | M16x1,5 10L | 32 | 20 | 10 | 8 | 19 |
| RK-2112-NMD-L | 1/2-14 BSPT | M18x1,5 12L | 32 | 21 | 12 | 10 | 19 |
| RK-2115-NMD-L | 1/2-14 BSPT | M22x1,5 15L | 32 | 21 | 15 | 12 | 19 |
| RK-2118-NMD-L | 1/2-14 BSPT | M26x1,5 18L | 34.5 | 24 | 18 | 15 | 24 |
| RK-2622-NMD-L | 3/4-14 BSPT | M30x2 22L | 42 | 27.5 | 22 | 19 | 27 |
| RK-3328-NMD-L | 1"-11 BSPT | M36x2 28L | 46 | 31 | 28 | 24 | 36 |
| RK-4235-NMD-L | 1"1/4-11 BSPT | M45x2 35L | 49 | 34.5 | 35 | 30 | 41 |
| RK-4842-NMD-L | 1"1/2-11 BSPT | M52x2 42L | 60 | 40 | 42 | 36 | 50 |
| S TİPİ / S TYPE | |||||||
| RK-1306-NMD-S | 1/4-19 BSPT | M14x1,5 6S | 28 | 15.5 | 6 | 4 | 14 |
| RK-1308-NMD-S | 1/4-19 BSPT | M16x1,5 8S | 28 | 15.5 | 8 | 5 | 14 |
| RK-1310-NMD-S | 1/4-19 BSPT | M18x1,5 10S | 28.5 | 16.5 | 10 | 7 | 17 |
| RK-1708-NMD-S | 3/8-19 BSPT | M16x1,5 8S | 28.5 | 16.5 | 8 | 5 | 17 |
| RK-1710-NMD-S | 3/8-19 BSPT | M18x1,5 10S | 28.5 | 16.5 | 10 | 7 | 17 |
| RK-1712-NMD-S | 3/8-19 BSPT | M20x1,5 12S | 28.5 | 21.5 | 12 | 8 | 17 |
| RK-1716-NMD-S | 3/8-19 BSPT | M24x1,5 16S | 34 | 24.5 | 16 | 12 | 24 |
| RK-2112-NMD-S | 1/2-14 BSPT | M20x1,5 12S | 32 | 20.5 | 12 | 8 | 19 |
| RK-2116-NMD-S | 1/2-14 BSPT | M24x1,5 16S | 34 | 24.5 | 16 | 12 | 24 |
| RK-2120-NMD-S | 1/2-14 BSPT | M30x2 20S | 42 | 26.5 | 20 | 16 | 27 |
| RK-2616-NMD-S | 3/4-14 BSPT | M24x1,5 16S | 42 | 28.5 | 16 | 12 | 27 |
| RK-2620-NMD-S | 3/4-14 BSPT | M30x2 20S | 42 | 26.5 | 20 | 16 | 27 |
| RK-2625-NMD-S | 3/4-14 BSPT | M36x2 25S | 42.5 | 30 | 25 | 20 | 36 |
| RK-3320-NMD-S | 1"-11 BSPT | M30x2 20S | 46 | 32 | 20 | 16 | 36 |
| RK-3325-NMD-S | 1"-11 BSPT | M36x2 25S | 46 | 30 | 25 | 20 | 36 |
| RK-3330-NMD-S | 1"-11 BSPT | M42x2 30S | 49.5 | 35.5 | 30 | 25 | 41 |
| RK-4230-NMD-S | 1"1/4-11 BSPT | M42x2 30S | 49.5 | 35.5 | 30 | 25 | 41 |
| RK-4238-NMD-S | 1"1/4-11 BSPT | M52x2 38S | 60 | 42 | 38 | 32 | 50 |
| RK-4838-NMD-S | 1"1/2-11 BSPT | M52x2 38S | 60 | 41 | 38 | 32 | 50 |
