BSP - METRİK OPSİYONEL TERS TE
BSP - METRİK OPSİYONEL TERS TE

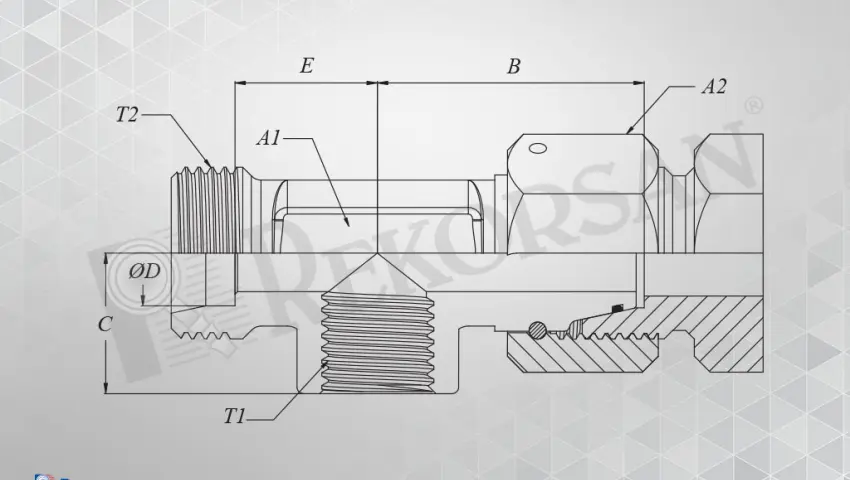

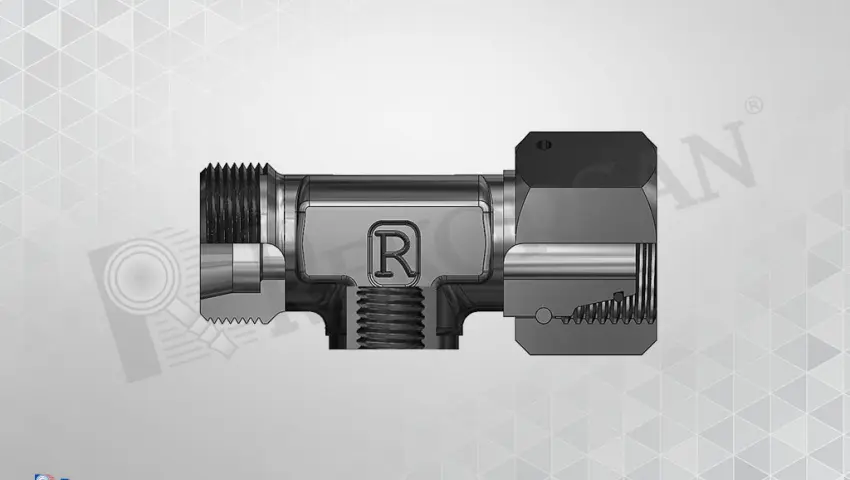

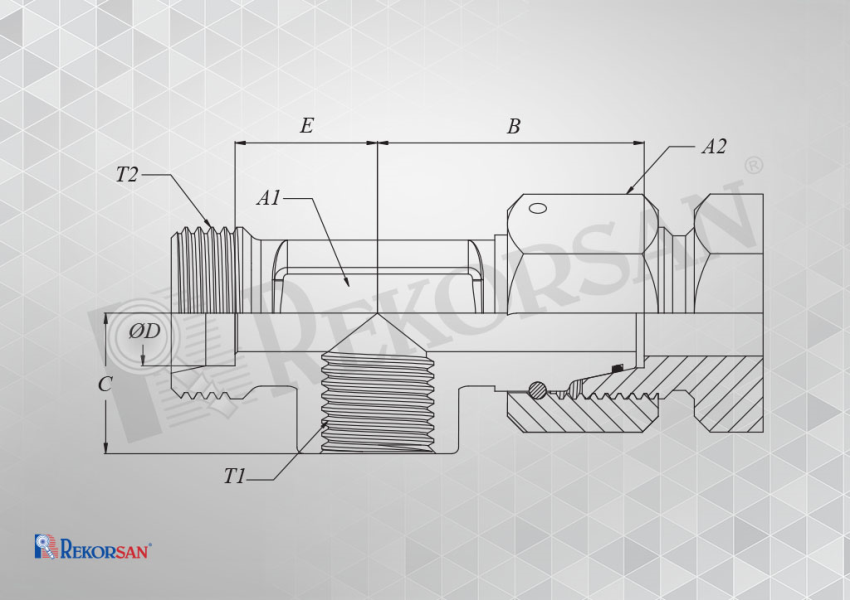

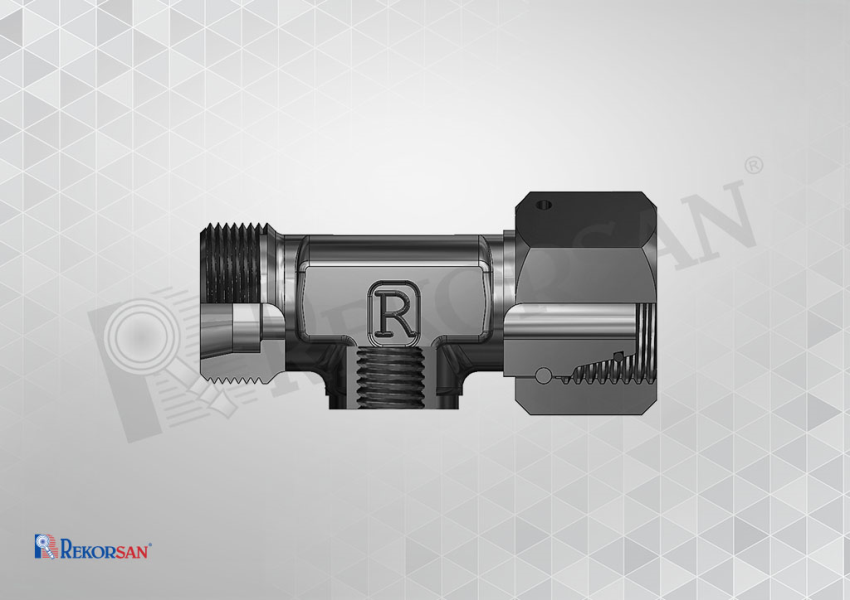

| BSP - METRİK OPSİYONEL TERS TE METRIC MALE 24° CONE - FEMALE BSP THREAD - METRIC SWIVEL RUN TEE | |||||||||
| MALZEME KODU MATERIAL CODE | DİŞ ÖLÇÜSÜ THREAD SIZE T1 | DİŞ ÖLÇÜSÜ THREAD SIZE T2 | DİŞ ÖLÇÜSÜ THREAD SIZE T2 | B | E | C | ØD | A1 | A2 |
| RK-1316-RMTOP | R1/4-19 | M24x1,5 16S | M24x1,5 16S | 36.5 | 24.5 | 21.5 | 16 | 24 | 30 |
| RK-1320-RMTOP | R1/4-19 | M30x2 20S | M30x2 20S | 44.5 | 26.5 | 23 | 20 | 27 | 36 |
| RK-1716-RMTOP | R3/8-19 | M24x1,5 16S | M24x1,5 16S | 36.5 | 24.5 | 21.5 | 16 | 24 | 30 |
| RK-1720-RMTOP | R3/8-19 | M30x2 20S | M30x2 20S | 44.5 | 26.5 | 23 | 20 | 27 | 36 |
| RK-2125-RMTOP | R1/2-21 | M36x2 25S | M36x2 25S | 50 | 30 | 29 | 25 | 36 | 46 |
