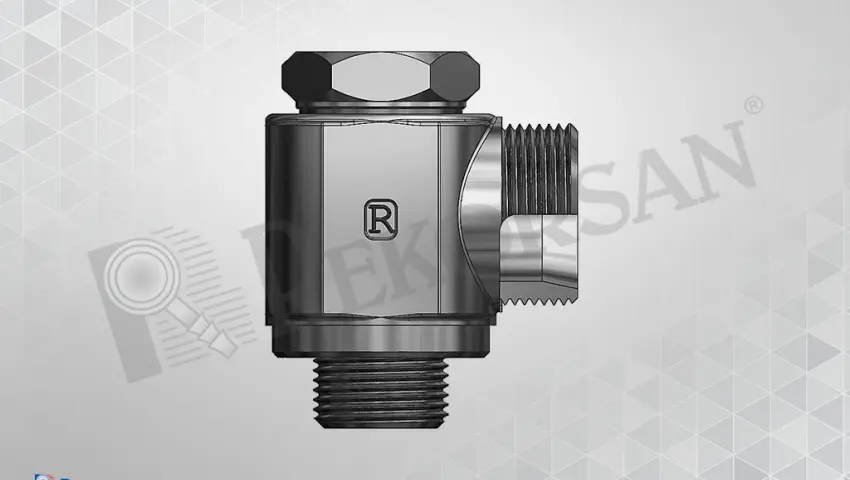

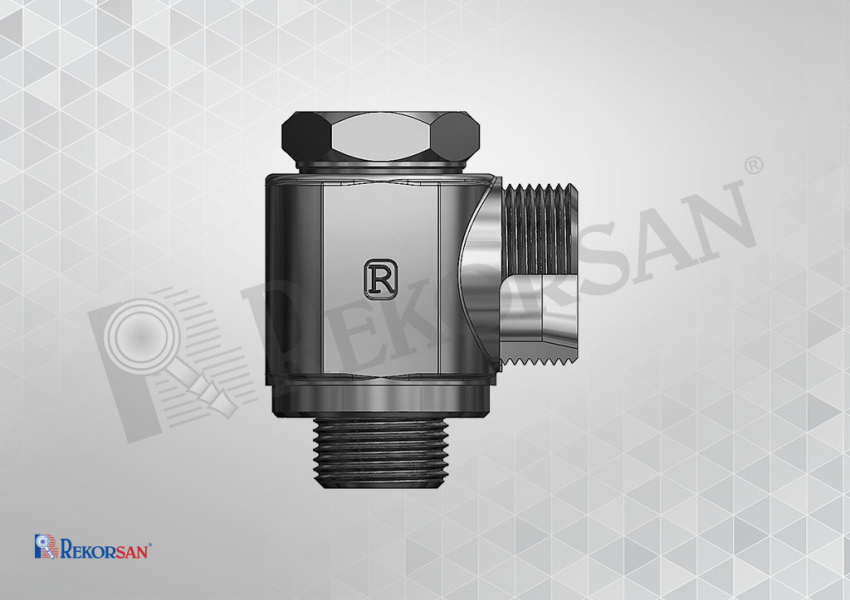

| BSP - METRİK DÖNER DİRSEK METRIC 24° CONE - MALE BSP STUD BANJO ELBOW | |||||||||||

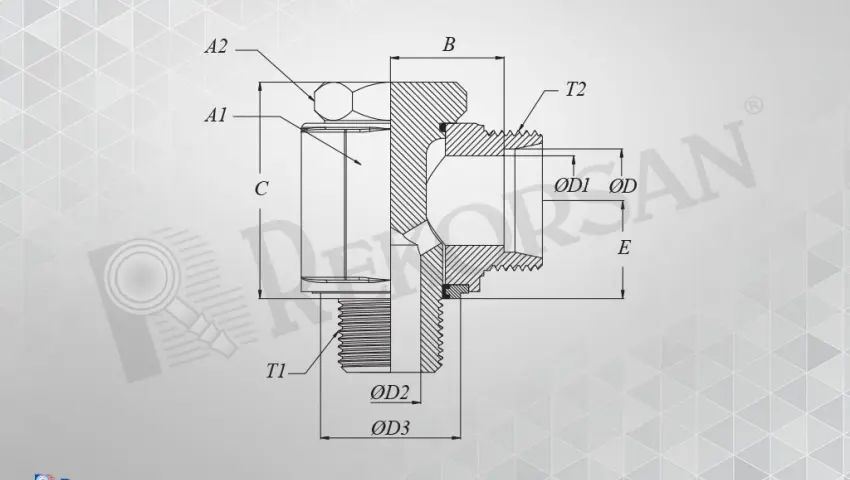

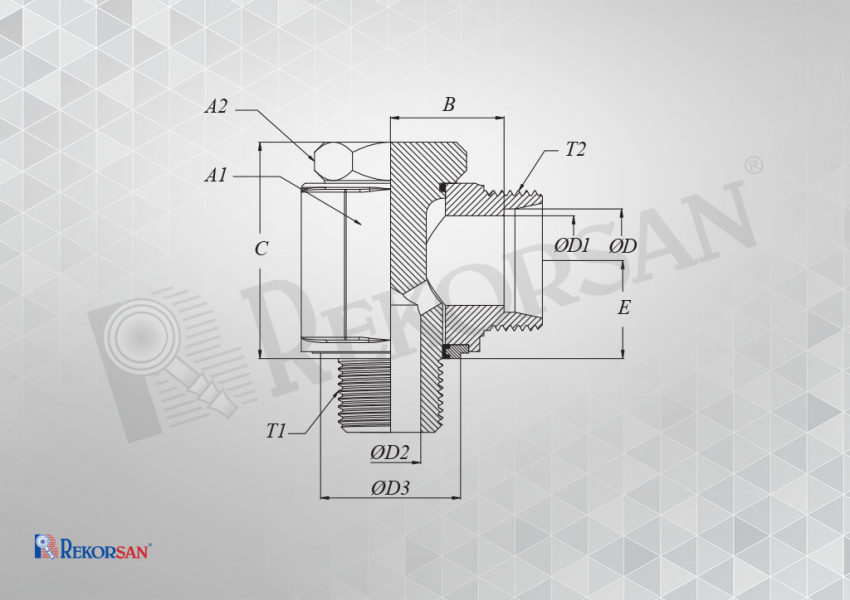

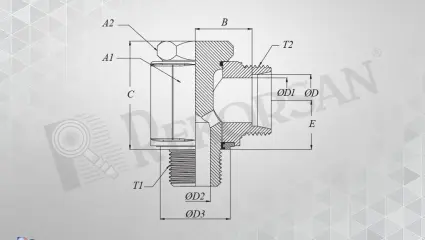

| MALZEME KODU MATERIAL CODE | DİŞ ÖLÇÜSÜ THREAD SIZE T1 | DİŞ ÖLÇÜSÜ THREAD SIZE T2 | ØD | ØD1 | ØD2 | ØD3 | B | C | E | A1 | A2 |
| L TİPİ / L TYPE | |||||||||||
| RK-1006-RMDD-L | R1/8-28 | M12x1,5 6L | 6 | 4 | 4.5 | 14 | 12 | 25 | 10.5 | 17 | 14 |
| RK-1008-RMDD-L | R1/8-28 | M14x1,5 8L | 8 | 6 | 4.5 | 14 | 12 | 25 | 10.5 | 17 | 14 |
| RK-1306-RMDD-L | R1/4-19 | M12x1,5 6L | 6 | 4 | 5 | 17.5 | 14.5 | 29.5 | 14 | 22 | 19 |
| RK-1308-RMDD-L | R1/4-19 | M14x1,5 8L | 8 | 6 | 5 | 17.5 | 14.5 | 29.5 | 14 | 22 | 19 |
| RK-1310-RMDD-L | R1/4-19 | M16x1,5 10L | 10 | 8 | 5 | 17.5 | 16 | 29.5 | 14 | 22 | 19 |
| RK-1312-RMDD-L | R1/4-19 | M18x1,5 12L | 12 | 10 | 5 | 17.5 | 16.5 | 29.5 | 14 | 22 | 19 |
| RK-1706-RMDD-L | R3/8-19 | M12x1,5 6L | 6 | 4 | 8 | 21.5 | 17.5 | 35.5 | 16.5 | 27 | 22 |
| RK-1708-RMDD-L | R3/8-19 | M14x1,5 8L | 8 | 6 | 8 | 21.5 | 17.5 | 35.5 | 16.5 | 27 | 22 |
| RK-1710-RMDD-L | R3/8-19 | M16x1,5 10L | 10 | 8 | 8 | 21.5 | 18 | 35.5 | 16.5 | 27 | 22 |
| RK-1712-RMDD-L | R3/8-19 | M18x1,5 12L | 12 | 10 | 8 | 21.5 | 18 | 35.5 | 16.5 | 27 | 22 |
| RK-2110-RMDD-L | R1/2-14 | M16x1,5 10L | 10 | 8 | 11 | 27 | 21 | 45 | 21.5 | 32 | 27 |
| RK-2112-RMDD-L | R1/2-14 | M18x1,5 12L | 12 | 10 | 11 | 27 | 21 | 45 | 21.5 | 32 | 27 |
| RK-2115-RMDD-L | R1/2-14 | M22x1,5 15L | 15 | 12 | 11 | 27 | 21.5 | 45 | 21.5 | 32 | 27 |
| RK-2118-RMDD-L | R1/2-14 | M26x1,5 18L | 18 | 15 | 11 | 27 | 21 | 45 | 21.5 | 32 | 27 |
| RK-2618-RMDD-L | R3/4-14 | M26x1,5 18L | 18 | 15 | 15 | 32.5 | 26.5 | 53 | 24 | 41 | 32 |
| RK-2622-RMDD-L | R3/4-14 | M30x2 22L | 22 | 19 | 15 | 32.5 | 27.5 | 53 | 24 | 41 | 32 |
| RK-3328-RMDD-L | R1"-11 | M36x2 28L | 28 | 24 | 17.5 | 39.5 | 32 | 63 | 30.5 | 50 | 41 |
| RK-4235-RMDD-L | R1"1/4-11 | M45x2 35L | 35 | 30 | 24.5 | 49 | 36 | 74 | 35.5 | 60 | 50 |
| RK-4842-RMDD-L | R1"1/2-11 | M52x2 42L | 42 | 36 | 30 | 56 | 40.5 | 87 | 42.5 | 65 | 55 |
| S TİPİ / S TYPE | |||||||||||
| RK-1306-RMDD-S | R1/4-19 | M14x1,5 6S | 6 | 4 | 5 | 17.5 | 16.5 | 29.5 | 14 | 22 | 19 |
| RK-1308-RMDD-S | R1/4-19 | M16x1,5 8S | 8 | 5 | 5 | 17.5 | 16.5 | 29.5 | 14 | 22 | 19 |
| RK-1710-RMDD-S | R3/8-19 | M18x1,5 10S | 10 | 7 | 8 | 21.5 | 18.5 | 35.5 | 16.5 | 27 | 22 |
| RK-1712-RMDD-S | R3/8-19 | M20x1,5 12S | 12 | 8 | 8 | 21.5 | 19 | 35.5 | 16.5 | 27 | 22 |
| RK-2112-RMDD-S | R1/2-14 | M20x1,5 12S | 12 | 8 | 11 | 27 | 21 | 45 | 21.5 | 32 | 27 |
| RK-2116-RMDD-S | R1/2-14 | M24x1,5 16S | 16 | 12 | 11 | 27 | 22 | 45 | 21.5 | 32 | 27 |
| RK-2120-RMDD-S | R1/2-14 | M30x2 20S | 20 | 16 | 11 | 27 | 23 | 46 | 23 | 35 | 27 |
| RK-2616-RMDD-S | R3/4-14 | M24x1,5 16S | 16 | 12 | 15 | 32.5 | 27 | 53 | 24 | 41 | 32 |
| RK-2620-RMDD-S | R3/4-14 | M30x2 20S | 20 | 16 | 15 | 32.5 | 26.5 | 53 | 24 | 41 | 32 |
| RK-3320-RMDD-S | R1"-11 | M30x2 20S | 20 | 16 | 17.5 | 39.5 | 31.5 | 63 | 30.5 | 50 | 41 |
| RK-3325-RMDD-S | R1"-11 | M36x2 25S | 25 | 20 | 17.5 | 39.5 | 31.5 | 63 | 30.5 | 50 | 41 |
| RK-4230-RMDD-S | R1"1/4-11 | M42x2 30S | 30 | 25 | 24.5 | 49 | 37 | 74 | 35.5 | 60 | 50 |
| RK-4838-RMDD-S | R1"1/2-11 | M52x2 38S | 38 | 32 | 30 | 56 | 39 | 87 | 42.5 | 65 | 55 |
