METRİK VE BSP CİVATA RAKORLARI
METRİK VE BSP CİVATA RAKORLARI

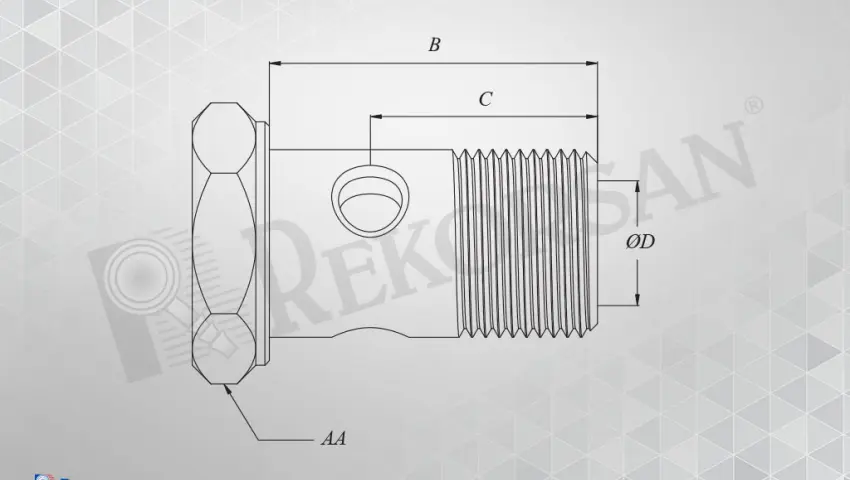

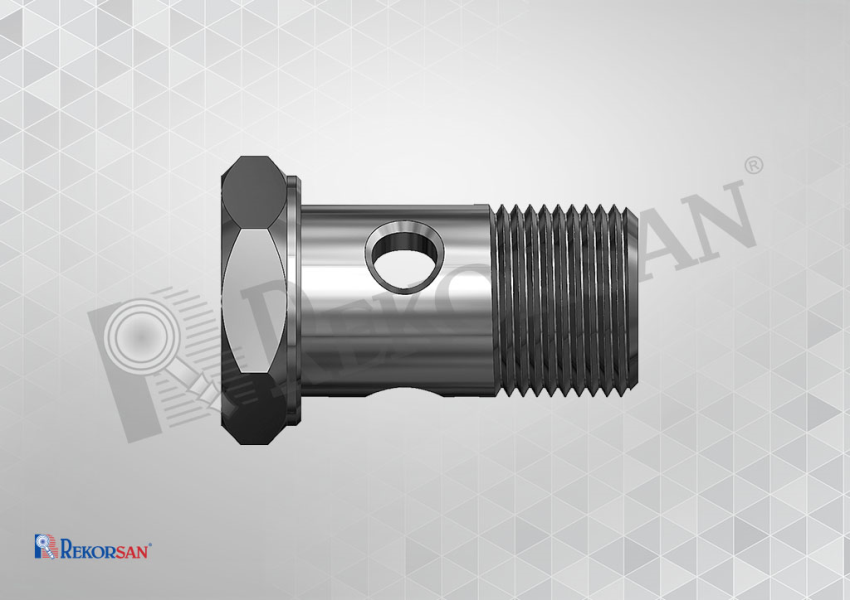

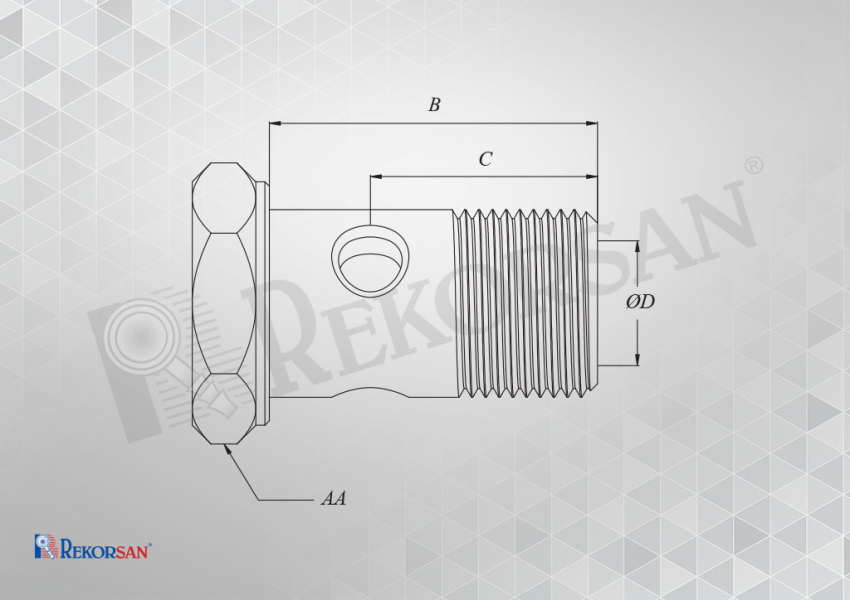

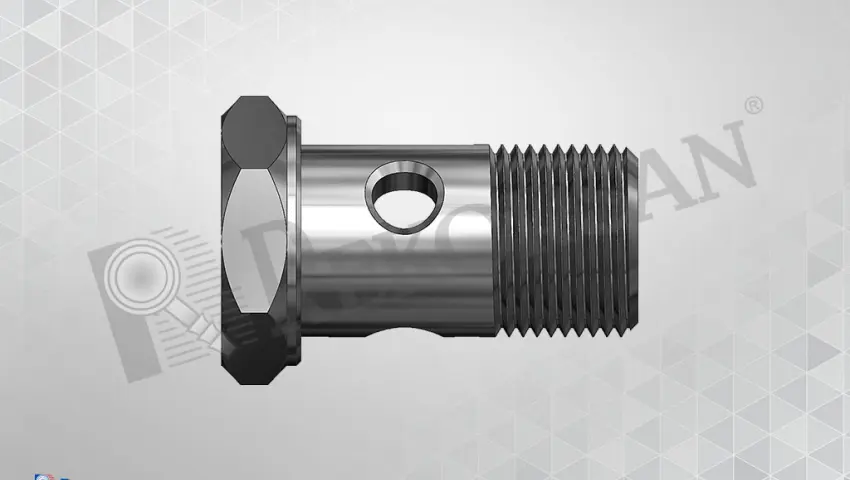

| CİVATA RAKORLARI HOLLOW SCREWS FOR RING-TYPE BANJO BOLTS | |||||
| MALZEME KODU MATERIAL CODE | DİŞ ÖLÇÜSÜ THREAD SIZE T1 | B | C | ØD | AA |
| RK-0812-MCR | M8x1,25 | 16 | 11.5 | 4 | 12 |
| RK-1010-MCR | M10x1 | 20 | 14 | 5.5 | 14 |
| RK-1215-MCR | M12x1,5 | 23.5 | 17 | 6.5 | 17 |
| RK-1415-MCR | M14x1,5 | 26.5 | 18.5 | 7.5 | 19 |
| RK-1615-MCR | M16x1,5 | 30 | 20 | 9 | 22 |
| RK-1815-MCR | M18x1,5 | 34 | 24 | 11 | 24 |
| RK-1028-RCR | R1/8-28 | 20 | 14.5 | 5 | 14 |
| RK-1319-RCR | R1/4-19 | 25.5 | 17.5 | 7 | 17 |
| RK-1719-RCR | R3/8-19 | 30.5 | 21.5 | 10 | 22 |
| RK-2114-RCR | R1/2-14 | 36 | 25 | 12 | 27 |
