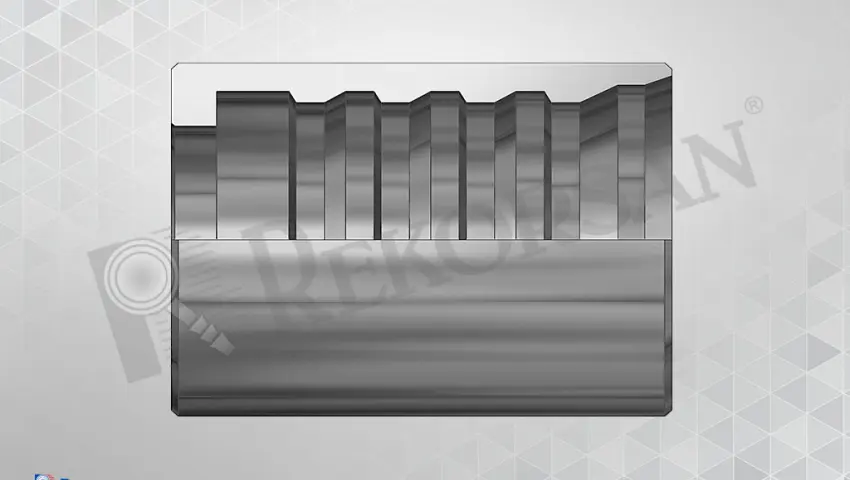

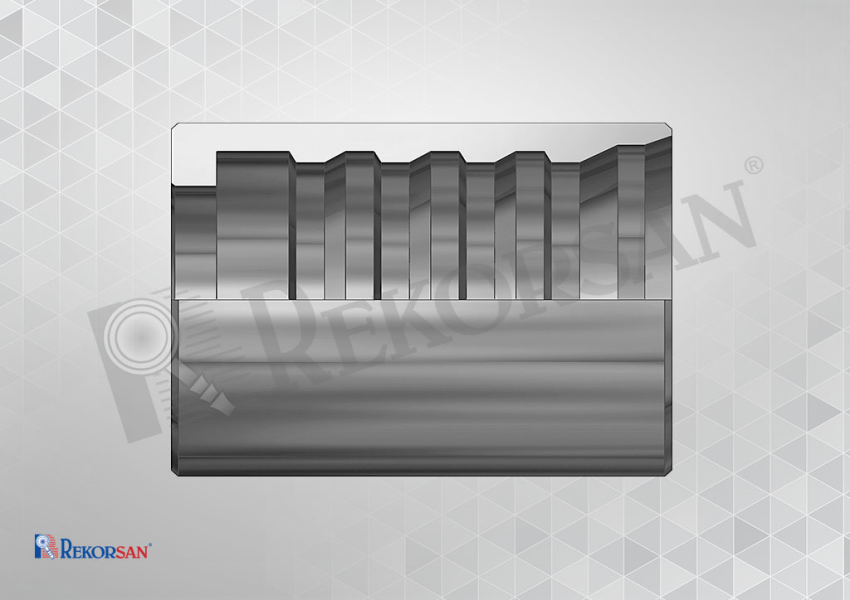

R9 ÇELİK SOKET
R9 ÇELİK SOKET
| R9 ÇELİK SOKETLER R9 STEEL SOCKETS | |||||

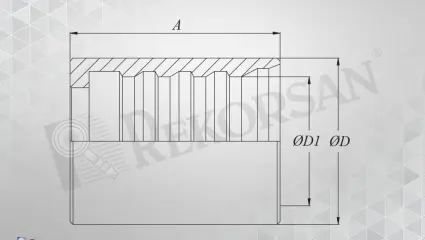

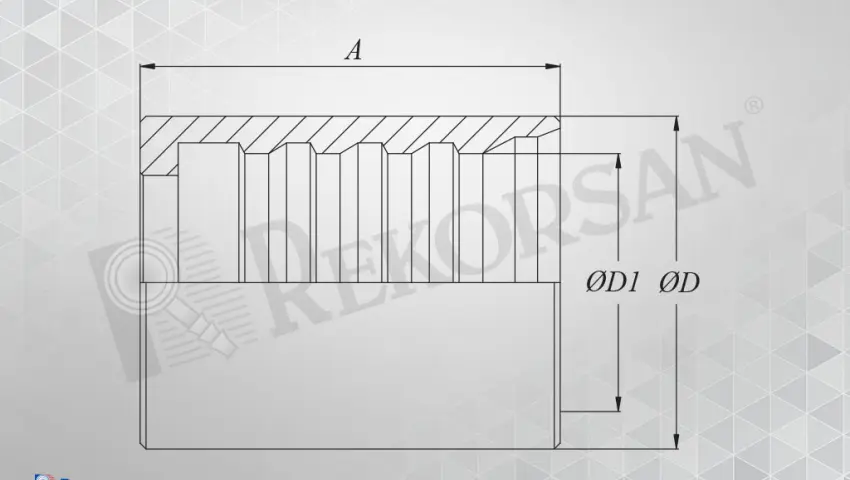

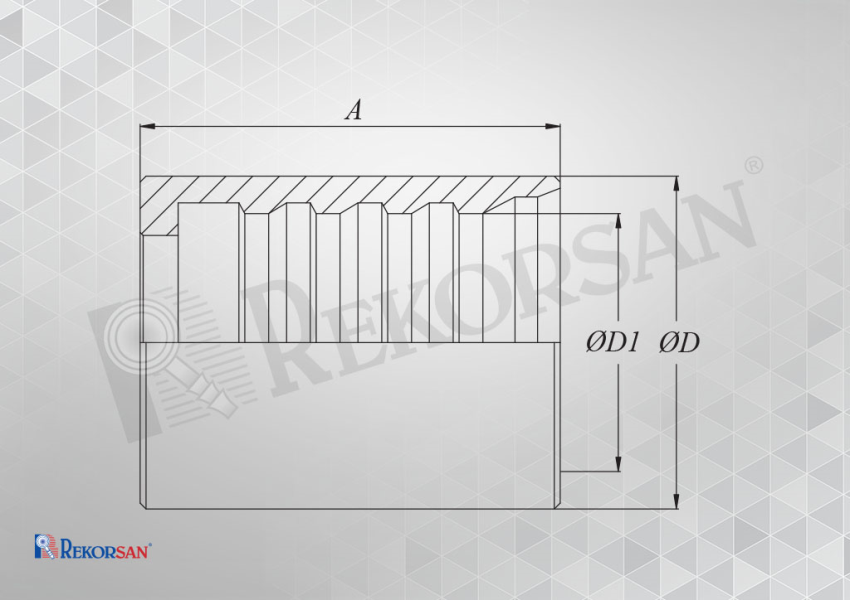

| MALZEME KODU MATERIAL CODE | HORTUM ÖLÇÜSÜ HOSE SIZE | A | ØD | ØD1 | |
| mm | inch | ||||
| RK-1026-ÇS | 10 | 3/8 | 36 | 25 | 18.5 |
| RK-1329-ÇS | 12 | 1/2 | 40 | 28 | 21 |
| RK-1633-ÇS | 16 | 5/8 | 45 | 32 | 25.5 |
| RK-1938-ÇS | 19 | 3/4 | 45 | 38 | 29.5 |
| RK-2545-ÇS | 25 | 1" | 64 | 45 | 36.5 |
| RK-3255-ÇS | 32 | 1"1/4 | 70.5 | 55 | 44.5 |
| RK-3863-ÇS | 38 | 1"1/2 | 71.5 | 62 | 53 |
