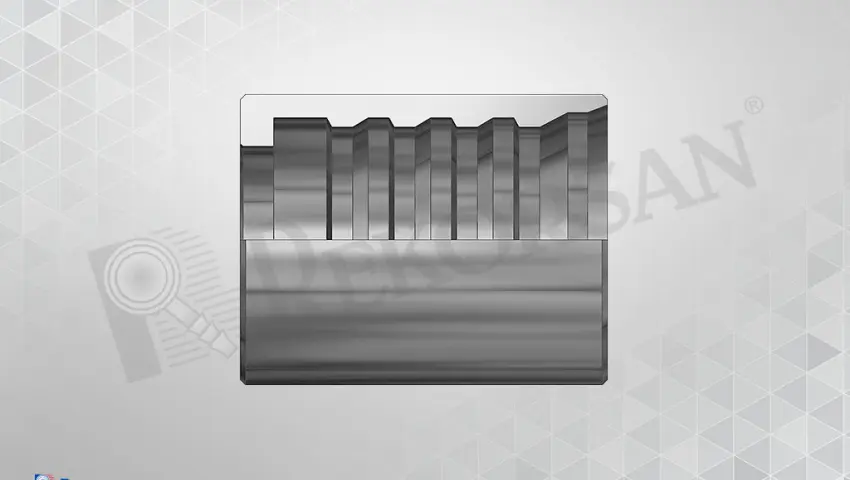

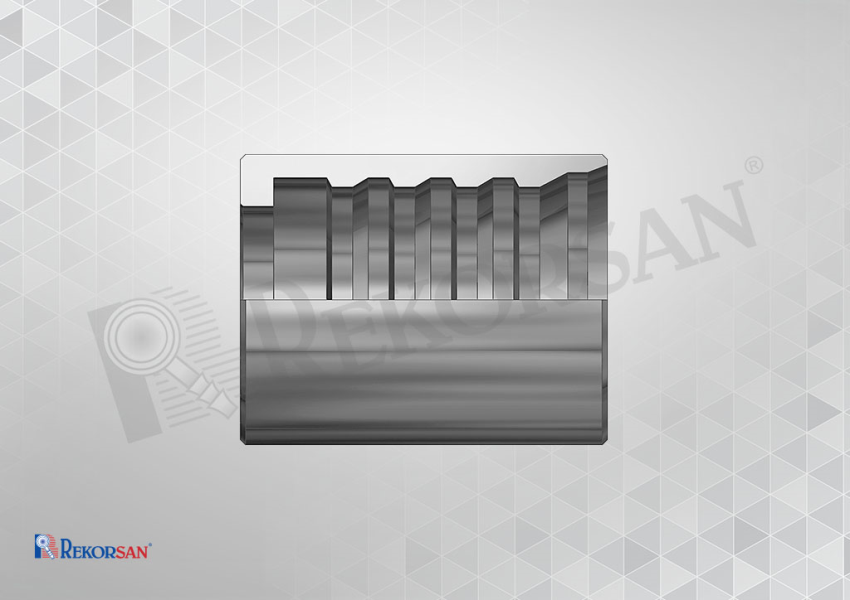

R1 - R2 ÇELİK SOKETLER
R1 - R2 ÇELİK SOKETLER

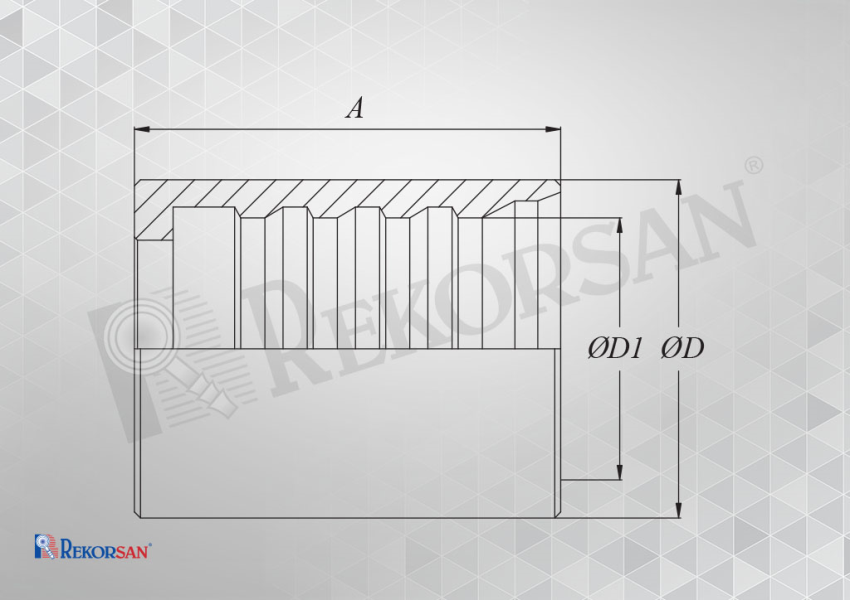

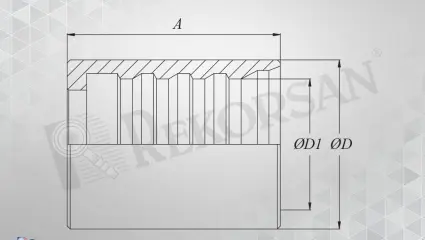

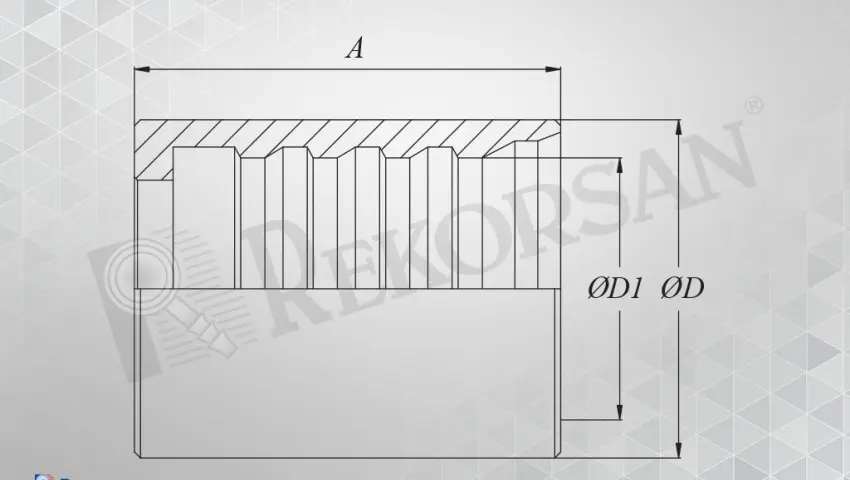

| R1 - R2 ÇELİK SOKETLER R1 - R2 STEEL SOCKETS | |||||
| MALZEME KODU MATERIAL CODE | HORTUM ÖLÇÜSÜ HOSE SIZE | A | ØD | ØD1 | |
| mm | inch | ||||
| RK-0517-ÇS | 05 | 3/16 | 25.5 | 17 | 13 |
| RK-0620-ÇS | 06 | 1/4 | 28 | 20 | 14,5 |
| RK-0822-ÇS | 08 | 5/16 | 30 | 22 | 15,5 |
| RK-1025-ÇS | 10 | 3/8 | 33 | 25 | 18,4 |
| RK-1328-ÇS | 12 | 1/2 | 35 | 28 | 21,7 |
| RK-1632-ÇS | 16 | 5/8 | 42 | 32 | 24,7 |
| RK-1936-ÇS | 19 | 3/4 | 49 | 36 | 29 |
| RK-2546-ÇS | 25 | 1" | 55 | 45 | 36,5 |
| RK-3256-ÇS | 32 | 1"1/4 | 62 | 55 | 46 |
| RK-3862-ÇS | 38 | 1"1/2 | 71.5 | 62 | 53 |
| RK-5175-ÇS | 51 | 2" | 70 | 75 | 64 |
| RK-6487-ÇS | 64 | 2"1/2 | 70 | 87.5 | 79 |
| RK-76103-ÇS | 76 | 3" | 73 | 103 | 93 |
| RK-102132-ÇS | 102 | 4" | 81 | 132 | 120.5 |
