BSPT - BSP TERS DİRSEKLER

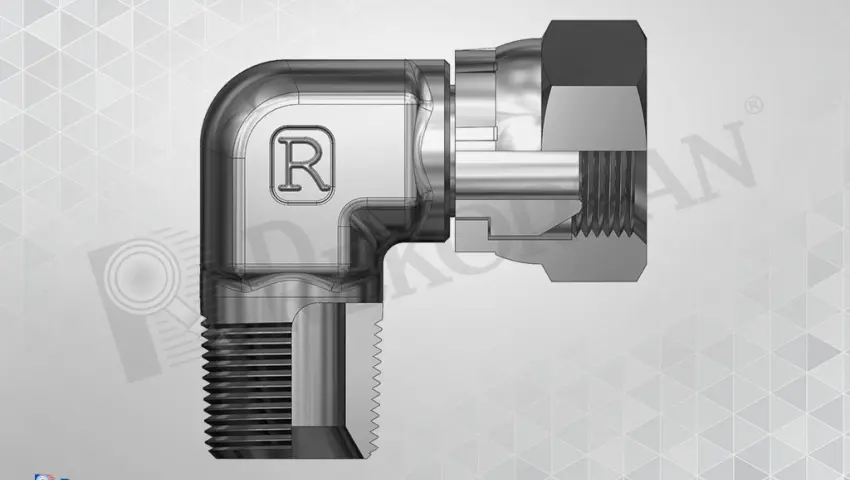

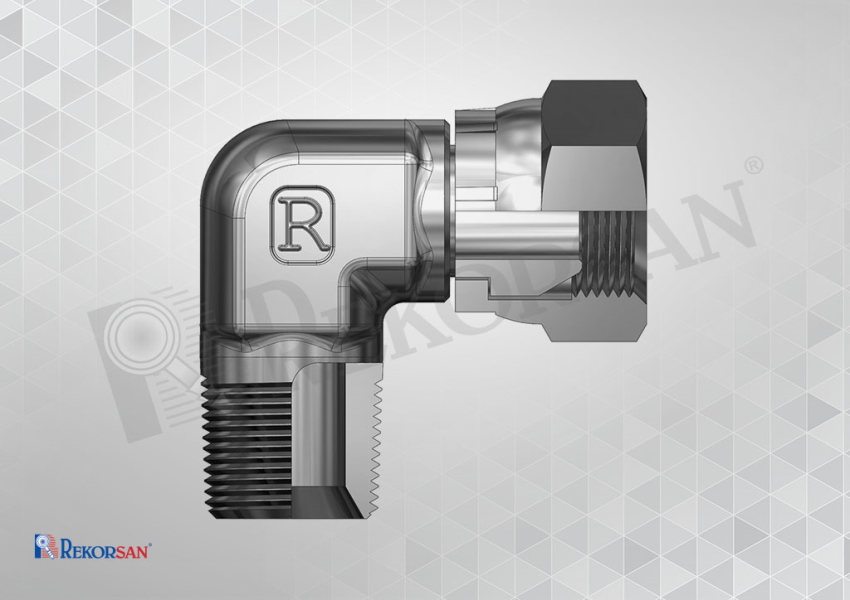

BSPT - BSP TERS DİRSEKLER MALE BSPT THREAD - BSP FEMALE SWIVEL ELBOWS

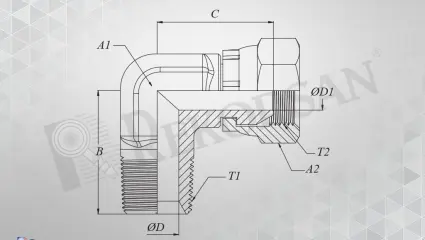

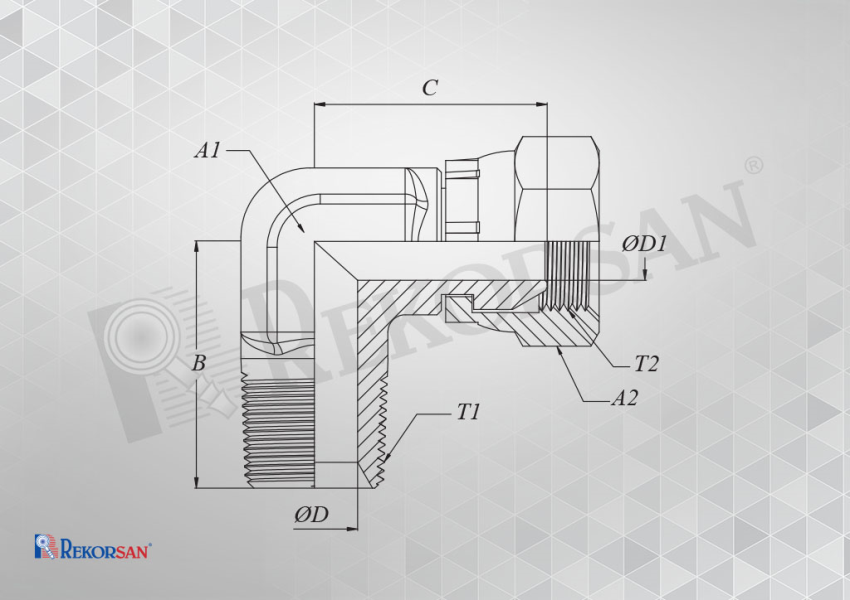

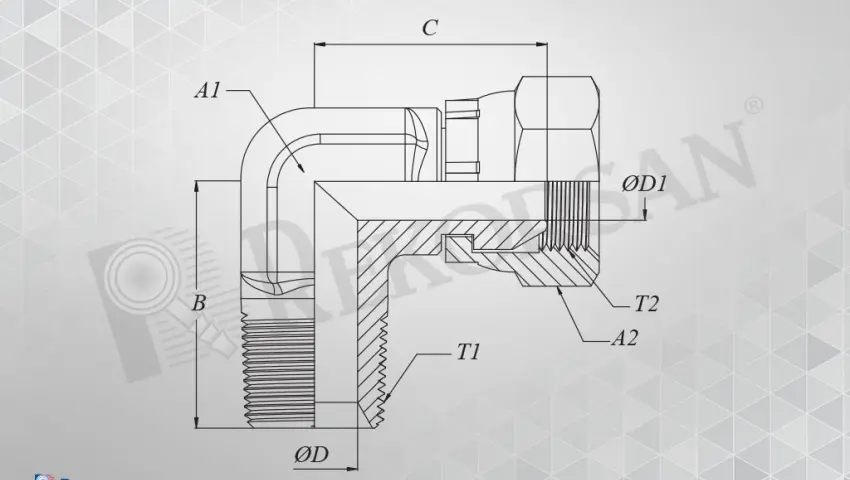

MALZEME KODU MATERIAL CODE	DİŞ ÖLÇÜSÜ THREAD SIZE T1	DİŞ ÖLÇÜSÜ THREAD SIZE T2	B	C	ØD	ØD1	A1	A2
RK-1010-RTD	1/8-28 BSPT	R1/8-28	20	20	4	4	12	14
RK-1313-RTD	1/4-19 BSPT	R1/4-19	28	23	7	5.5	14	17
RK-1717-RTD	3/8-19 BSPT	R3/8-19	28.5	25	9	8	17	22
RK-2121-RTD	1/2-14 BSPT	R1/2-14	32.5	28	12	10	19	27
RK-2626-RTD	3/4-14 BSPT	R3/4-14	42	37.5	15	15	27	32
RK-3333-RTD	1"-11 BSPT	R1"-11	45.5	43	20	20	36	41
RK-4242-RTD	1"1/4-11 BSPT	R1"1/4-11	50	49.5	26	26	41	50
RK-4848-RTD	1"1/2-11 BSPT	R1"1/2-11	60	58	31	31	50	55
RK-6060-RTD	2"-11 BSPT	R2"-11	77.5	78	44	44	60	70
