BSPT - BSP KUYRUKLU DİRSEK
BSPT - BSP KUYRUKLU DİRSEK

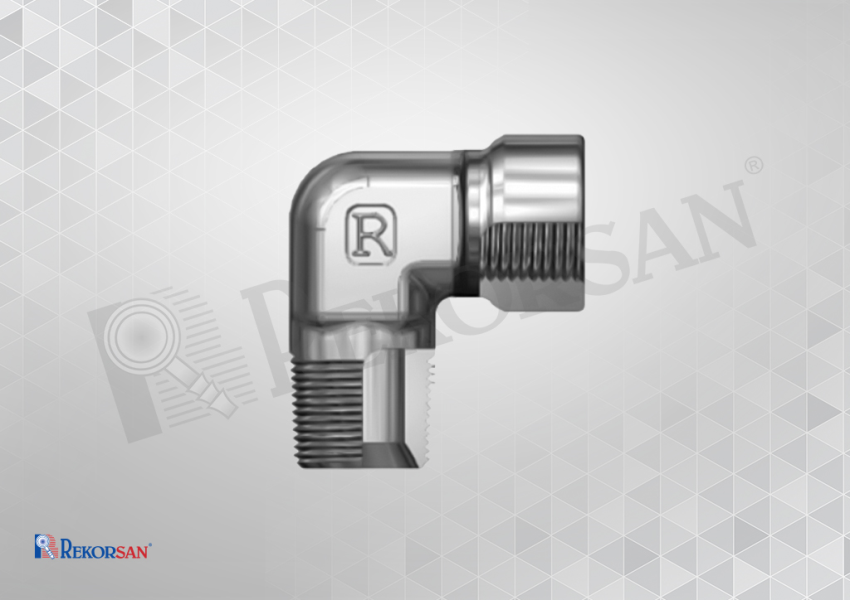

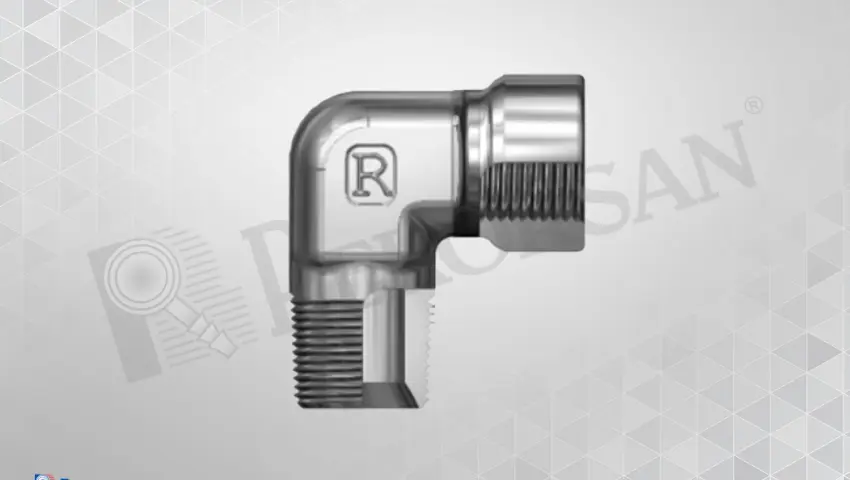

| BSPT- BSP KUYRUKLU DİRSEK MALE BSPT THREAD - FEMALE BSP THREAD ELBOW | |||||||

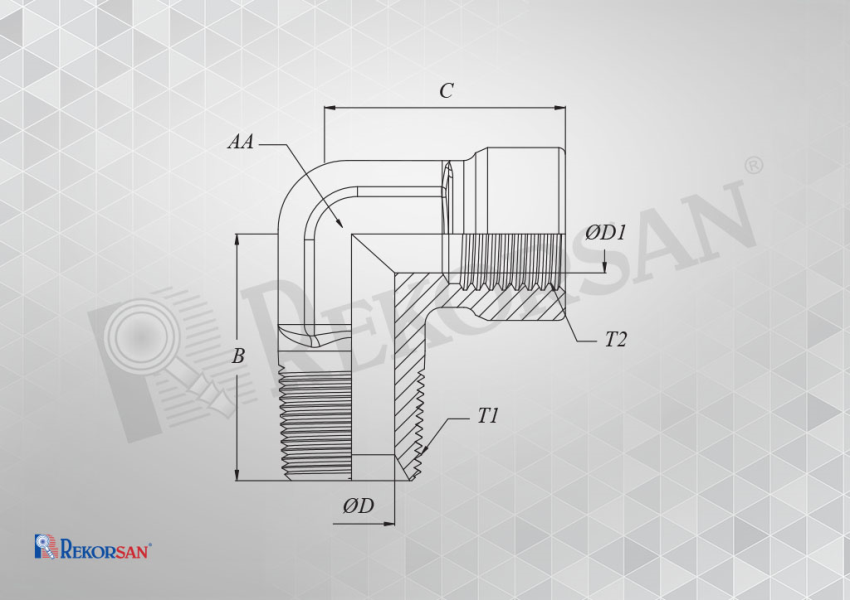

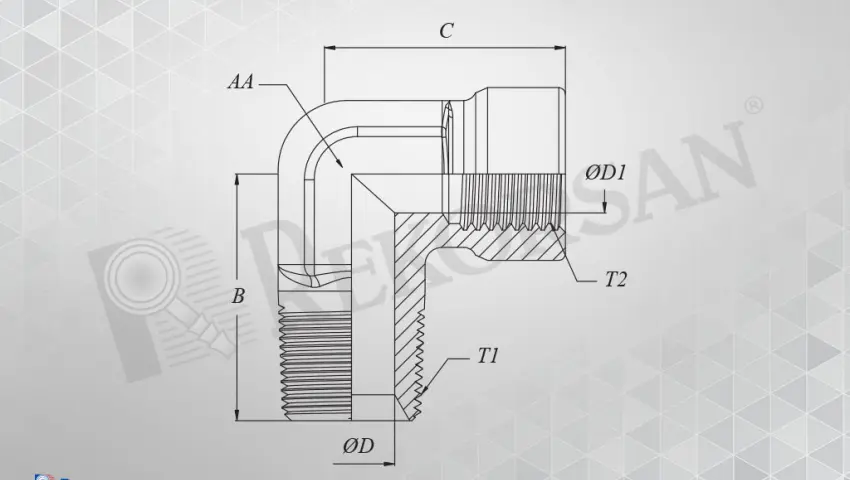

| MALZEME KODU MATERIAL CODE | DİŞ ÖLÇÜSÜ THREAD SIZE T1 | DİŞ ÖLÇÜSÜ THREAD SIZE T2 | B | C | ØD | ØD1 | AA |
| RK-1010-KD | 1/8-28 BSPT | R1/8-28 | 22.5 | 22.5 | 4 | 7 | 14 |
| RK-1313-KD | 1/4-19 BSPT | R1/4-19 | 30 | 29 | 7 | 9 | 17 |
| RK-1717-KD | 3/8-19 BSPT | R3/8-19 | 34 | 33 | 9 | 11 | 24 |
| RK-2121-KD | 1/2-14 BSPT | R1/2-14 | 38 | 37 | 12 | 15 | 27 |
| RK-2626-KD | 3/4-14 BSPT | R3/4-14 | 42.5 | 41.5 | 15 | 15.5 | 36 |
| RK-3333-KD | 1"-11 BSPT | R1"-11 | 50 | 49.5 | 20 | 25 | 41 |
| RK-4242-KD | 1"1/4-11 BSPT | R1"1/4-11 | 61 | 57 | 26 | 29 | 50 |
| RK-4848-KD | 1"1/2-11 BSPT | R1"1/2-11 | 78 | 77 | 33 | 40 | 60 |
