BSPT - BSP DİRSEKLER
BSPT - BSP DİRSEKLER

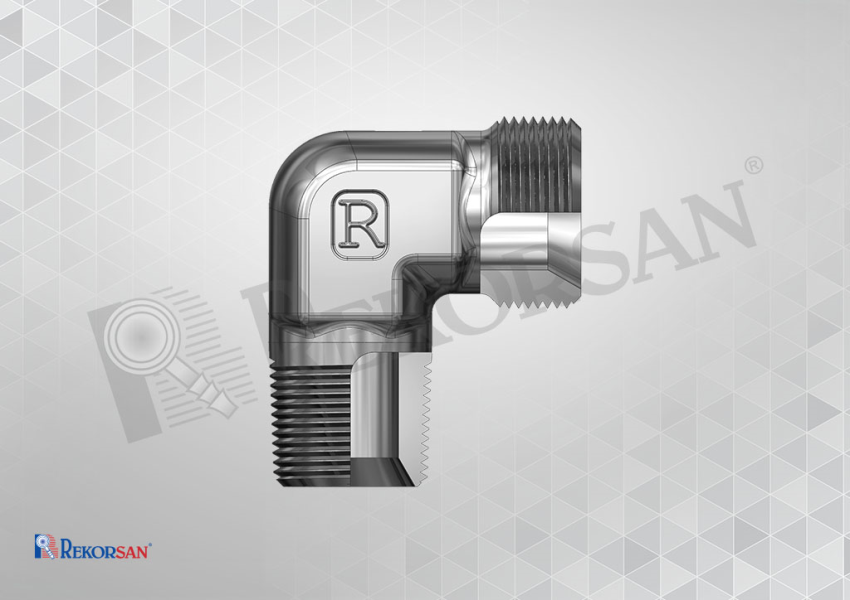

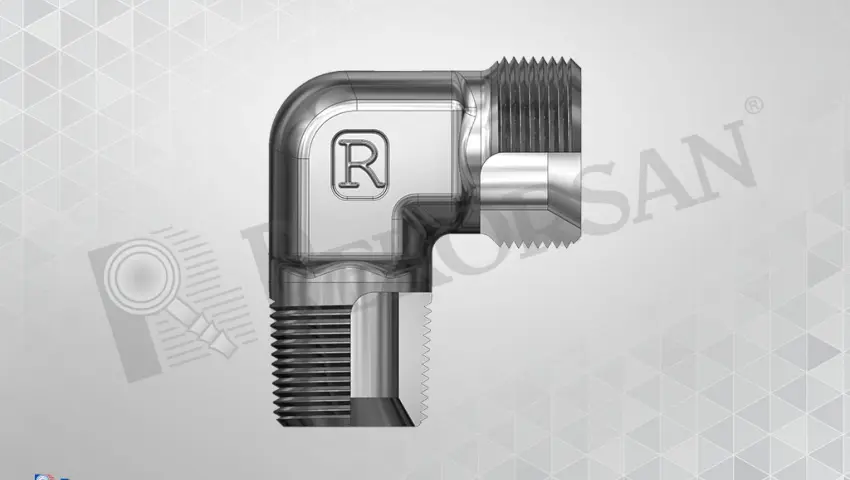

| BSPT - BSP DİRSEKLER BSP 60° CONE END - MALE BSPTTHREAD ELBOWS | |||||||

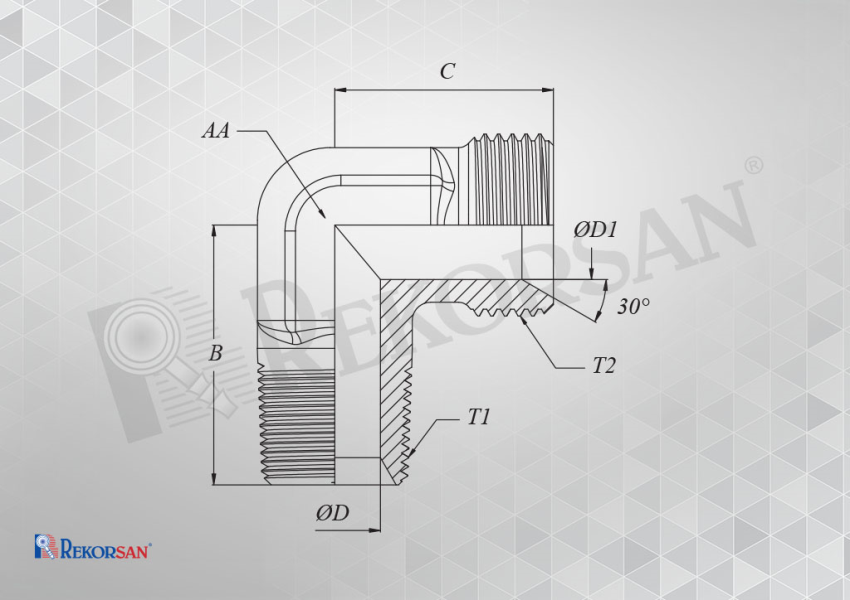

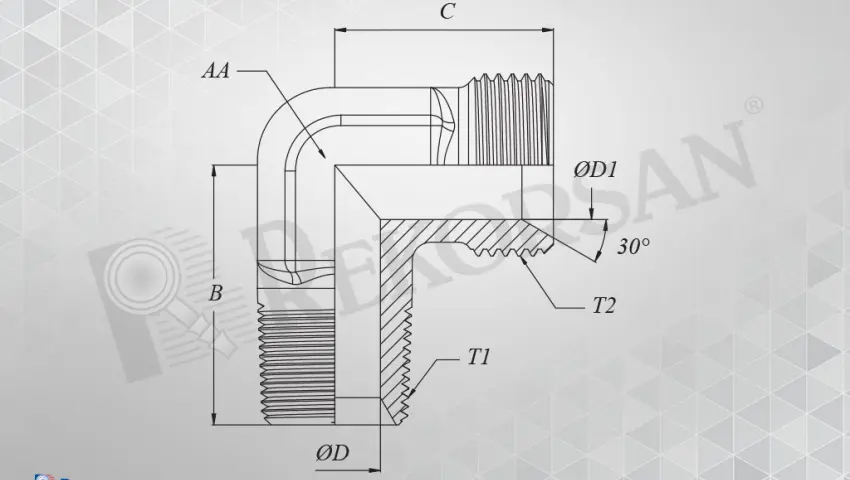

| MALZEME KODU MATERIAL CODE | DİŞ ÖLÇÜSÜ THREAD SIZE T1 | DİŞ ÖLÇÜSÜ THREAD SIZE T2 | B | C | ØD | ØD1 | AA |
| RK-1010-NRD | 1/8-28 BSPT | R1/8-28 | 20 | 20 | 4 | 4 | 12 |
| RK-1313-NRD | 1/4-19 BSPT | R1/4-19 | 28 | 22.5 | 7 | 7 | 14 |
| RK-1717-NRD | 3/8-19 BSPT | R3/8-19 | 28.5 | 24.5 | 9 | 9 | 17 |
| RK-2121-NRD | 1/2-14 BSPT | R1/2-14 | 32.5 | 28 | 12 | 12 | 19 |
| RK-2626-NRD | 3/4-14 BSPT | R3/4-14 | 42 | 37 | 15 | 15 | 27 |
| RK-3333-NRD | 1"-11 BSPT | R1"-11 | 45.5 | 42.5 | 20 | 20 | 36 |
| RK-4242-NRD | 1"1/4-11 BSPT | R1"1/4-11 | 50 | 49 | 26 | 26 | 41 |
| RK-4848-NRD | 1"1/2-11 BSPT | R1"1/2-11 | 60 | 57 | 31 | 31 | 50 |
