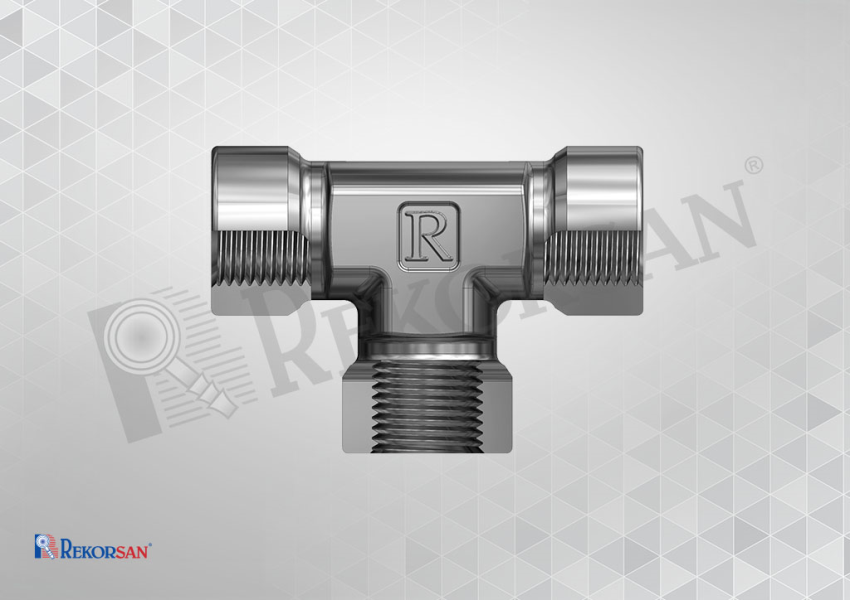

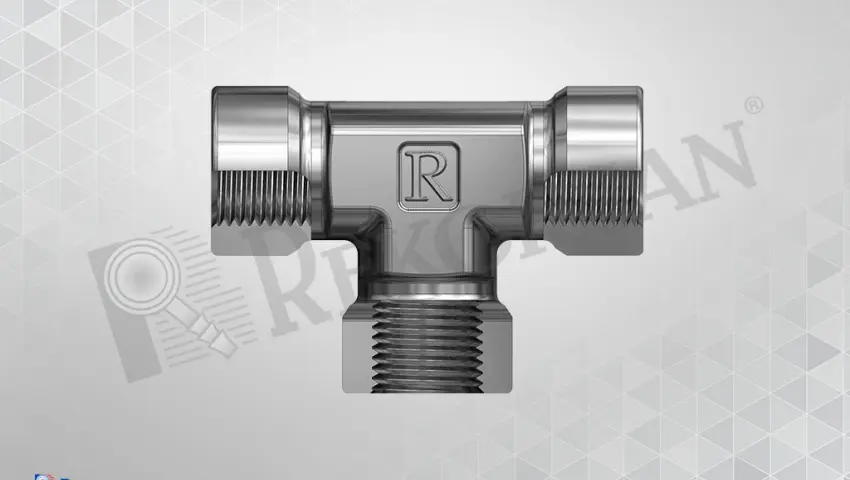

BSP DİŞİ TE
BSP DİŞİ TE

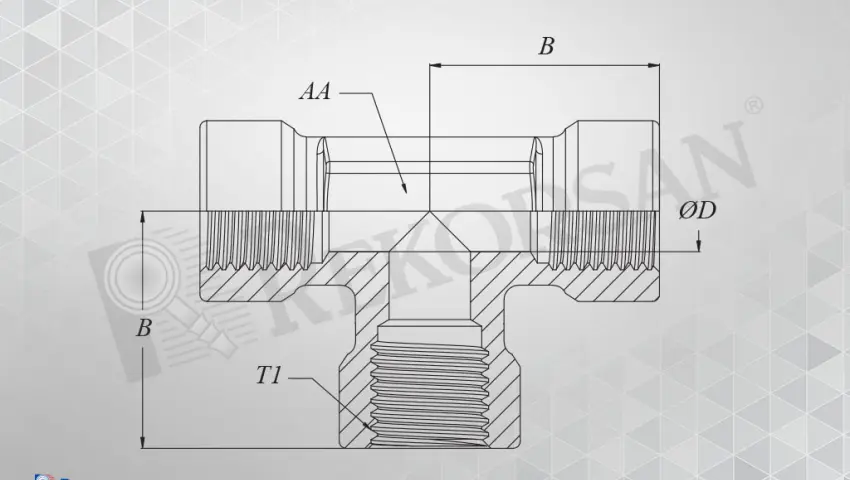

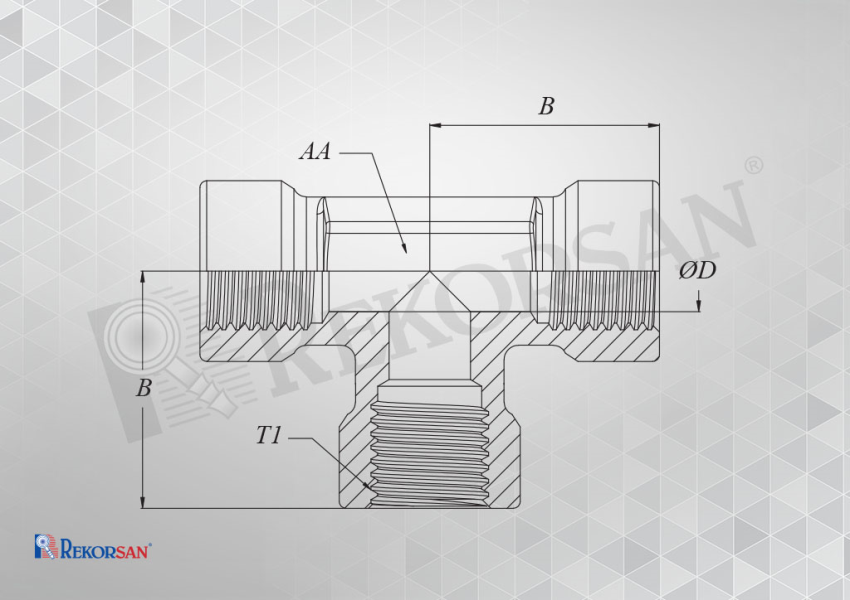

| BSP DİŞİ TE BSP FEMALE THREAD TEE | ||||
| MALZEME KODU MATERIAL CODE | DİŞ ÖLÇÜSÜ THREAD SIZE T1 | B | ØD | AA |
| RK-1010-DT | R1/8-28 | 22 | 8.5 | 14 |
| RK-1313-DT | R1/4-19 | 22 | 11 | 19 |
| RK-1717-DT | R3/8-19 | 26 | 14 | 22 |
| RK-2121-DT | R1/2-14 | 31 | 16 | 27 |
| RK-2626-DT | R3/4-14 | 40 | 20 | 33 |
| RK-3333-DT | R1"-11 | 46 | 25 | 41 |
| RK-4242-DT | R1"1/4-11 | 57 | 29 | 50 |
